ERM3 Series ballasts for series drives

ERM3 Series ballasts for series drives

ERM3 Series ballasts for series drives

Certifications:

In stock















Reactor TypeThree phase inverter output reactor
DescriptionMotor Drive Output Reactors are used at the output of motor drives to make the PWM output waveshape of the motor drives smoother.
This way the motor is supplied with a cleaner and smoother sinusoidal wave.
Inductance (mH)4,33±5% to 0,05±5%
Nominal Current4A to 350A
Nominal Voltage480VAC
Frequency (Hz)60
Isolation Classta 40°C/F
Ripple4800Hz'de 0,8A to 4800Hz'de 70A
Winding MaterialAluminium round wire / Aluminium flat wire /Aluminium foil
Connection TypeBar / Terminal block / DIN rail block
Enviromental ClassC1/E0/F0
IP ClassIP00
Dimensions (mm)101,5 x 120 x 98 to 225 x 300 x 227
Weight1,4 kg a 36,4 kg

Downloads

Elektra - Manuales y Fichas Técnicas
7z
Fichas técnicas reactancias trifásicas
(Size: 1.3 MB)



sku Summary Unit Price Qty

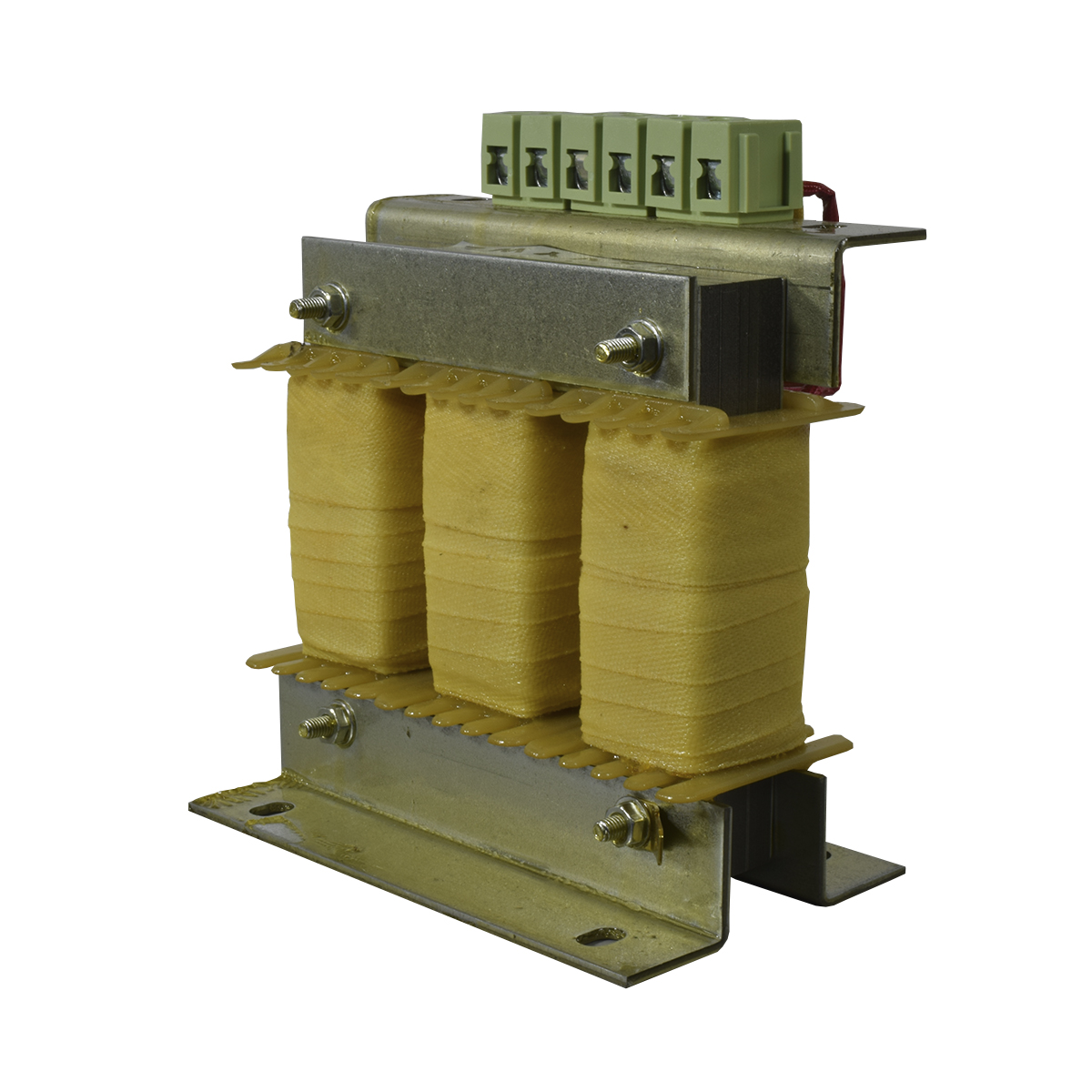

ERM3-E60-480/4/2.5

ERM3-E60-480/4/2.5
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 4A
Inductance (mH): 4,33±5%
Dimensions: 101,5 x 120 x 98 mm

 COP749,700
Sin Stock

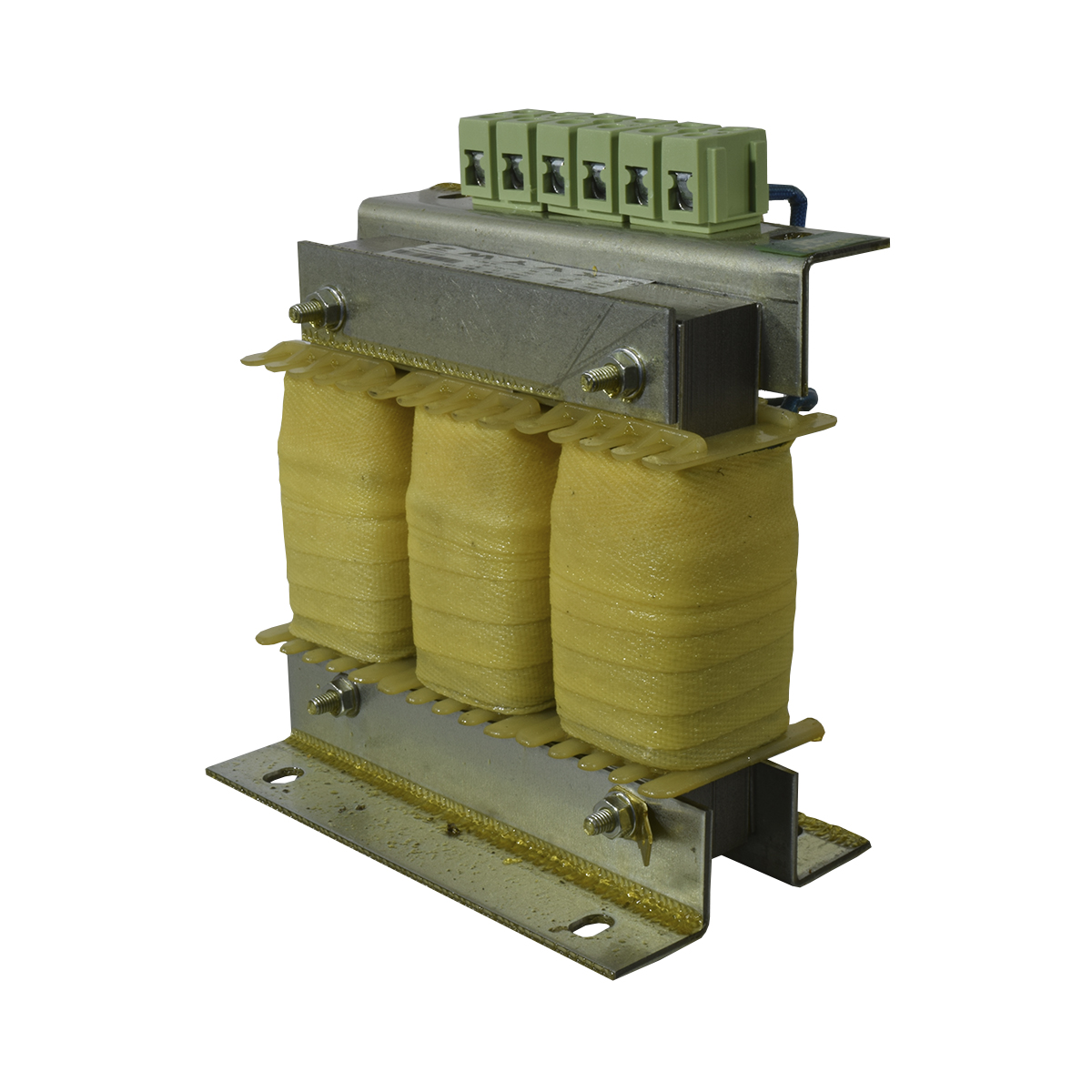

ERM3-E60-480/10/4

ERM3-E60-480/10/4
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 10A
Inductance (mH): 1,73±5%
Dimensions: 121 x 120 x 82 mm

 COP754,698
Sin Stock

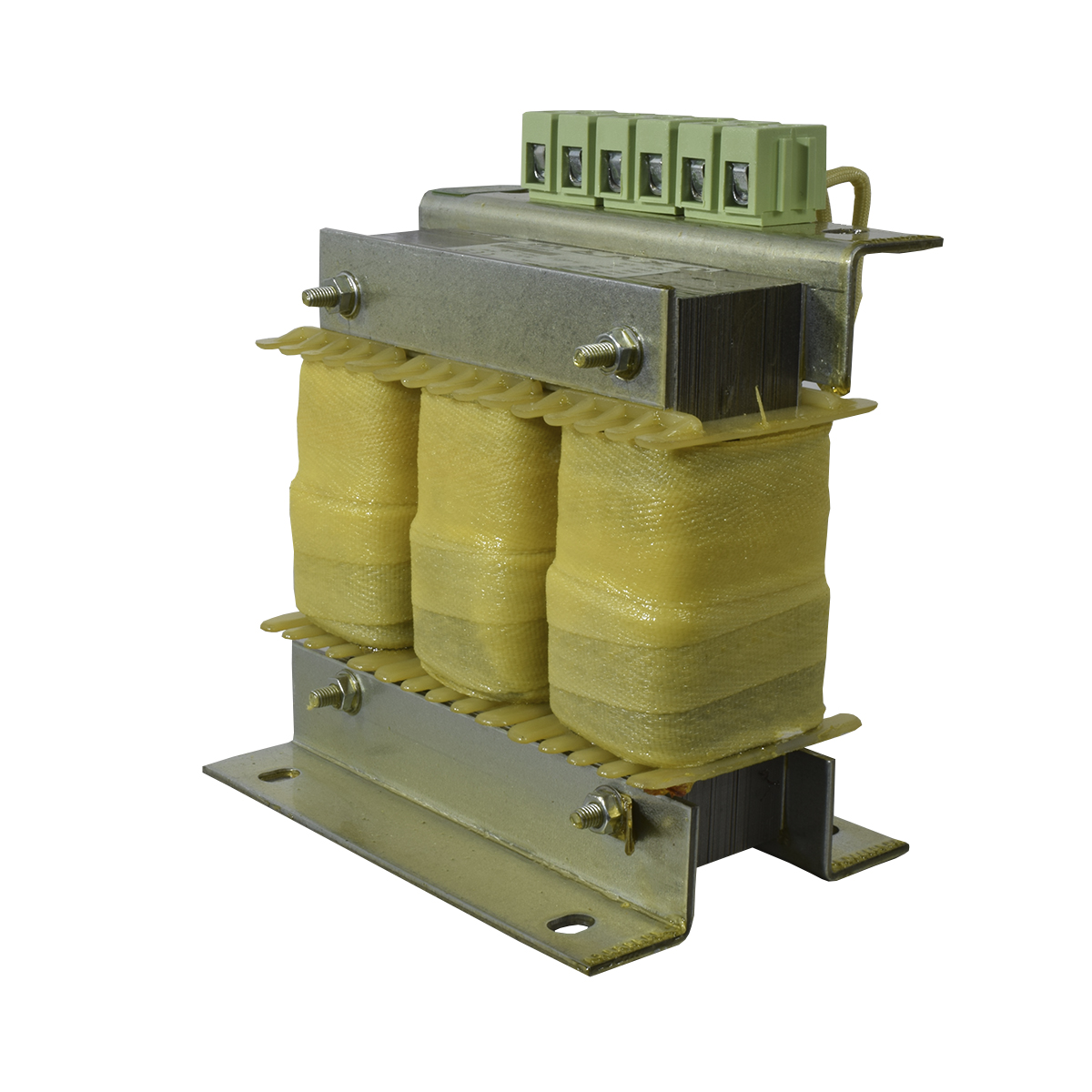

ERM3-E60-480/12/5.5

ERM3-E60-480/12/5.5
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 12A
Inductance (mH): 1,44±5%
Dimensions: 121 x 120 x 92 mm

 COP693,508
Sin Stock

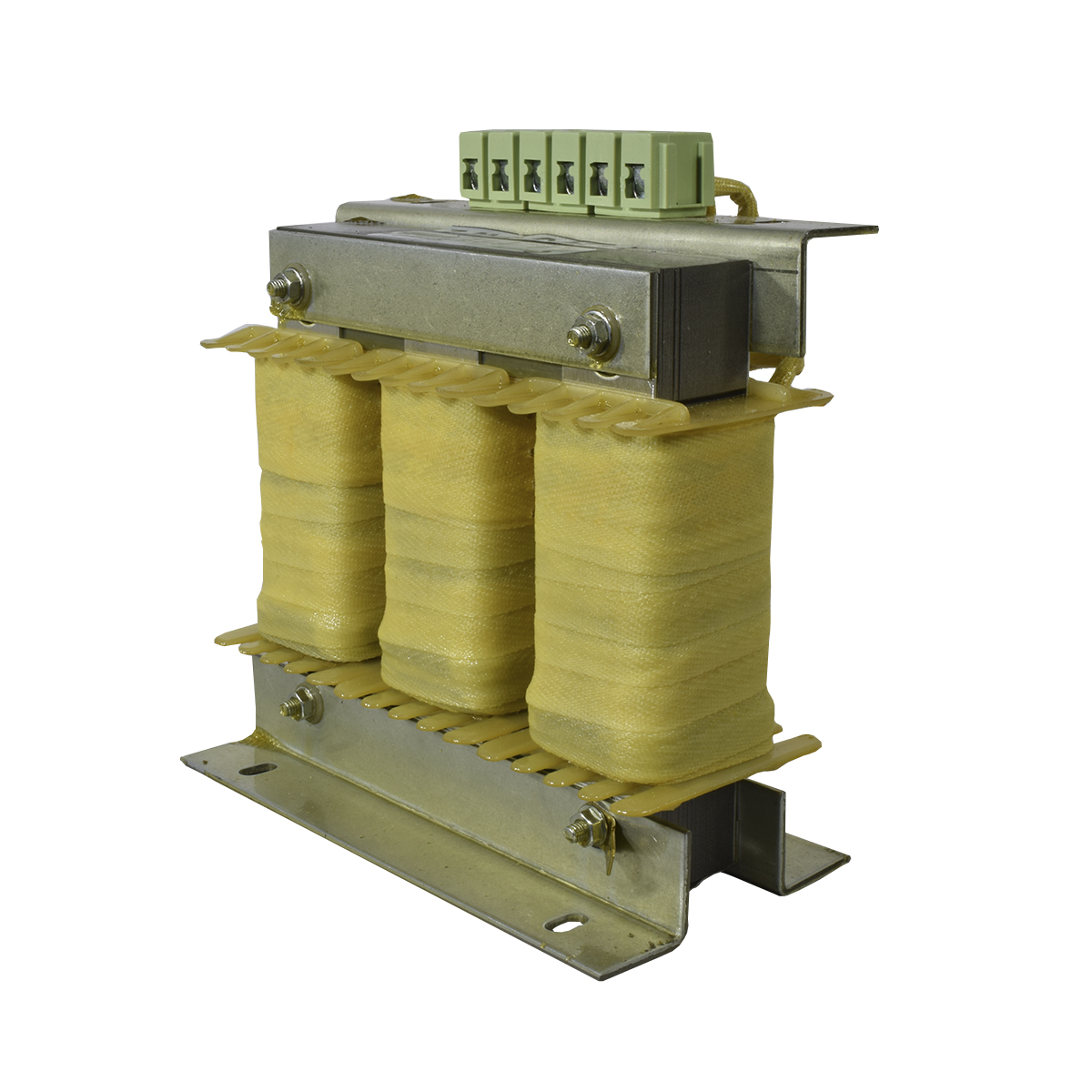

ERM3-E60-480/16/7.5

ERM3-E60-480/16/7.5
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 16A
Inductance (mH): 1,08±5%
Dimensions: 148 x 150 x 93 mm

 COP780,688
Sin Stock

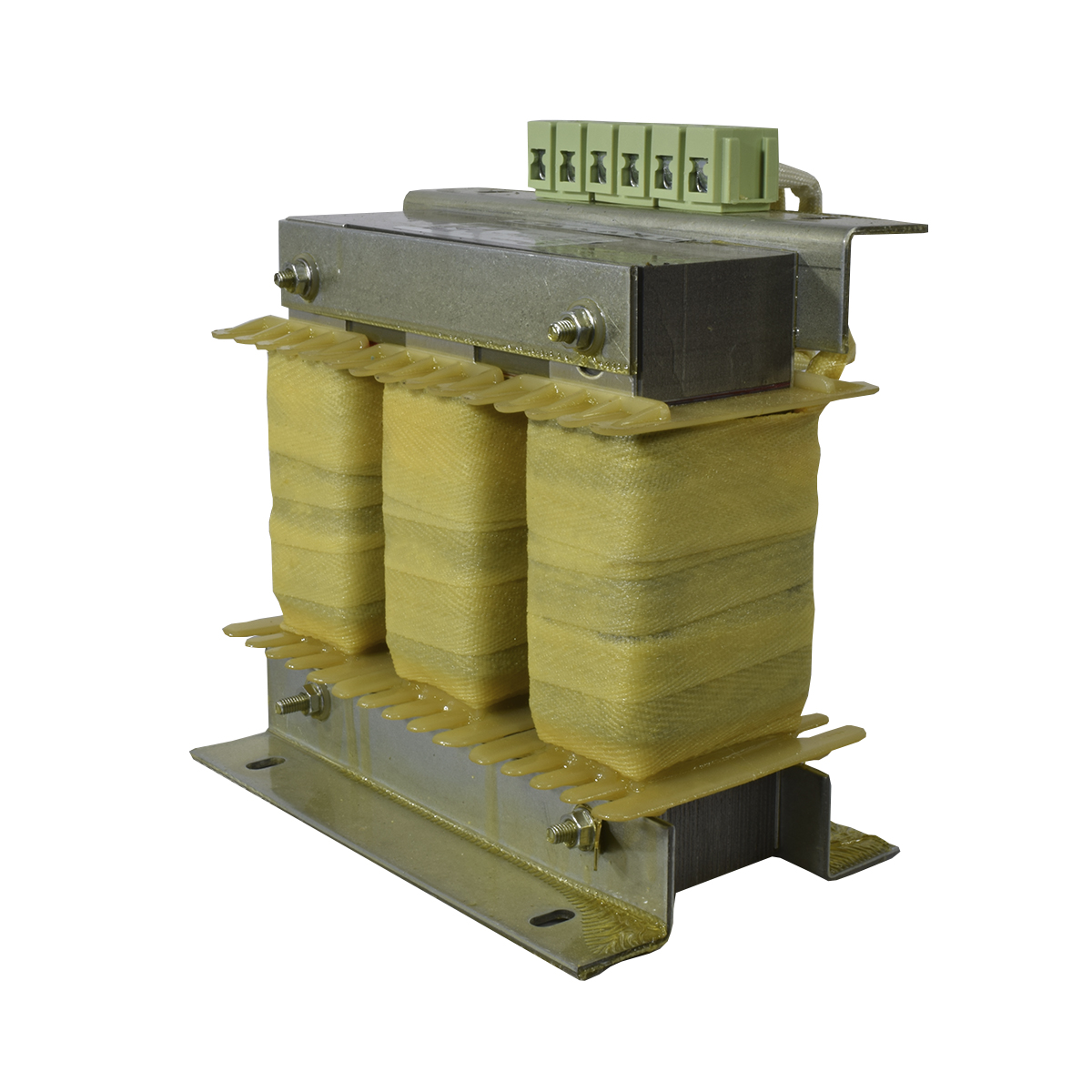

ERM3-E60-480/20/10

ERM3-E60-480/20/10
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 20A
Inductance (mH): 0,87±5%
Dimensions: 148 x 150 x 108 mm

 COP1,150,611
Sin Stock

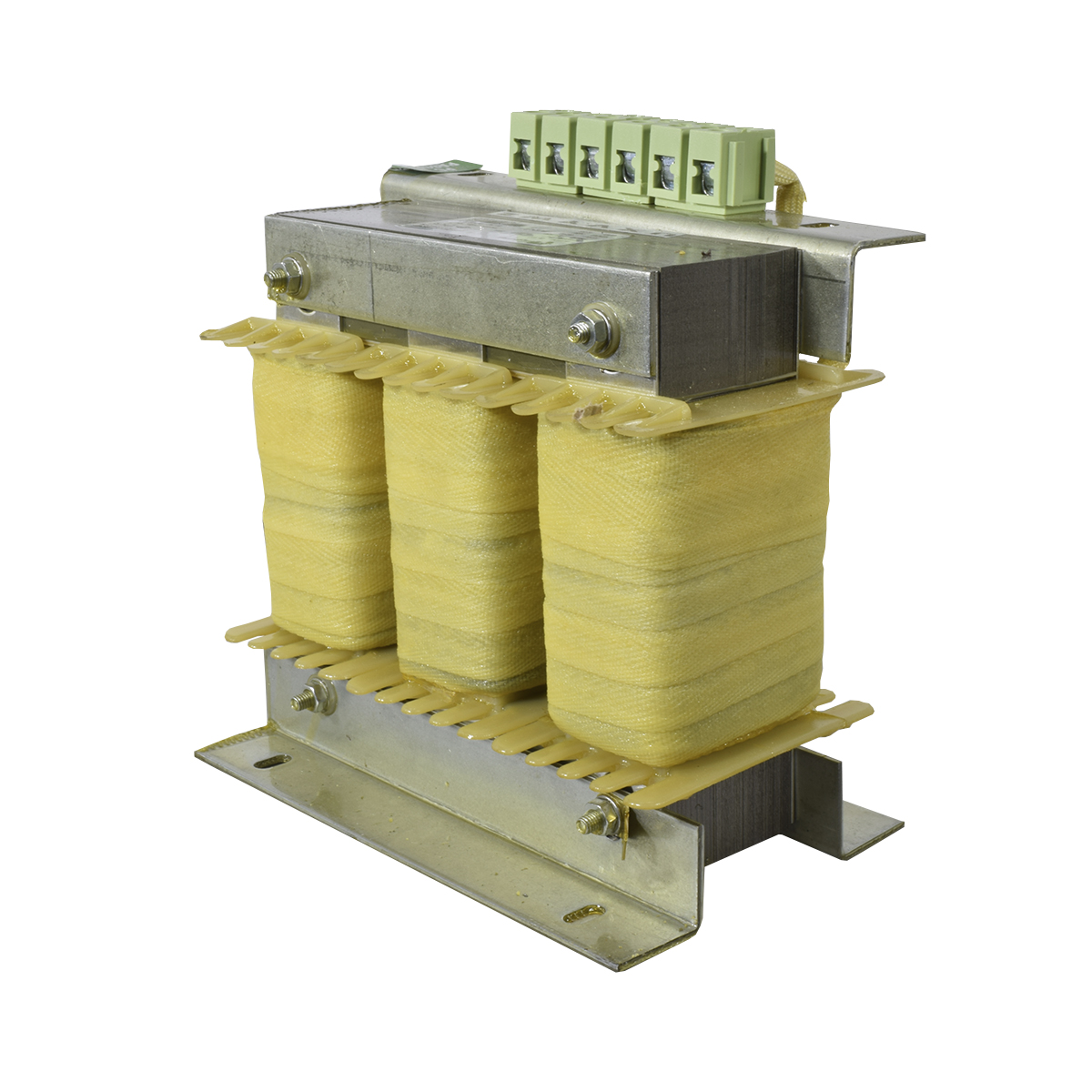

ERM3-E60-480/24/11

ERM3-E60-480/24/11
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 24A
Inductance (mH): 0,72±5%
Dimensions: 151,5 x 150 x 108 mm

 COP1,135,260
Sin Stock

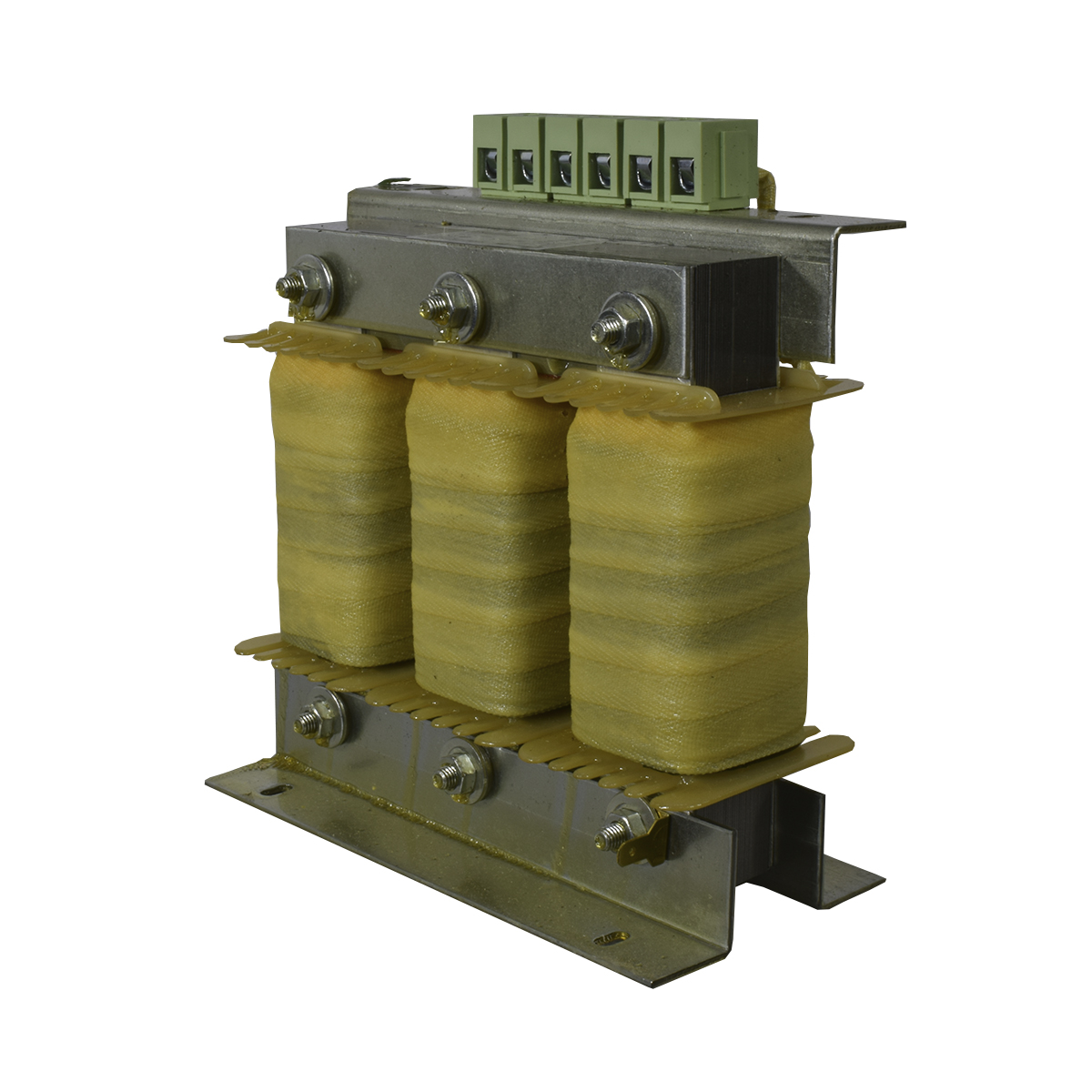

ERM3-E60-480/30/15

ERM3-E60-480/30/15
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 30A
Inductance (mH): 0,58±5%
Dimensions: 181,5 x 180 x 108 mm

 COP1,145,256
Sin Stock

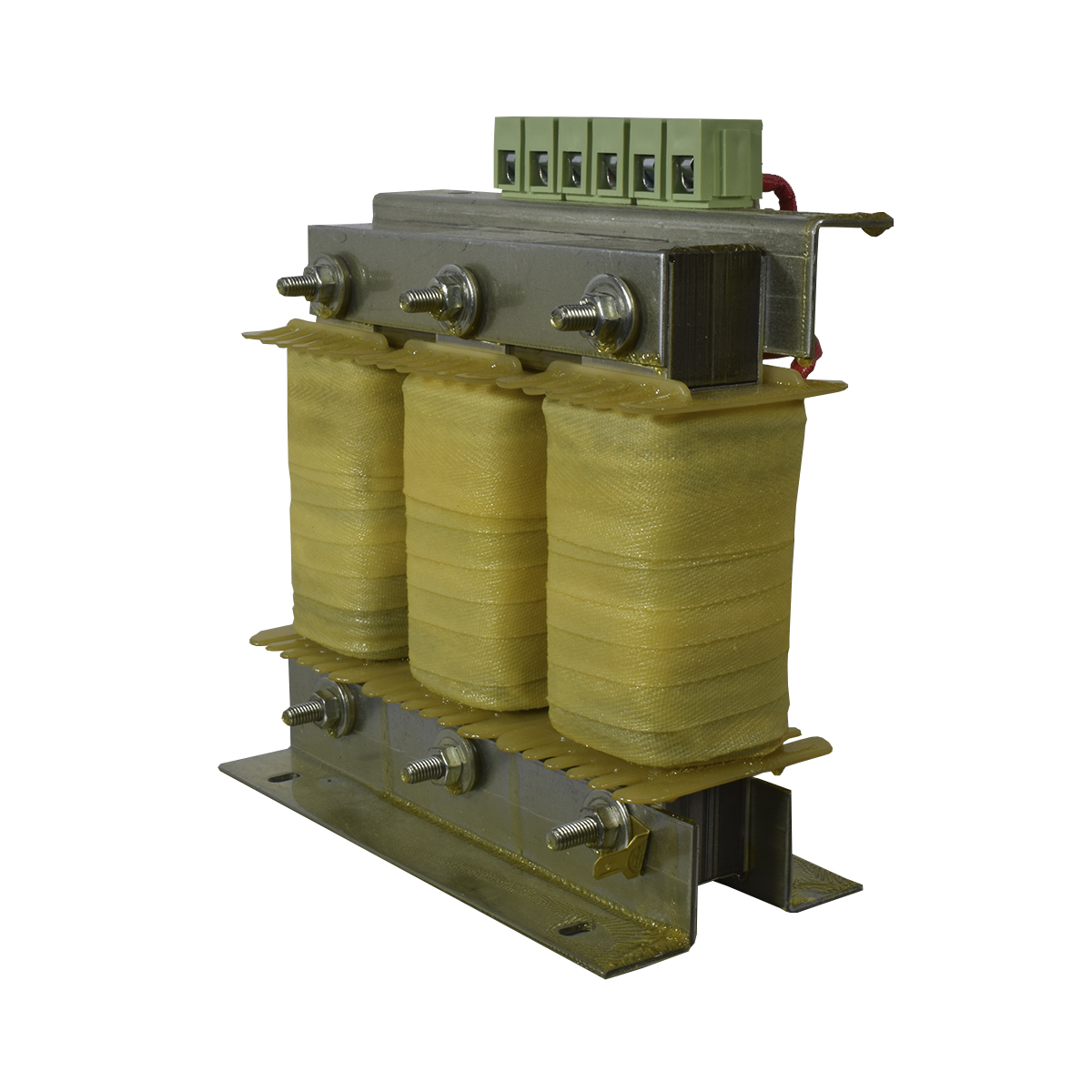

ERM3-E60-480/37/18.5

ERM3-E60-480/37/18.5
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 37A
Inductance (mH): 0,47±5%
Dimensions: 181,5 x 180 x 108 mm

 COP1,030,445
Sin Stock

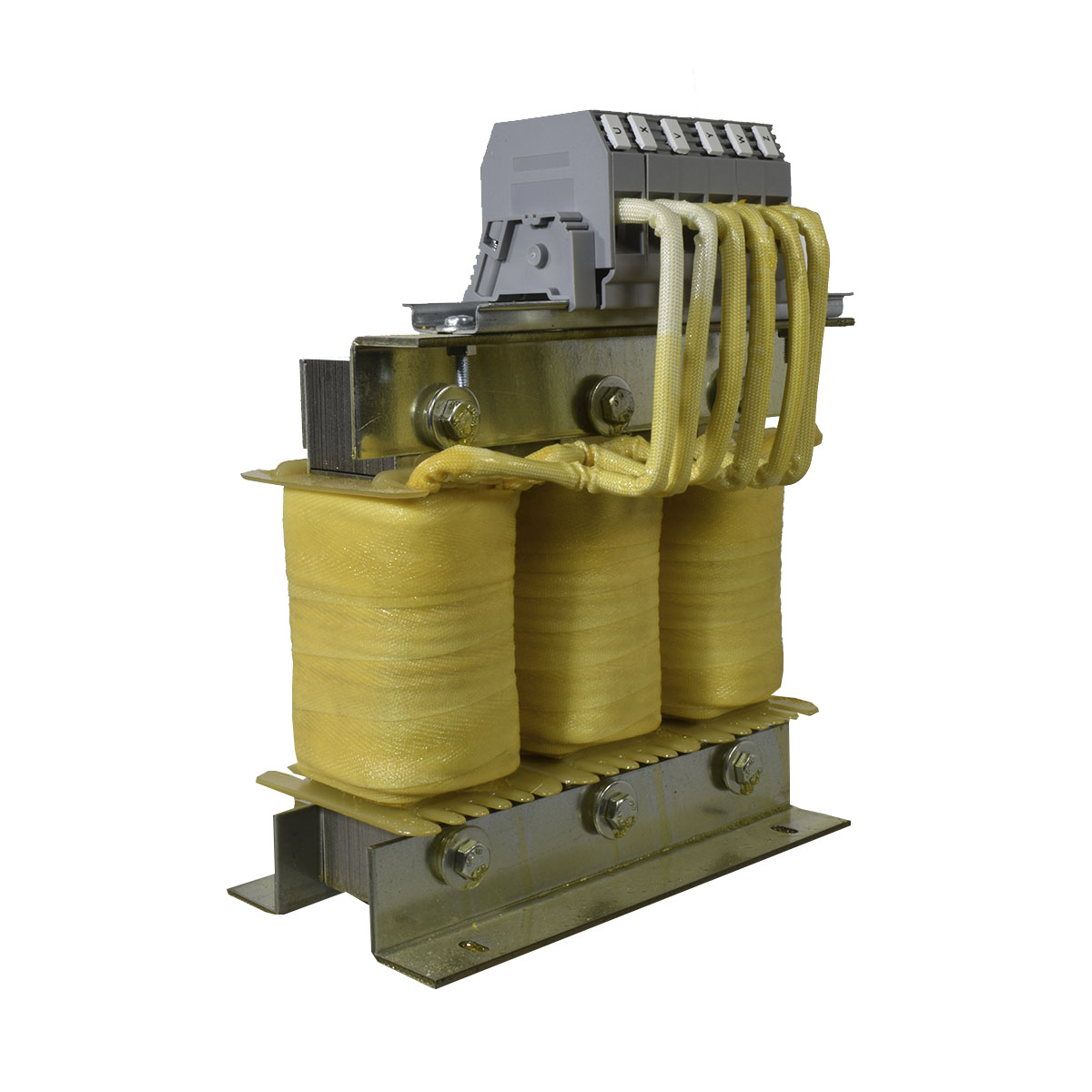

ERM3-E60-480/50/22

ERM3-E60-480/50/22
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 50A
Inductance (mH): 0,35±5%
Dimensions: 213 x 180 x 117 mm

 COP1,452,205
Sin Stock

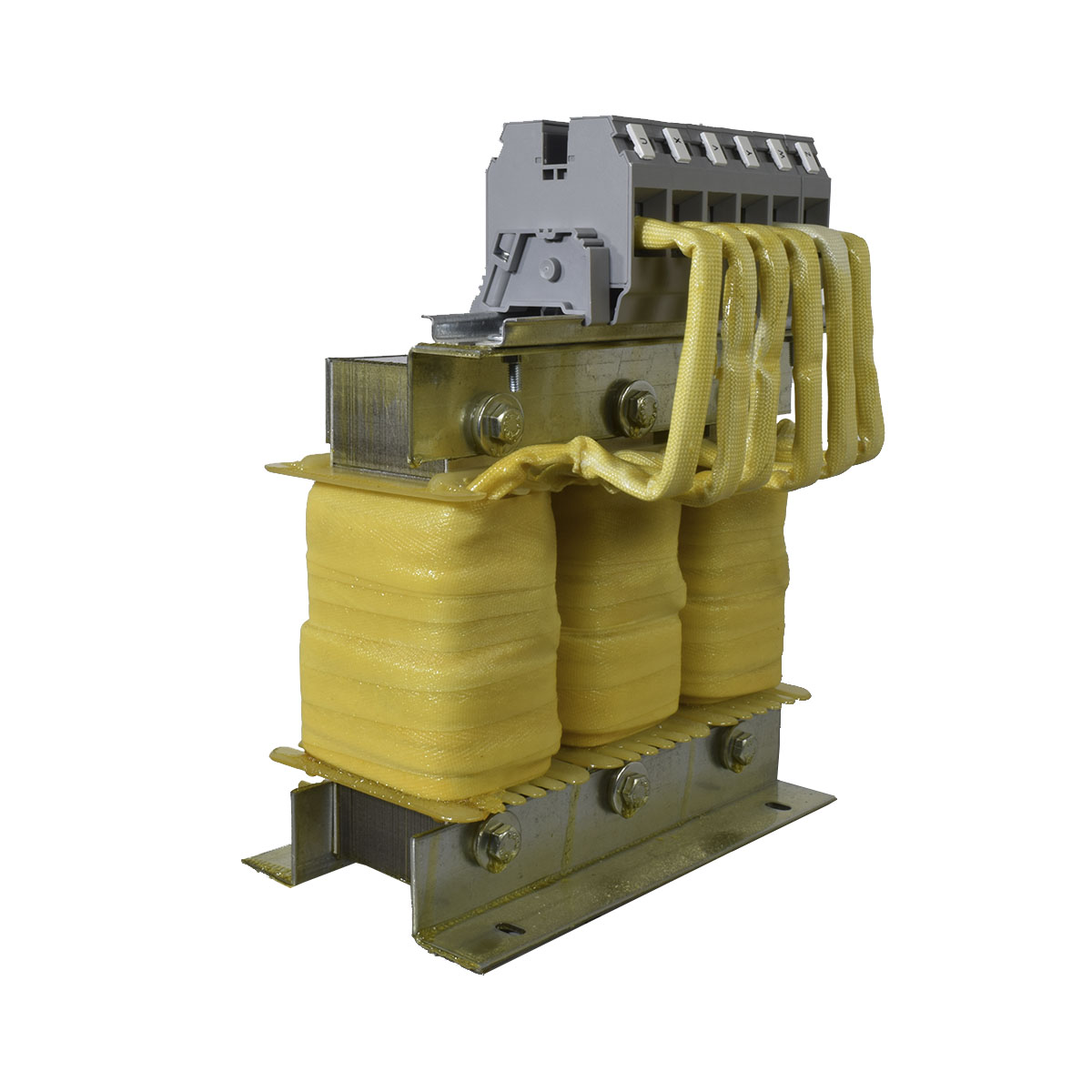

ERM3-E60-480/60/30

ERM3-E60-480/60/30
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 60A
Inductance (mH): 0,29±5%
Dimensions: 160 x 180 x 127 mm

 COP1,463,700
Sin Stock

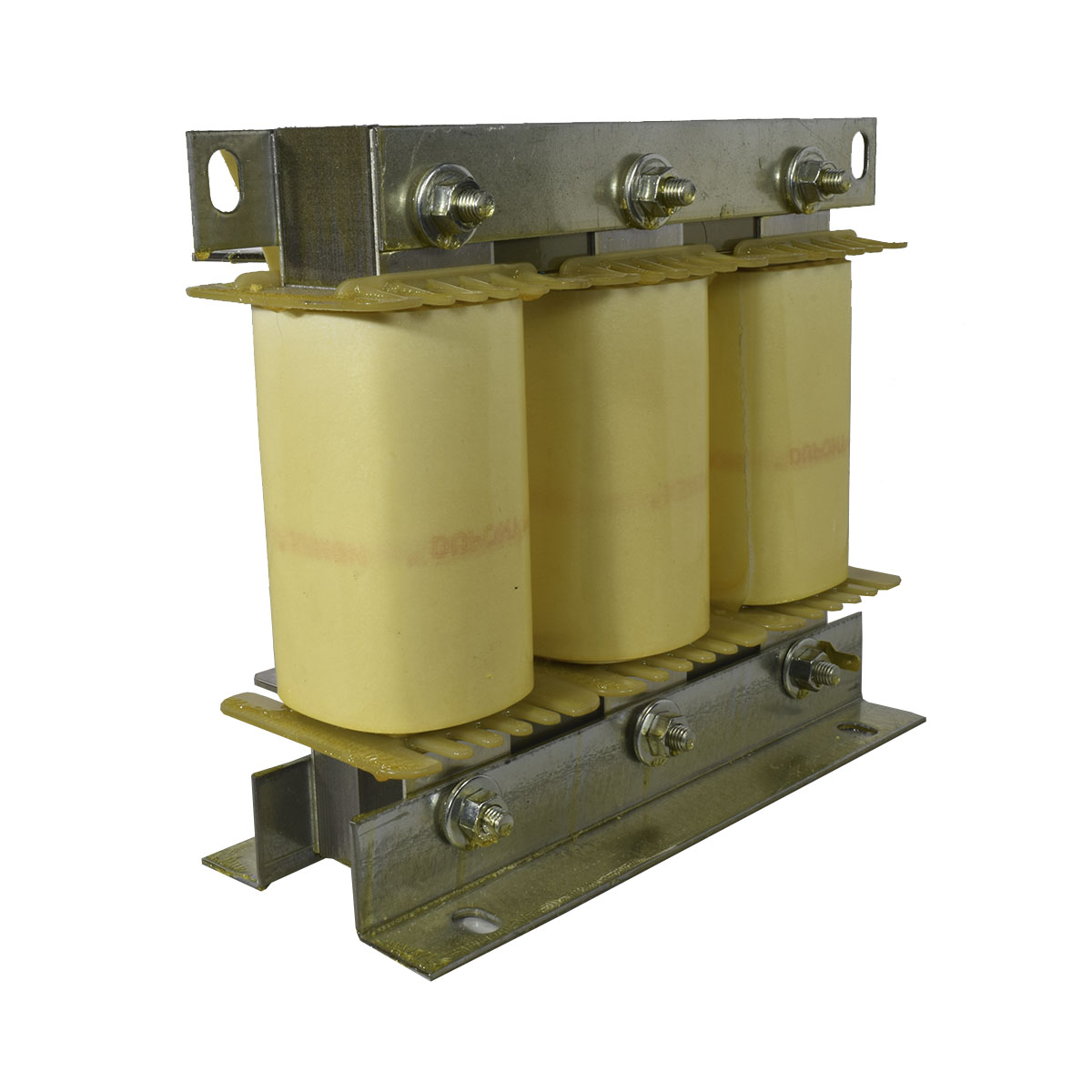

ERM3-E60-480/75/37

ERM3-E60-480/75/37
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 75A
Inductance (mH): 0,23±5%
Dimensions: 205 x 240 x 129 mm

 COP1,627,920
Sin Stock

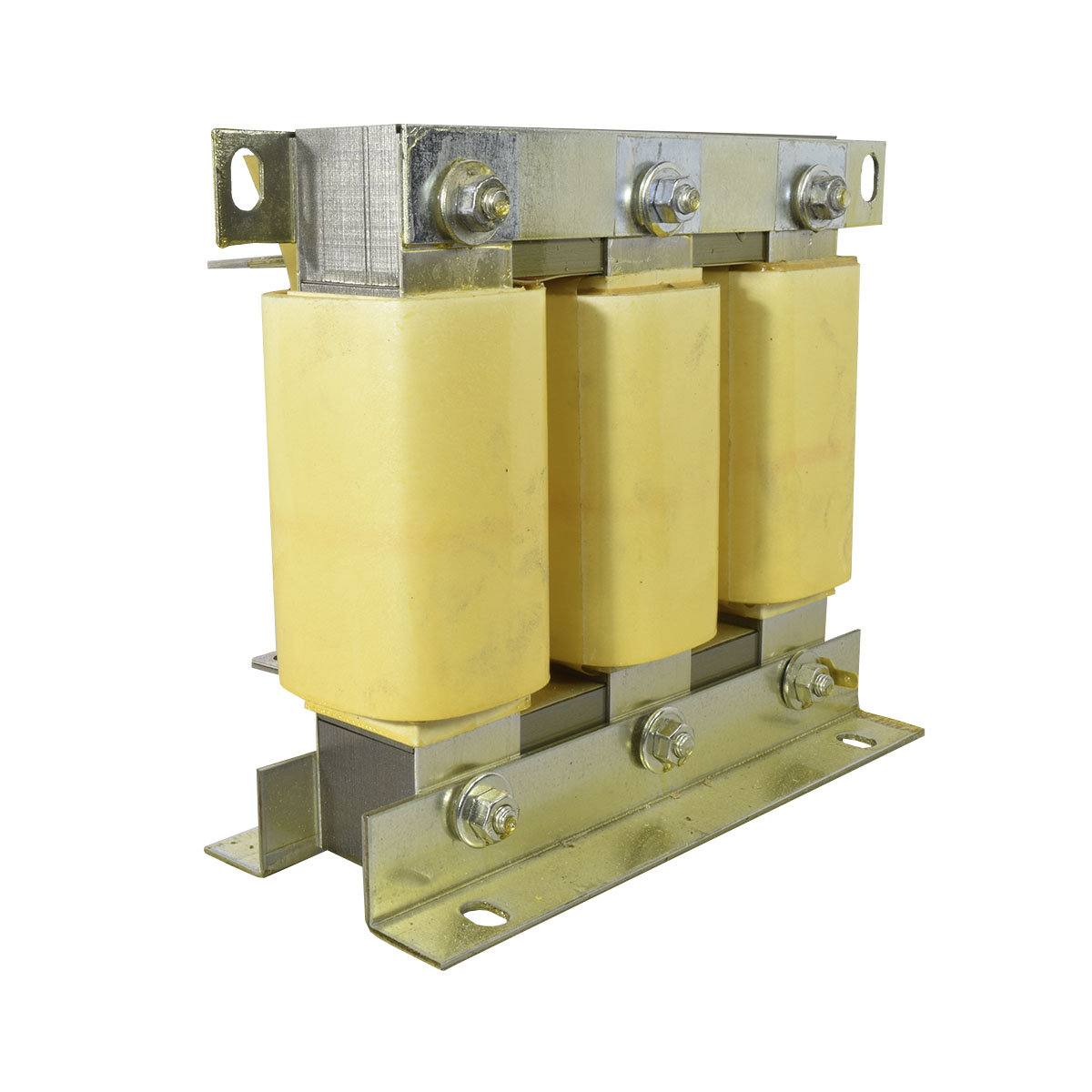

ERM3-E60-480/90/45

ERM3-E60-480/90/45
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 90A
Inductance (mH): 0,19±5%
Dimensions: 205 x 240 x 130 mm

 COP2,099,160
Sin Stock

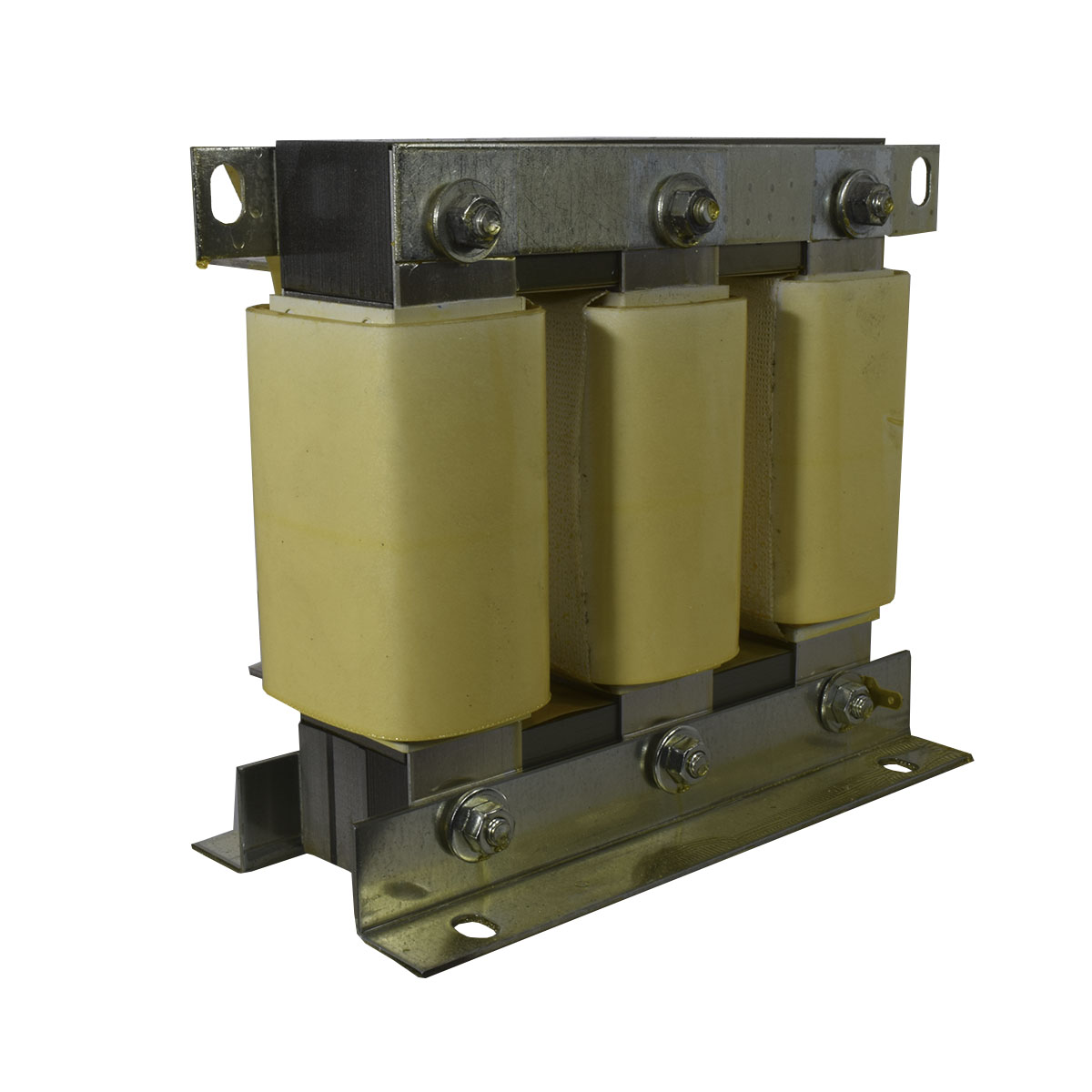

ERM3-E60-480/110/55

ERM3-E60-480/110/55
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 110A
Inductance (mH): 0,16±5%
Dimensions: 205 x 240 x 140 mm

 COP2,070,600
Sin Stock

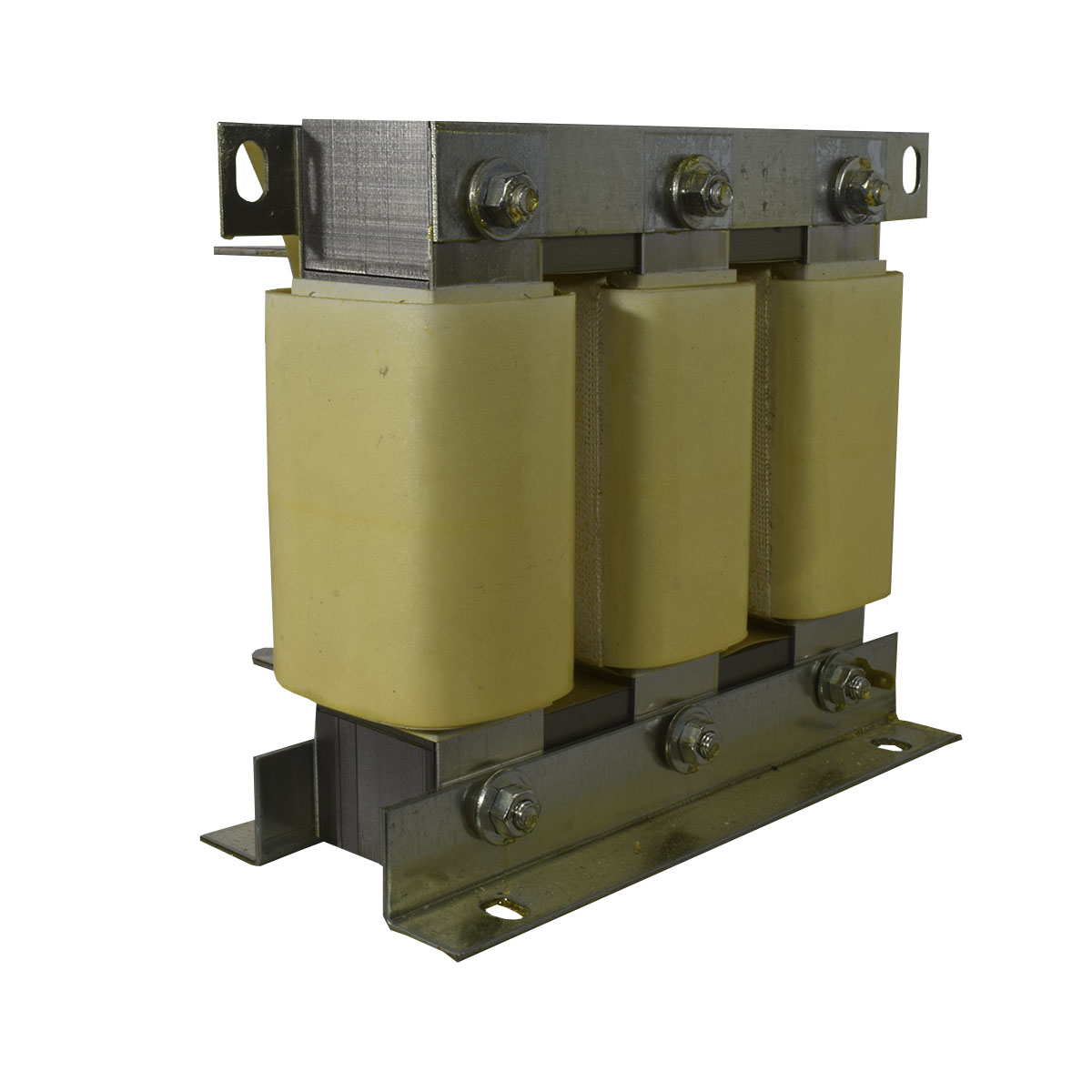

ERM3-E60-480/120/60

ERM3-E60-480/120/60
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 120A
Inductance (mH): 0,14±5%
Dimensions: 205 x 240 x 151 mm

 COP1,987,776
Sin Stock

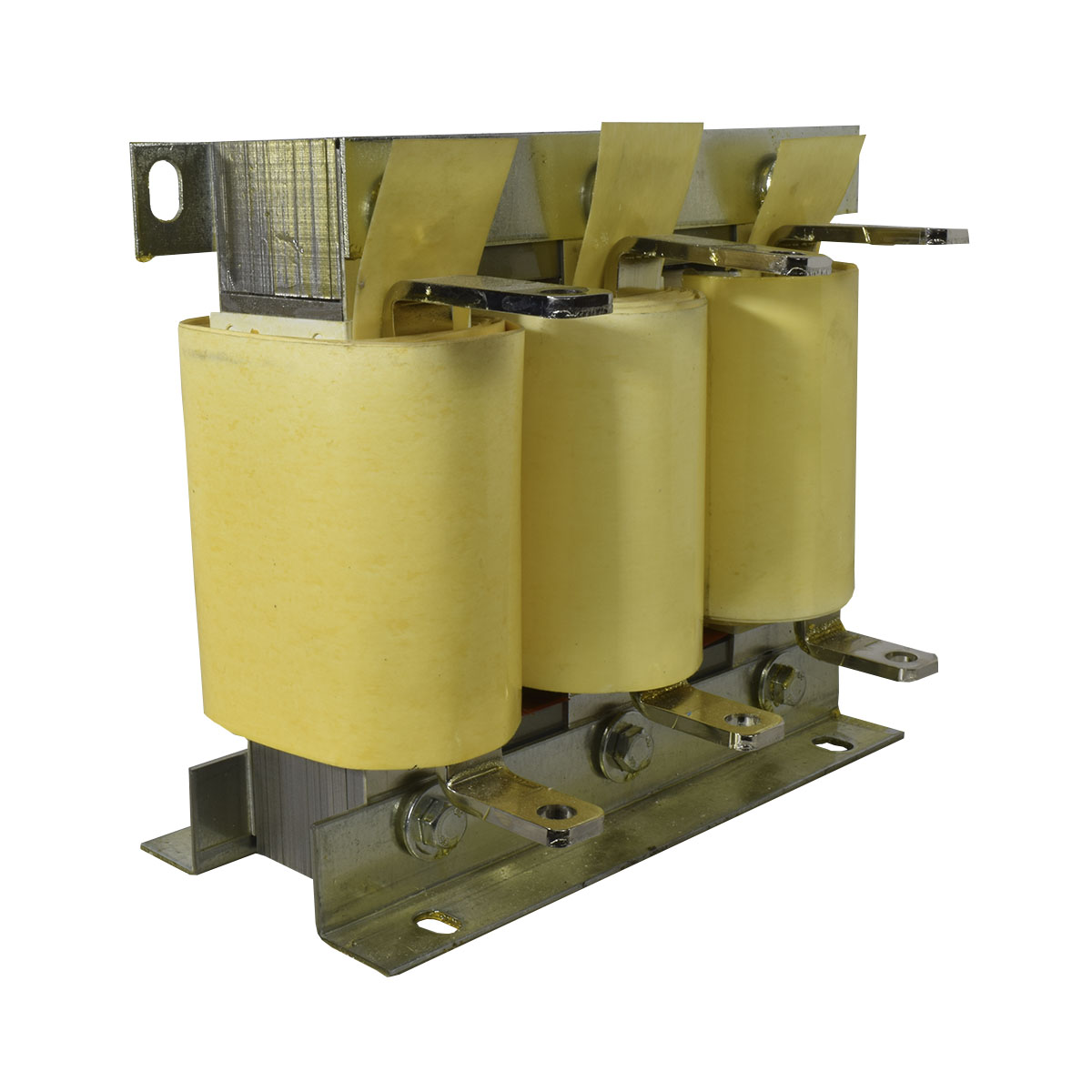

ERM3-E60-480/150/75

ERM3-E60-480/150/75
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 150A
Inductance (mH): 0,12±5%
Dimensions: 205 x 240 x 160 mm

 COP2,320,500
Sin Stock

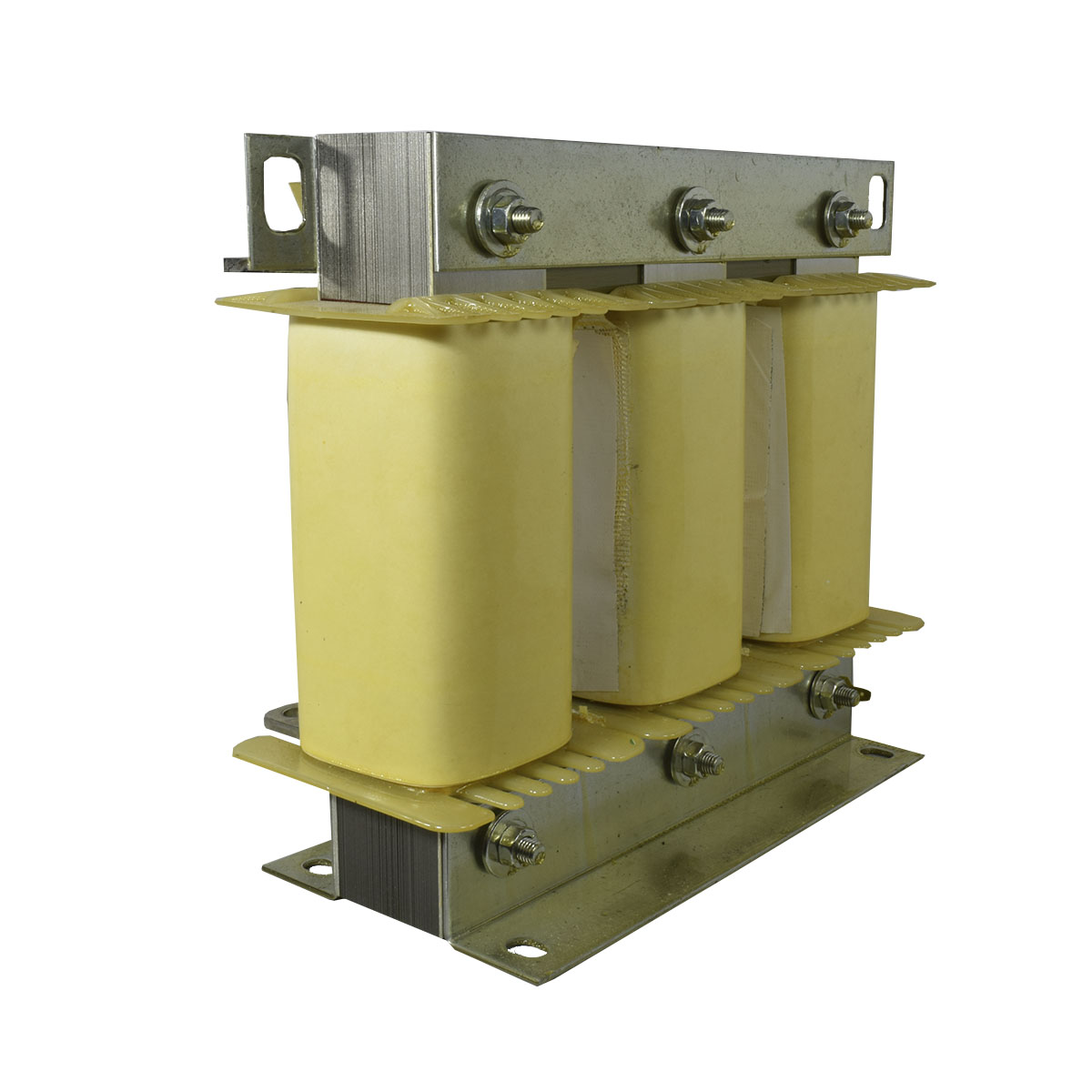

ERM3-E60-480/180/90

ERM3-E60-480/180/90
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 180A
Inductance (mH): 0,1±5%
Dimensions: 255 x 300 x 167 mm

 COP2,688,424
Sin Stock

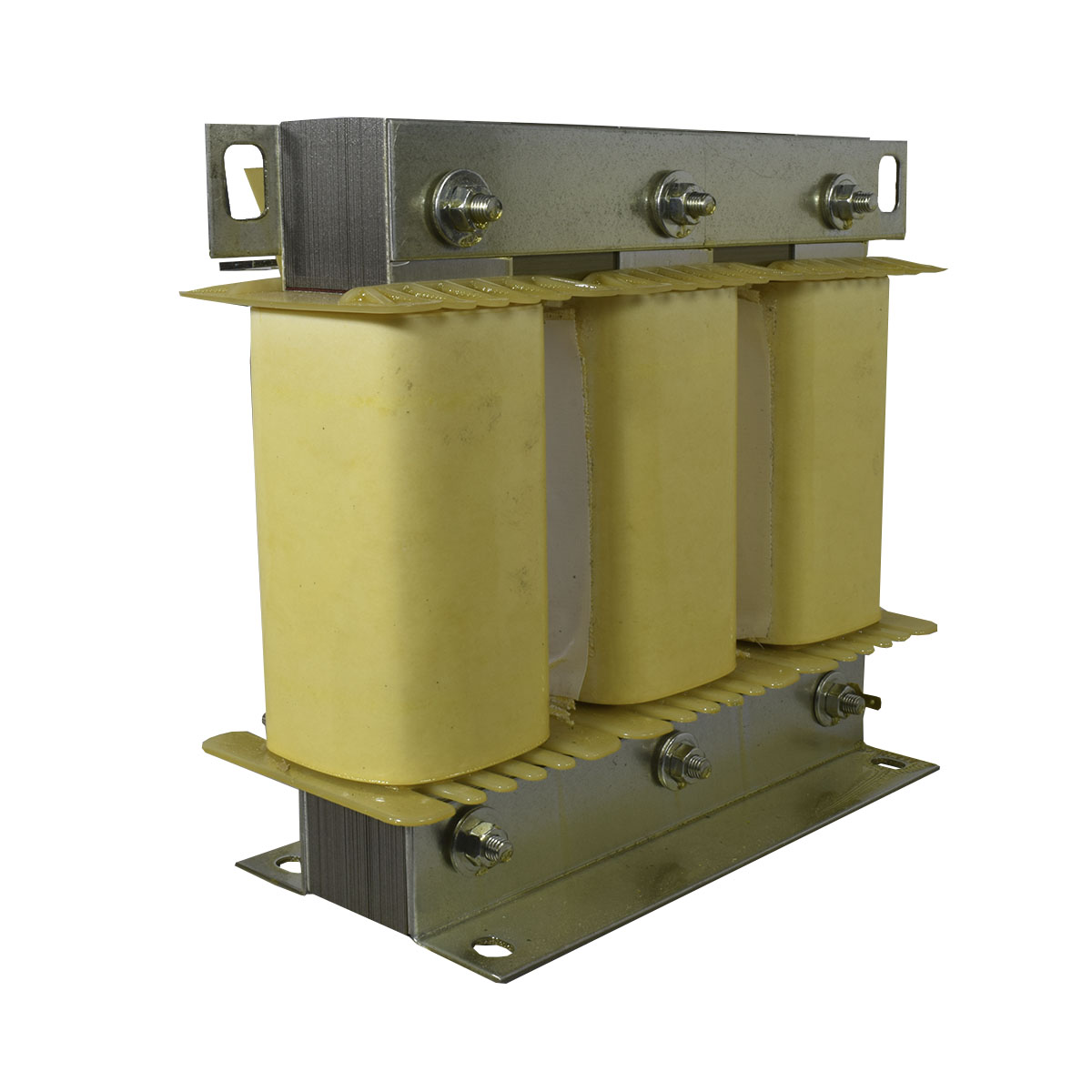

ERM3-E60-480/200/100

ERM3-E60-480/200/100
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 200A
Inductance (mH): 0,09±5%
Dimensions: 255 x 300 x 174 mm

 COP2,774,818
Sin Stock

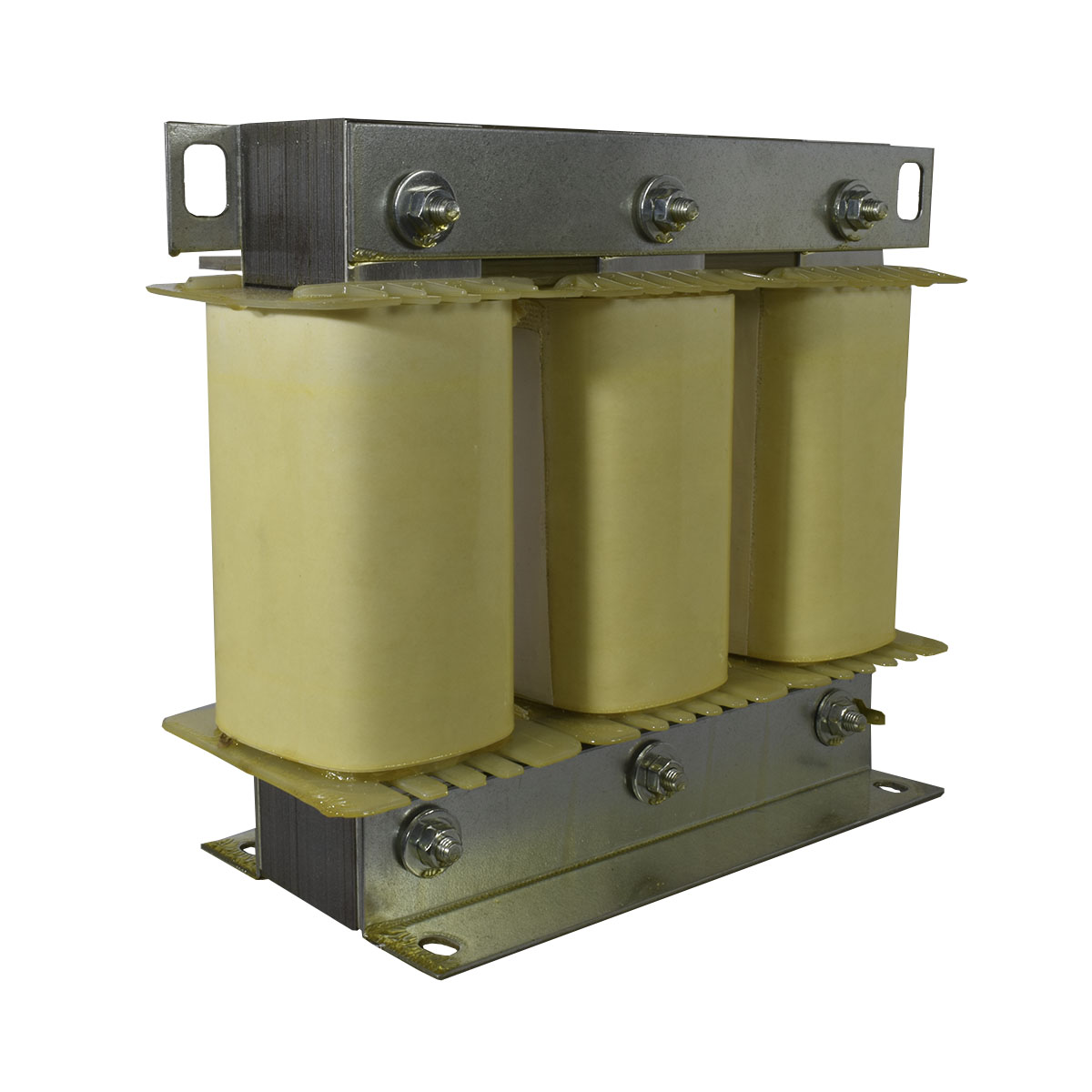

ERM3-E60-480/250/110

ERM3-E60-480/250/110
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 250A
Inductance (mH): 0,07±5%
Dimensions: 255 x 300 x 198 mm

 COP2,791,740
Sin Stock

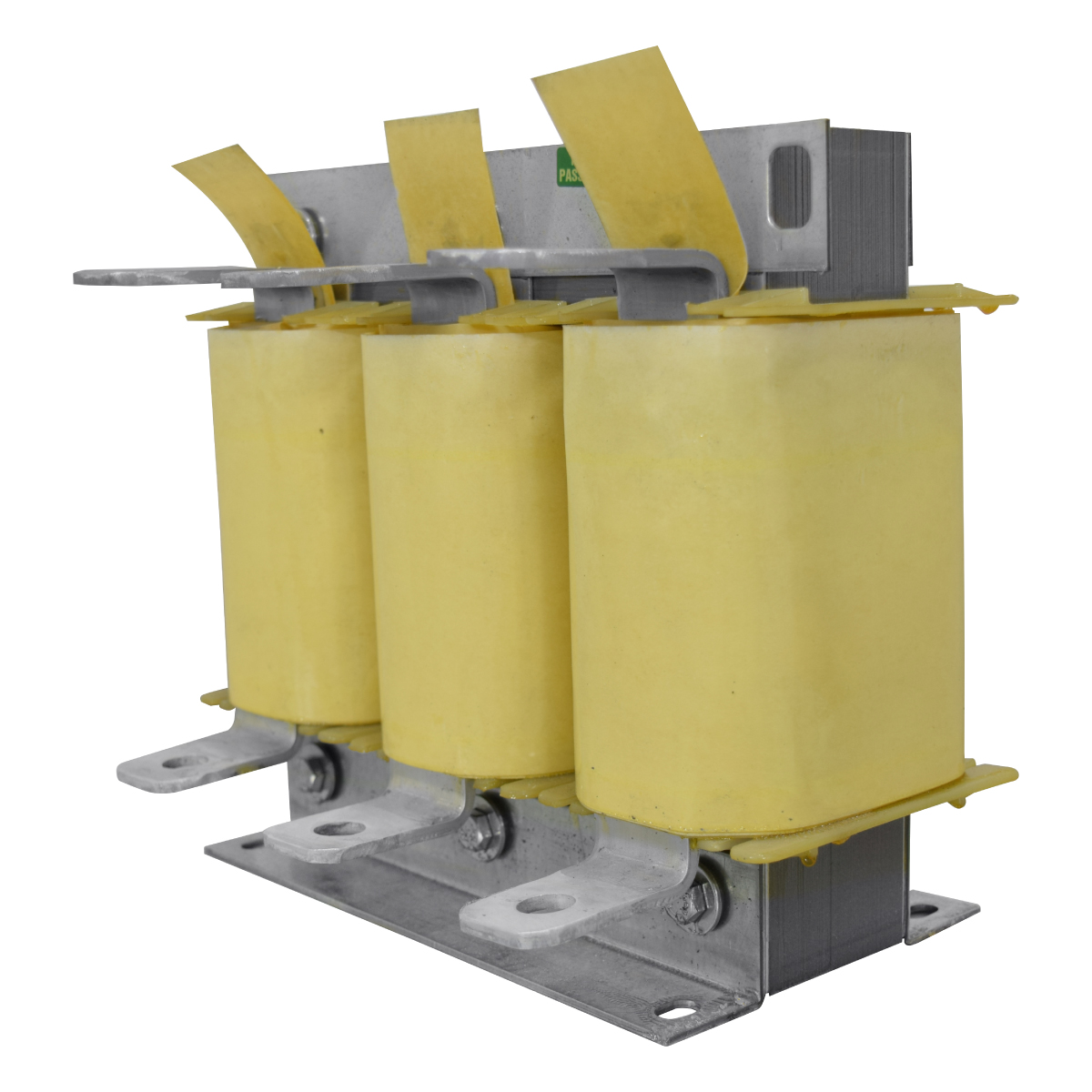

ERM3-E60-480/300/132

ERM3-E60-480/300/132
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 300A
Inductance (mH): 0,06±5%
Dimensions: 255 x 300 x 208 mm

 COP3,156,594
Sin Stock

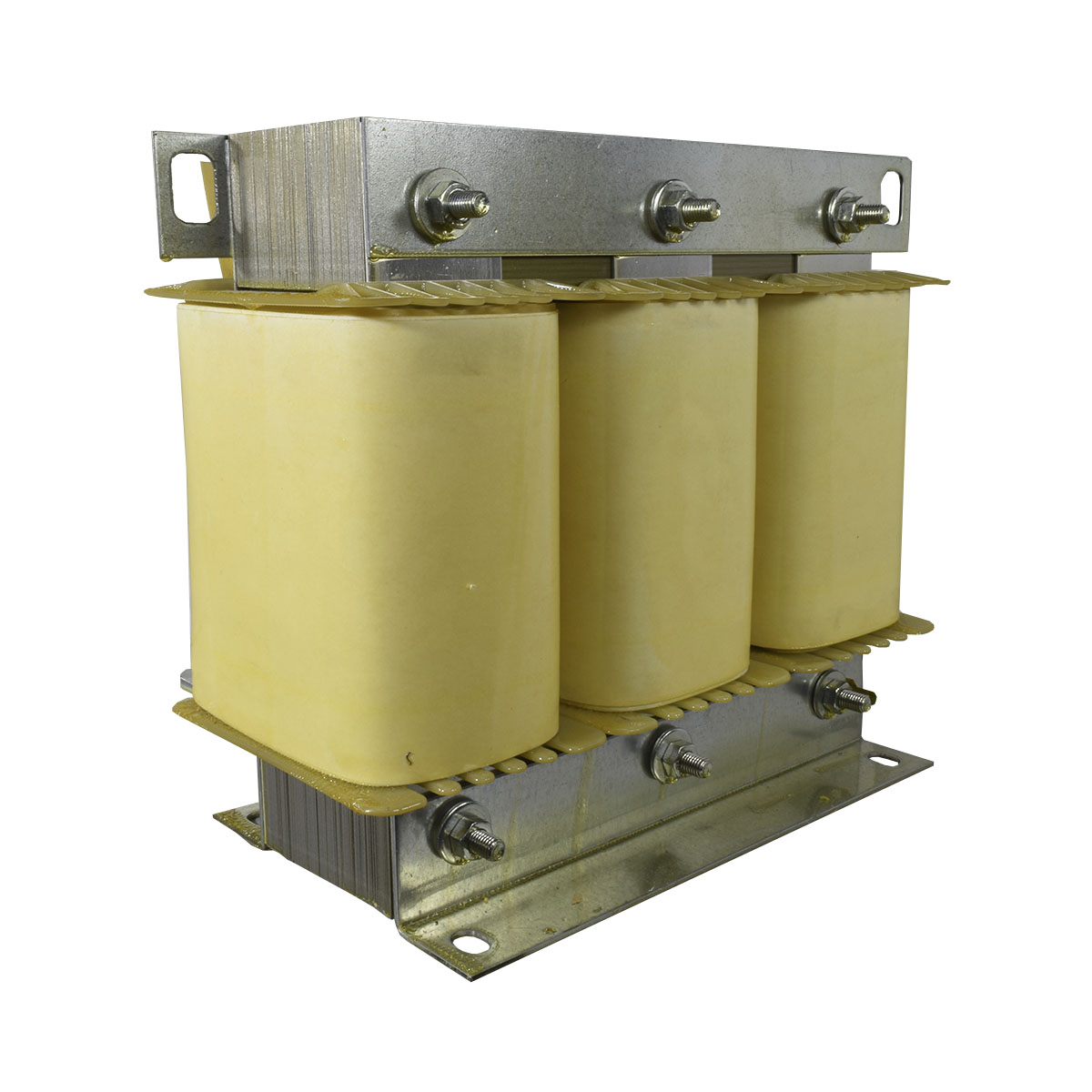

ERM3-E60-480/350/160

ERM3-E60-480/350/160
Type: Three phase inverter output reactor
Rated voltage: 480VAC
Nominal current: 350A
Inductance (mH): 0,05±5%
Dimensions: 255 x 300 x 227 mm

 COP3,275,118
Sin Stock
