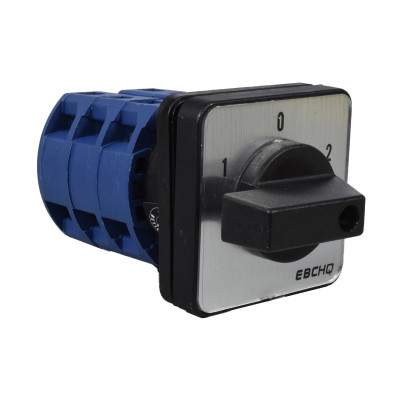

LW26 series rotary transfer switch

LW26 series rotary transfer switch

Certifications:

In stock








Operation typeMain (1) - Stop (0) - Emergency (2) 3 turn positions of 60°
Rated voltage440VAC
Rated current25, 32 or 63A
Mounting typeBoard mounting
Number of poles3
FeaturesAccording with IEC 60947-3 standard
Frontal panelH48 x W48mm or H64 x W64mm (depend of reference)

Downloads

EBCHQ - Manuales y Fichas Técnicas
pdf
Ebchq - LW26 - Catalogue
(Size: 2.7 MB)



sku Summary Unit Price Qty
26418

LW26-25-6D61027/3 M1I
Function: Transfer switch
Operation type: Main (1) - Stop (0) - Emergency (2)
Rated voltage: 440VAC
Rated current: 25A
Frontal panel dimensions: H48 x W48
Mounting type: Board

 COP58,548
Sin Stock
26420

LW26-32-6D61027/3 M2I
Function: Transfer switch
Operation type: Main (1) - Stop (0) - Emergency (2)
Rated voltage: 440VAC
Rated current: 32A
Frontal panel dimensions: H64 x W64
Mounting type: Board

 COP78,540
Sin Stock
26423

LW26-63-6D61027/3 M2I
Function: Transfer switch
Operation type: Main (1) - Stop (0) - Emergency (2)
Rated voltage: 440VAC
Rated current: 63A
Frontal panel dimensions: H64 x W64
Mounting type: Board

 COP159,936
Sin Stock
