Ref: LW26 series board selectors

Name: LW26 series board selectors
Brand: EBCHQ
SKU: Selectores para tablero serie LW26
Price: 38556 COP
Availability: OutOfStock

LW26 series board selectors

In stock

Specifications

Downloads

Operation type	Ref. 26388 - O-RS-ST-TR (4 pos a 45°) Ref. 26390 - TR-ST-RS-ORN-SN-TN (7 pos a 45°) Ref. 26394 - T-OFF- R- S (4 pos a 90°)
Selector type	Voltmeter or ammeter (depend of reference)
Rated voltage	440VAC
Rated current	20A
Mounting type	Board mounting
Number of poles	3
Features	According with IEC 60947-3 standard
Frontal panel	H60 x W48mm

EBCHQ - Manuales y Fichas Técnicas

Ebchq - LW26 - Catalogue

(Size: 2.7 MB)

sku	Summary	Unit Price	Qty

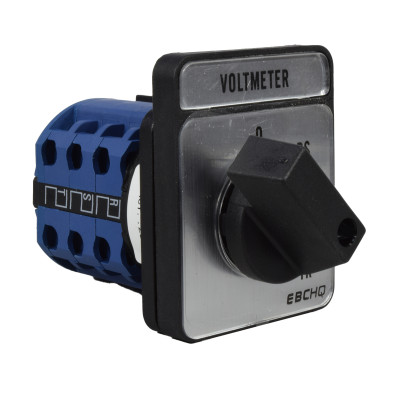

26388	LW26-20-45E61312/3 M1I Function: 4 positions voltmeter switch Operation type: O - RS - ST - TR Rated voltage: 440VAC Rated current: 20A Frontal panel dimensions: H60 x W64 Mounting type: Board	COP38,556	Sin Stock
26390	LW26-20-45H61313/3 M1I Function: 7 positions voltmeter switch Operation type: TR - ST - RS - O - RN - SN - TN Rated voltage: 440VAC Rated current: 20A Frontal panel dimensions: H60 x W64 Mounting type: Board	COP38,556	Sin Stock

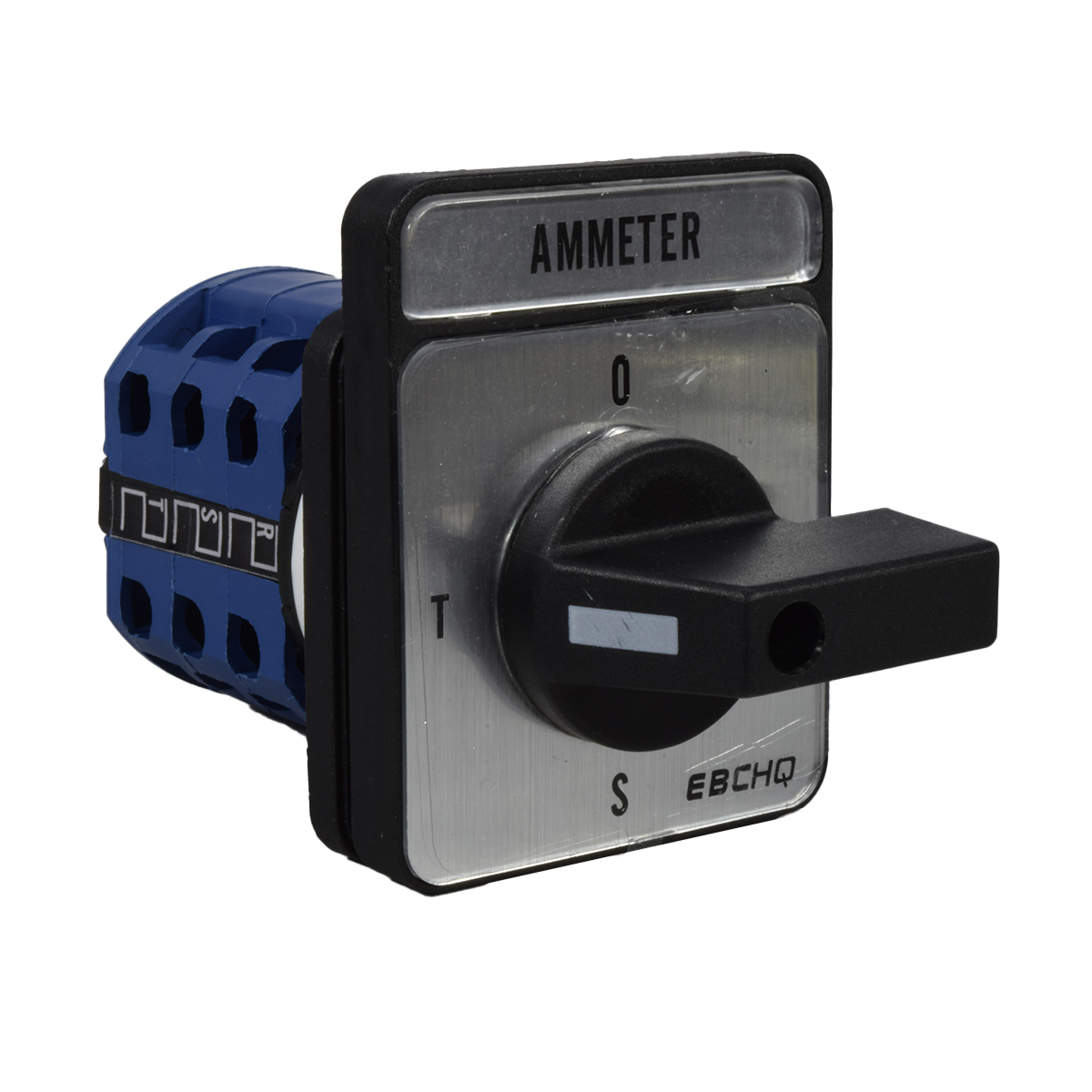

26394	LW26-20-9E61325/3 M1I Function: 4 positions amperemeter switch Operation type: T - OFF - R - S Rated voltage: 440VAC Rated current: 20A Frontal panel dimensions: H60 x W64 Mounting type: Board	COP40,841	Sin Stock
