Ref: LW26 series reversing switch

Name: LW26 series reversing switch
Brand: EBCHQ
SKU: Inversor de giro serie LW26
Price: 55692 COP
Availability: OutOfStock

LW26 series reversing switch

In stock

Specifications

Downloads

Operation type	Forward (FOR) - Stop (OFF) - Reverse (REV) 3 turn positions of 60°
Rated voltage	440VAC
Rated current	25, 32 or 63A
Mounting type	Board mounting
Number of poles	3
Features	According with IEC 60947-3 standard
Frontal panel	H48 x W48mm or H64 x W64mm (depend of reference)

EBCHQ - Manuales y Fichas Técnicas

Ebchq - LW26 - Catalogue

(Size: 2.7 MB)

sku	Summary	Unit Price	Qty

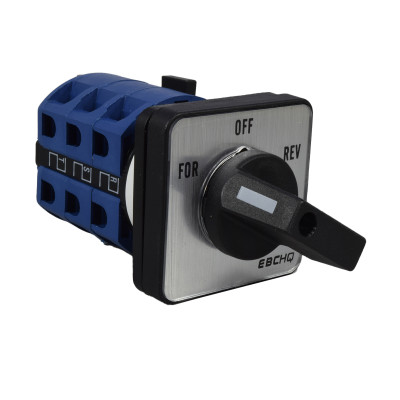

26410	LW26-25-6D61211/3 M1I Series: LW26 Function: Reversing switch Operation type: FOR - STOP - REV Number of poles: 3 Rated voltage: 440VAC Rated current: 25A Frontal panel dimensions: H48 x W48 Coating material: Plastic base Mounting type: Board	COP55,692	Sin Stock

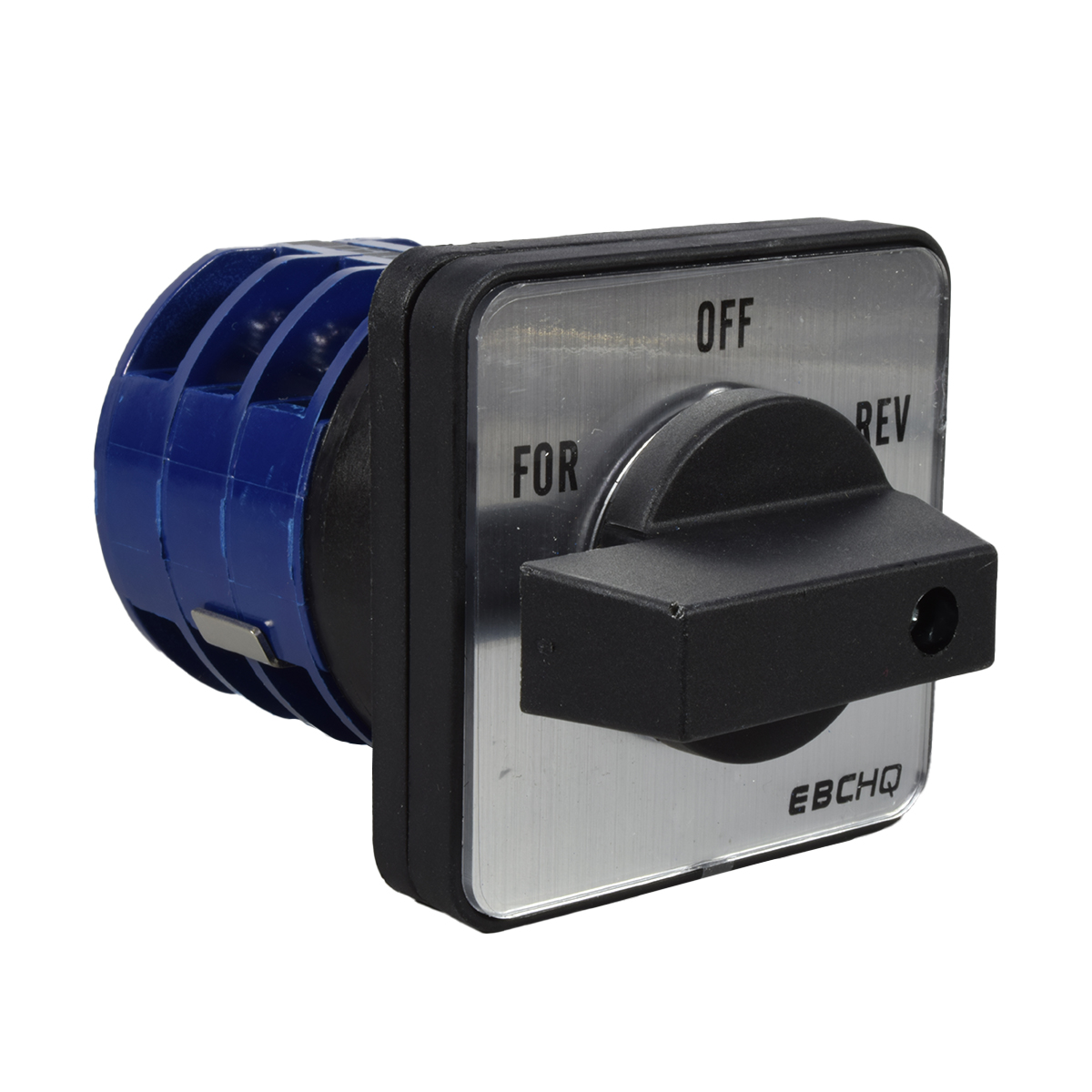

26412	LW26-32-6D61211/3 M2I Series: LW26 Function: Reversing switch Operation type: FOR - STOP - REV Number of poles: 3 Rated voltage: 440VAC Rated current: 32A Frontal panel dimensions: H64 x W64 Coating material: Plastic base Mounting type: Board	COP78,540	Sin Stock
26414	LW26-63-6D61211/3 M2I Series: LW26 Function: Reversing switch Operation type: FOR - STOP - REV Number of poles: 3 Rated voltage: 440VAC Rated current: 63A Frontal panel dimensions: H64 x W64 Coating material: Plastic base Mounting type: Board	COP159,936	Sin Stock
