Ref: CAM-ZC series safety switches

Name: CAM-ZC series safety switches
Brand: Palazzoli
SKU: Interruptores de seguridad serie CAM-ZC
Price: 165362 COP
Availability: OutOfStock

CAM-ZC series safety switches

Certifications:

In stock

Specifications

Downloads

Especificaciones

Operation type	ON - OFF
Rated voltage	500VAC or 690VAC (depend of model)
Rated current	32, 63 or 100A (depend of model)
Mounting type	Surface mounting
Number of poles	3 or 4 (depend of model)
Features	Material: Thermoplastic Heat resistance: 960 ° C (Switch) 650 ° C (Surround) Impact resistance: IK08 Working temperature: -25 ° C to 60 ° C Meets Standard: IEC 60947-3
Protection	IP65
Dimensions	Ref. 32A (H158 x W121 x D126) Ref. 63 and 100A (H250 x W158 x D139)

Downloads

Palazzoli - Manuales y Fichas Técnicas

Palazzoli - CAM-ZC - Esp - Catalogue

(Size: 489.9 KB)

sku	Summary	Unit Price	Qty

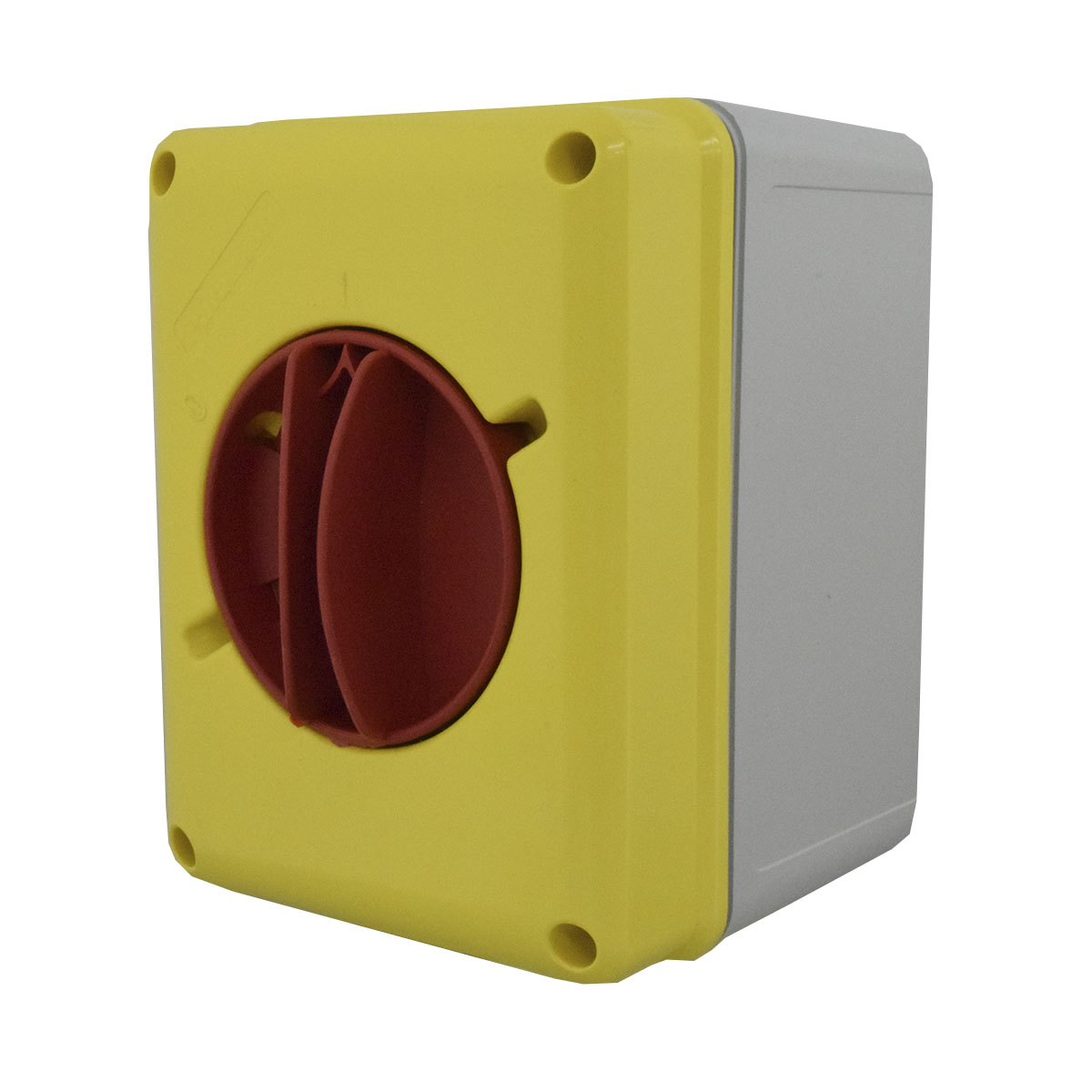

208323	208323 Series: CAM-ZC Function: Safety switches Operation type: On - Off Number of poles: 3 Rated voltage: 500VAC Rated current: 32A Coating material: Thermoplastic box Frontal panel dimensions: H158 x W121 x D126 Mounting type: Surface	COP186,247	Sin Stock

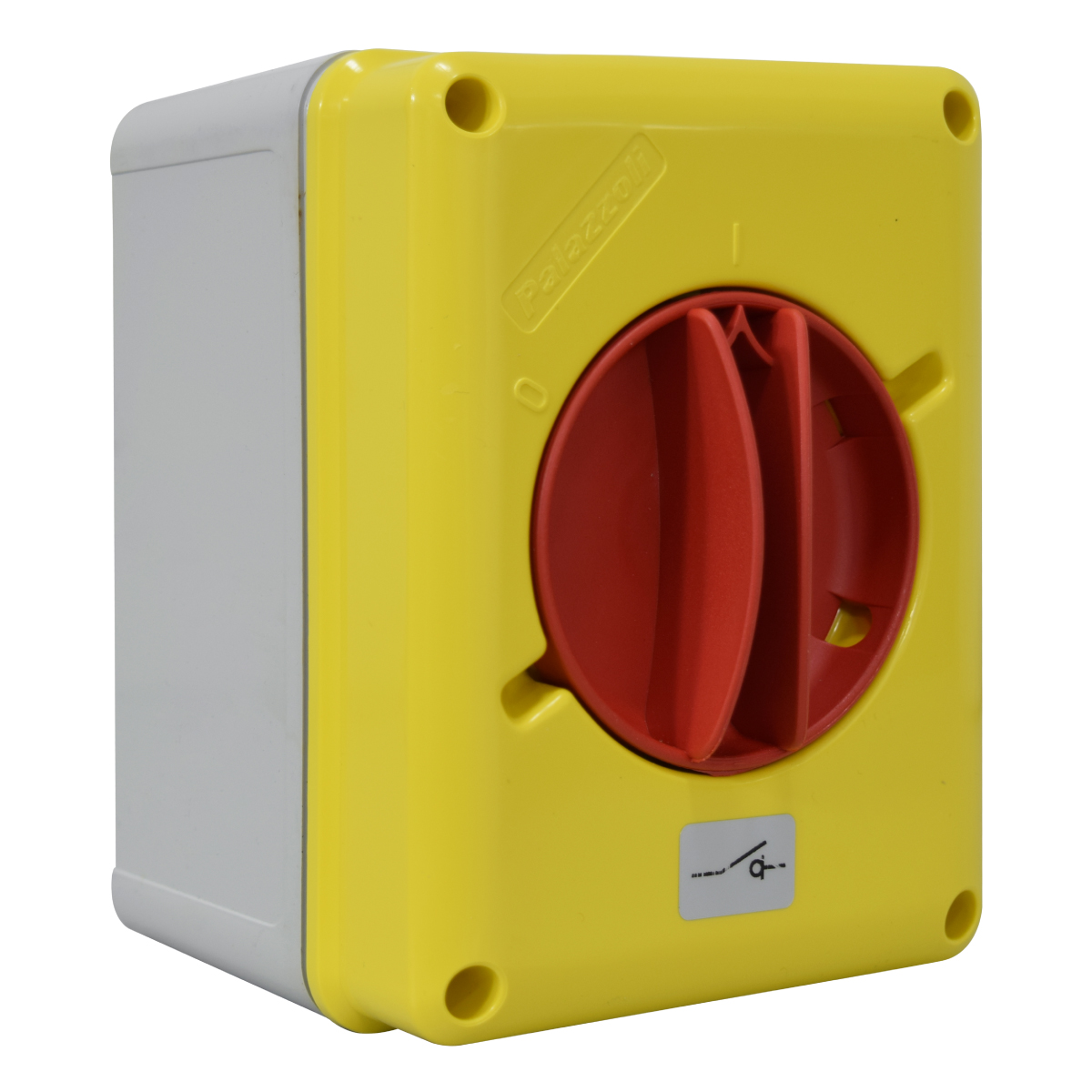

208324	208324 Series: CAM-ZC Function: Safety switches Operation type: On - Off Number of poles: 4 Rated voltage: 500VAC Rated current: 32A Coating material: Thermoplastic box Frontal panel dimensions: H158 x W121 x D126 Mounting type: Surface	COP165,362	Sin Stock

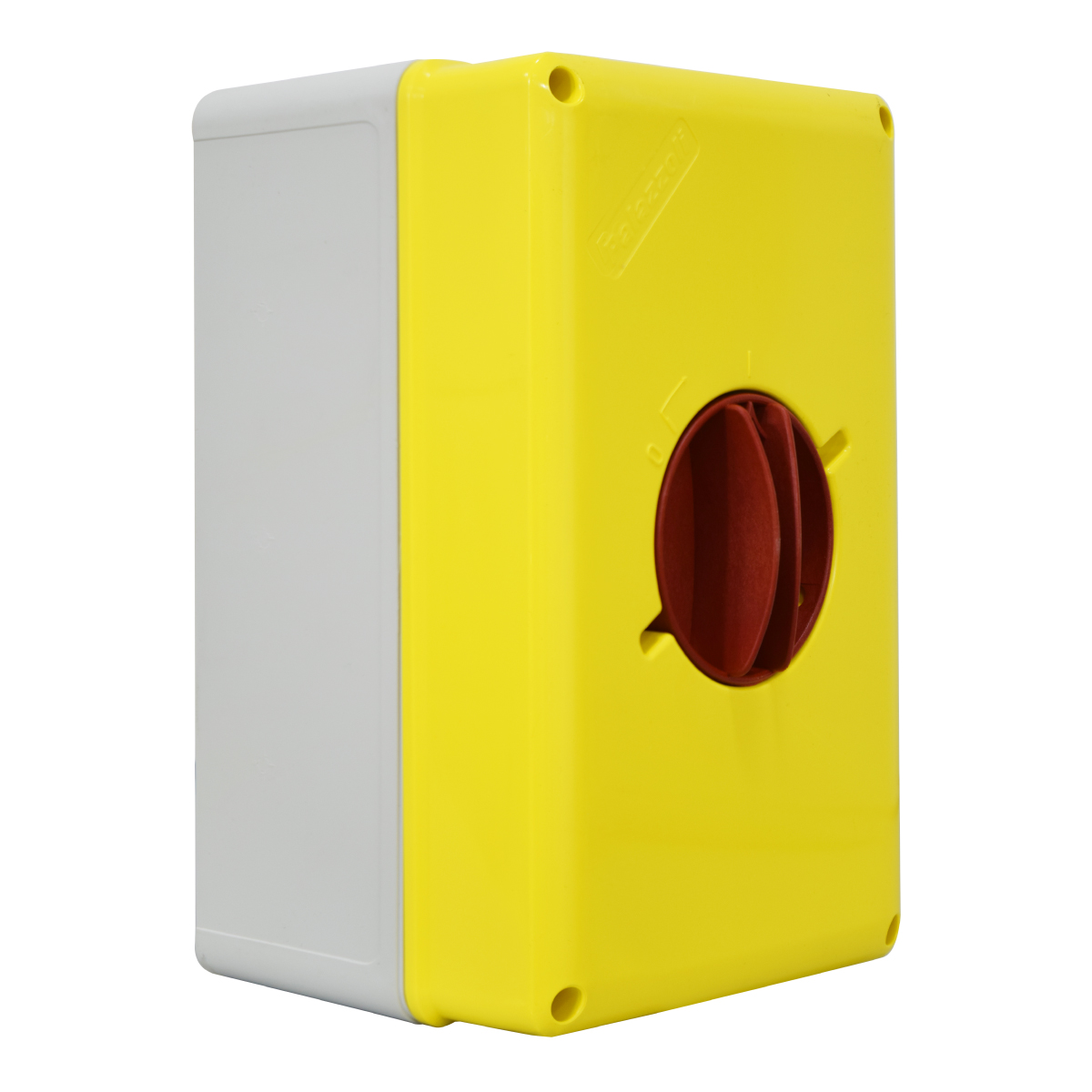

208633	208633 Series: CAM-ZC Function: Safety switches Operation type: On - Off Number of poles: 3 Rated voltage: 690VAC Rated current: 63A Coating material: Thermoplastic box Frontal panel dimensions: H250 x W158 x D139 Mounting type: Surface	COP511,795	Sin Stock

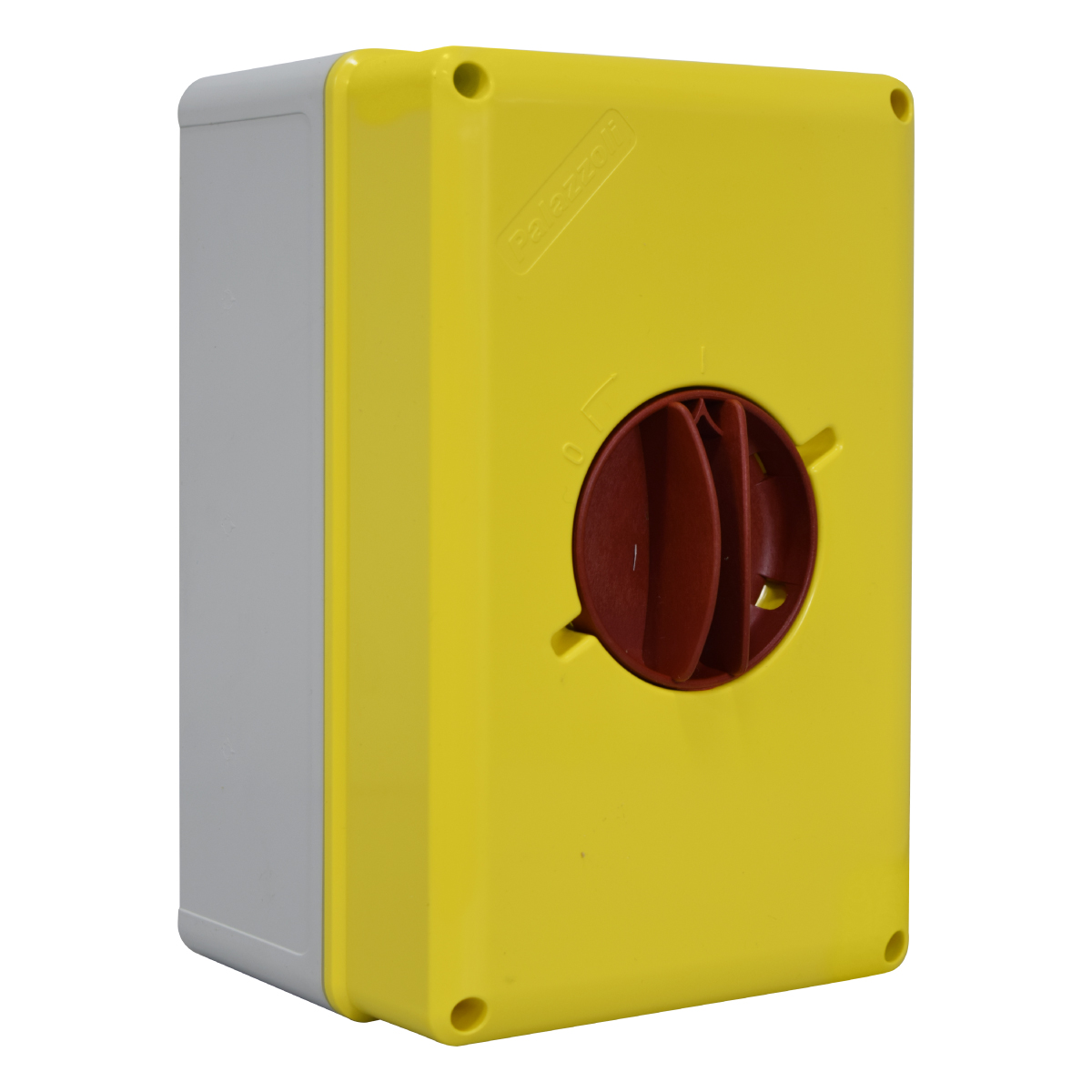

208634	208634 Series: CAM-ZC Function: Safety switches Operation type: On - Off Number of poles: 4 Rated voltage: 690VAC Rated current: 63A Coating material: Thermoplastic box Frontal panel dimensions: H250 x W158 x D139 Mounting type: Surface	COP627,035	Sin Stock

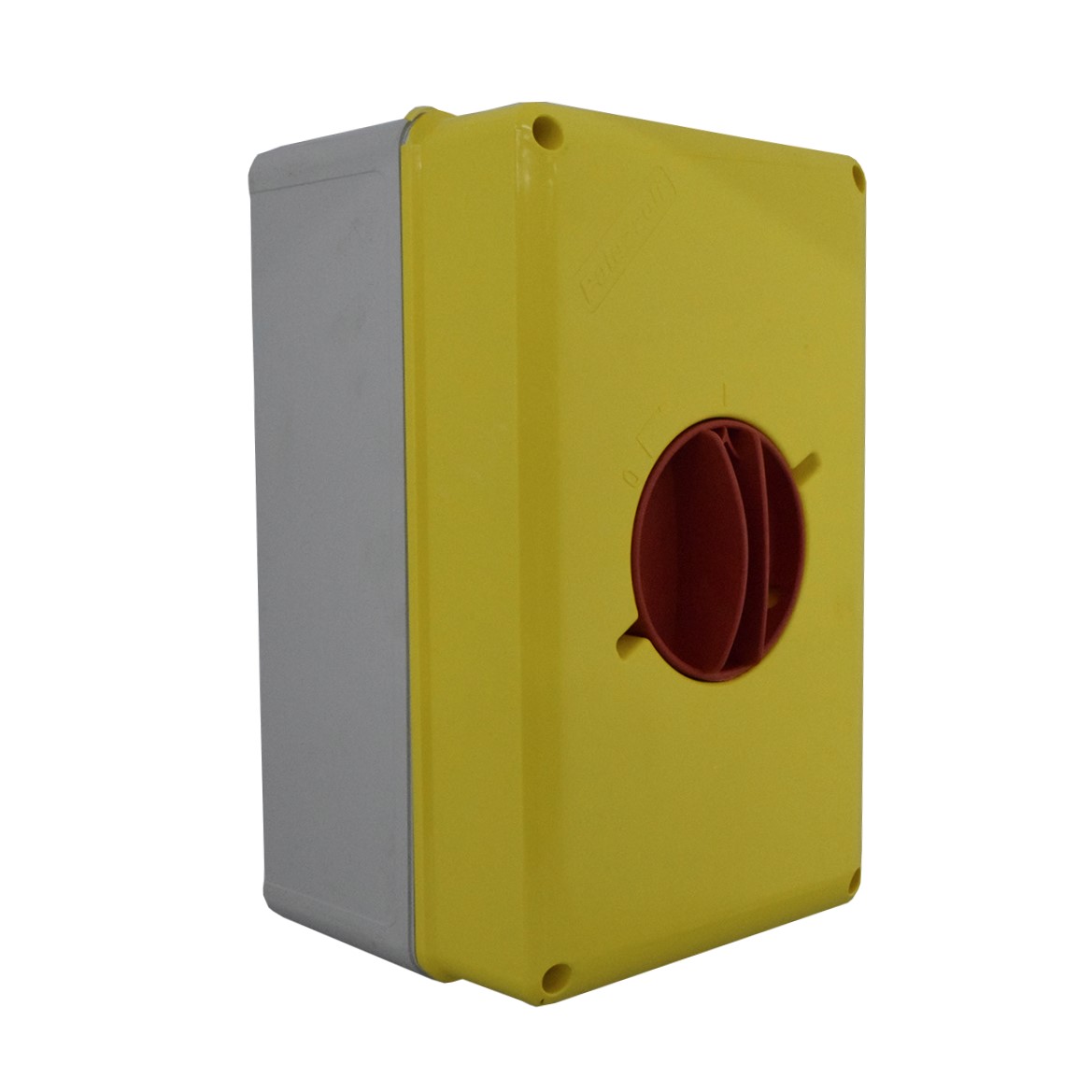

208104	208104 Series: CAM-ZC Function: Safety switches Operation type: On - Off Number of poles: 4 Rated voltage: 690VAC Rated current: 100A Coating material: Thermoplastic box Frontal panel dimensions: H250 x W158 x D139 Mounting type: Surface	COP918,204	Sin Stock
