DM1 series limit switches

DM1 series limit switches

Certifications:

In stock







Body materialZinc alloy (Zamak)
Contact configuratoin1NO + 1NC
Contact typeSnap-action
Contact ratingAC: 10A / 24V | 6A / 120V | 4A / 400V
DC: 6A / 24V | 0,55A / 125V | 0,4A / 250V
Protection degreeIP66 (except models F52, T92 and T93 which are IP65)
Cable gland entries3 x PG13.5 (cable glands not included)

Downloads

Comepi - Manuales y Fichas Técnicas
pdf
Comepi - DM - Datasheets
(Size: 581.1 KB)



sku Summary Unit Price Qty

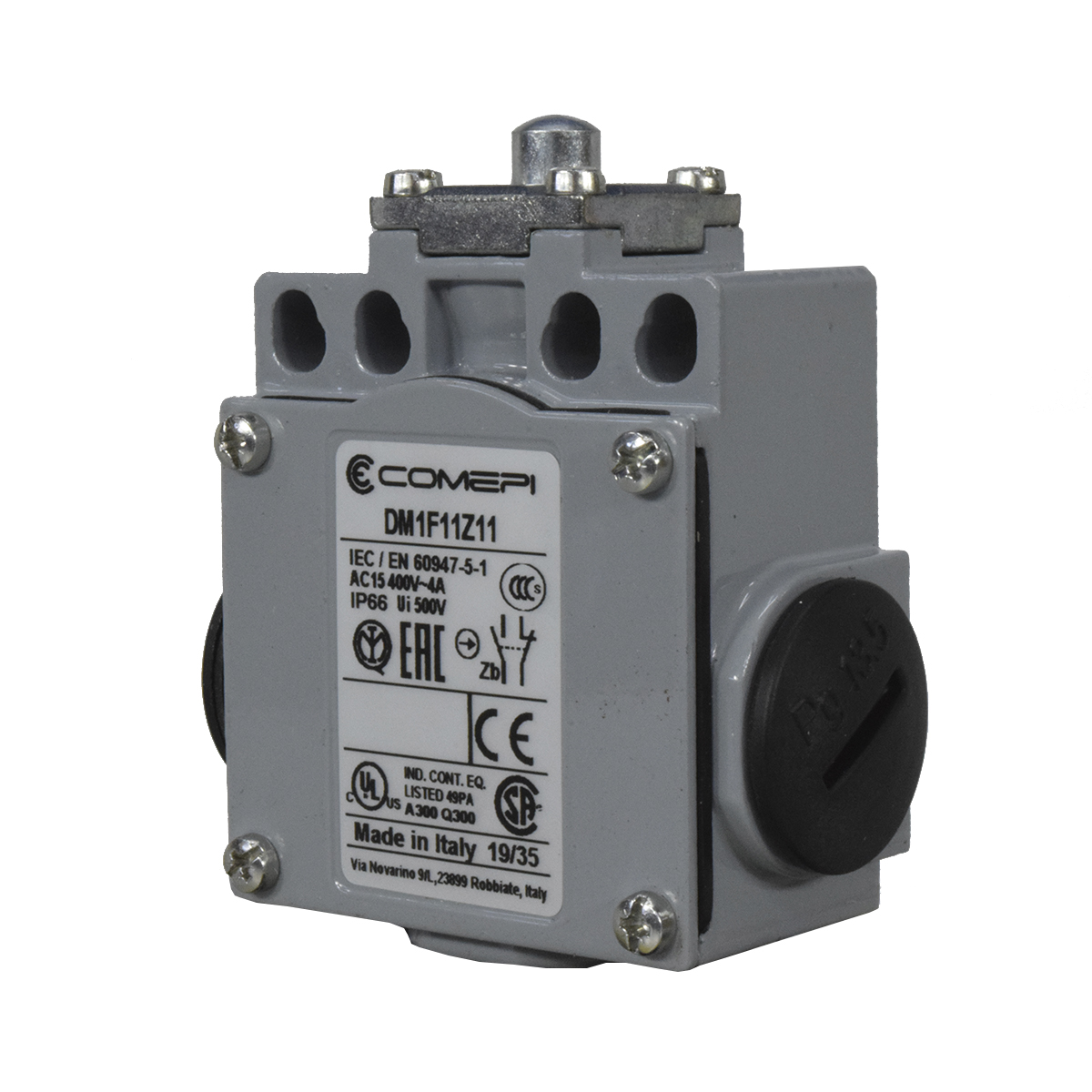

DM1F11Z11

DM1F11Z11
Actuator type: Plunger
Adjustable actuator: No
Protection degree: IP66

 COP90,178
Sin Stock

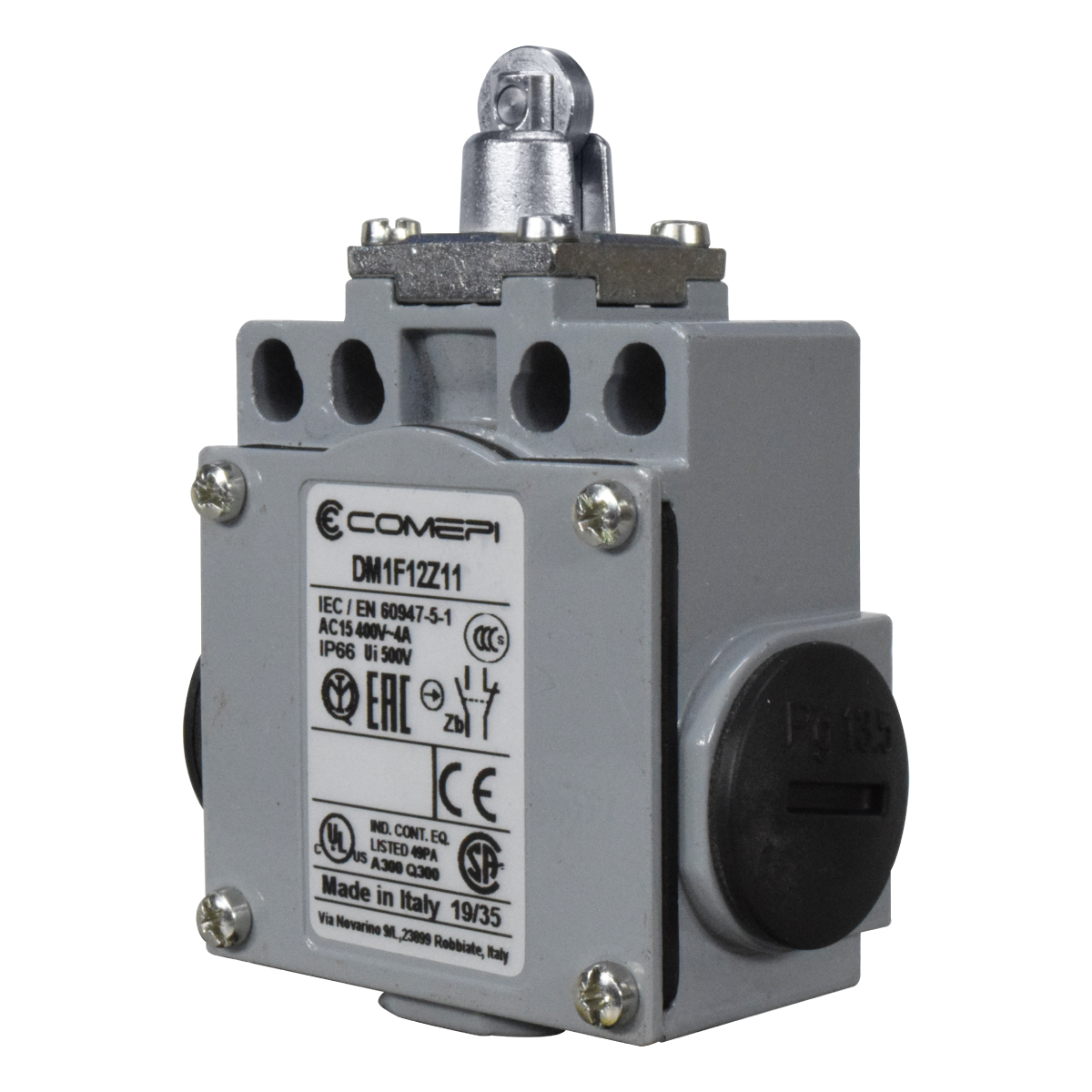

DM1F12Z11

DM1F12Z11
Actuator type: Plunger + metal roller
Adjustable actuator: No
Protection degree: IP66

 COP88,536
Sin Stock

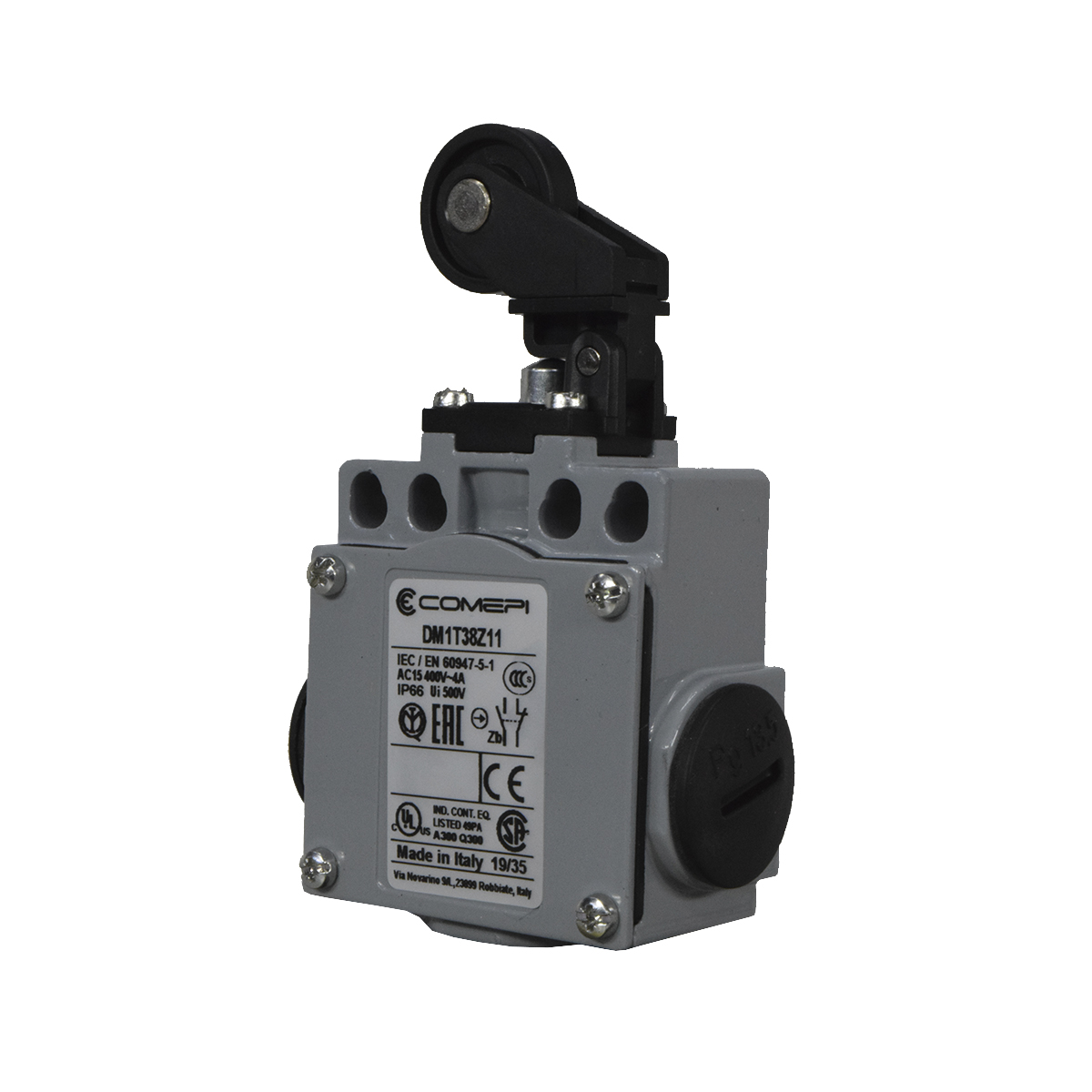

DM1T38Z11

DM1T38Z11
Actuator type: Lever + plastic roller
Protection degree: IP66

 COP98,532
Sin Stock

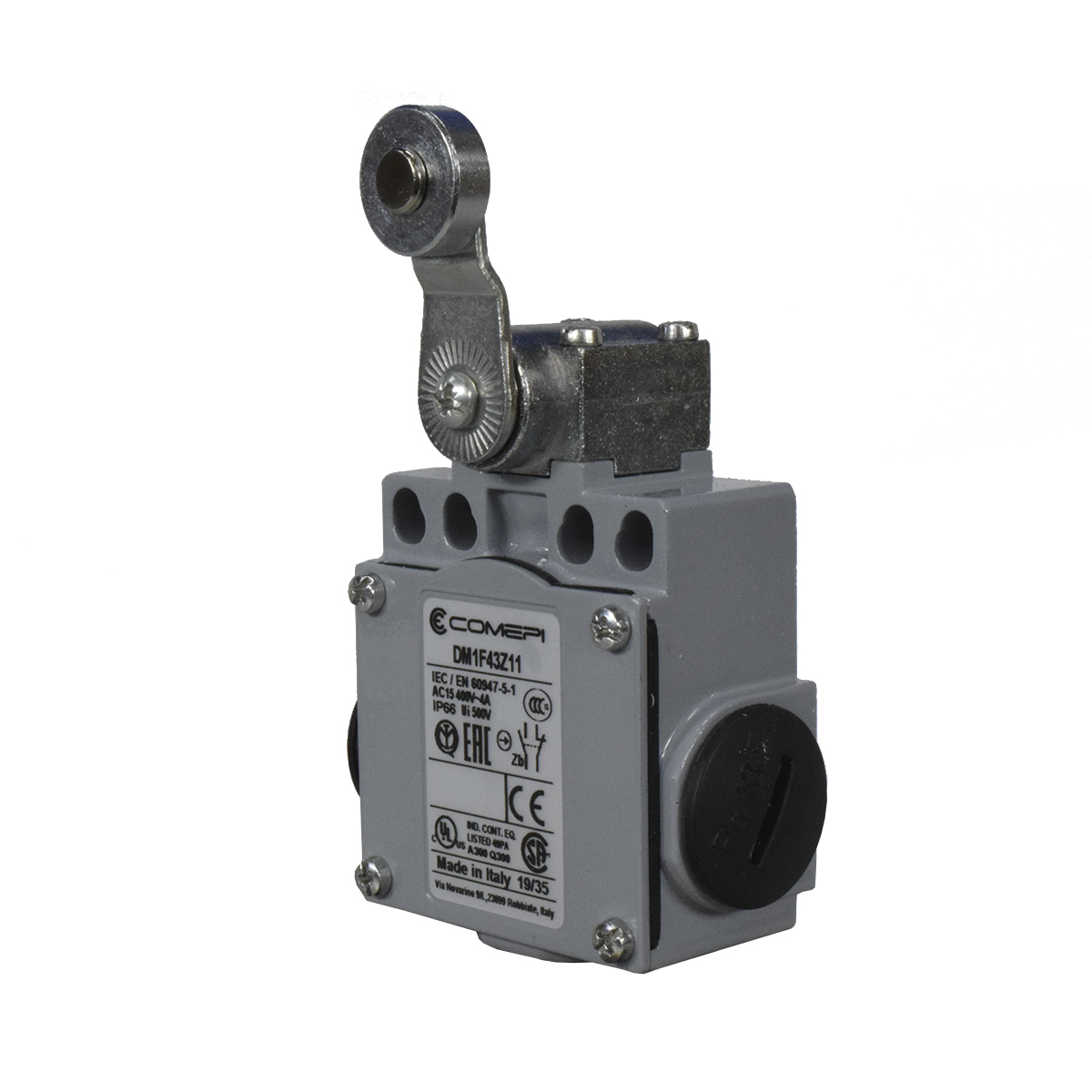

DM1F43Z11

DM1F43Z11
Actuator type: Metal lever + metal roller
Adjustable actuator: No
Protection degree: IP66

 COP97,104
Sin Stock

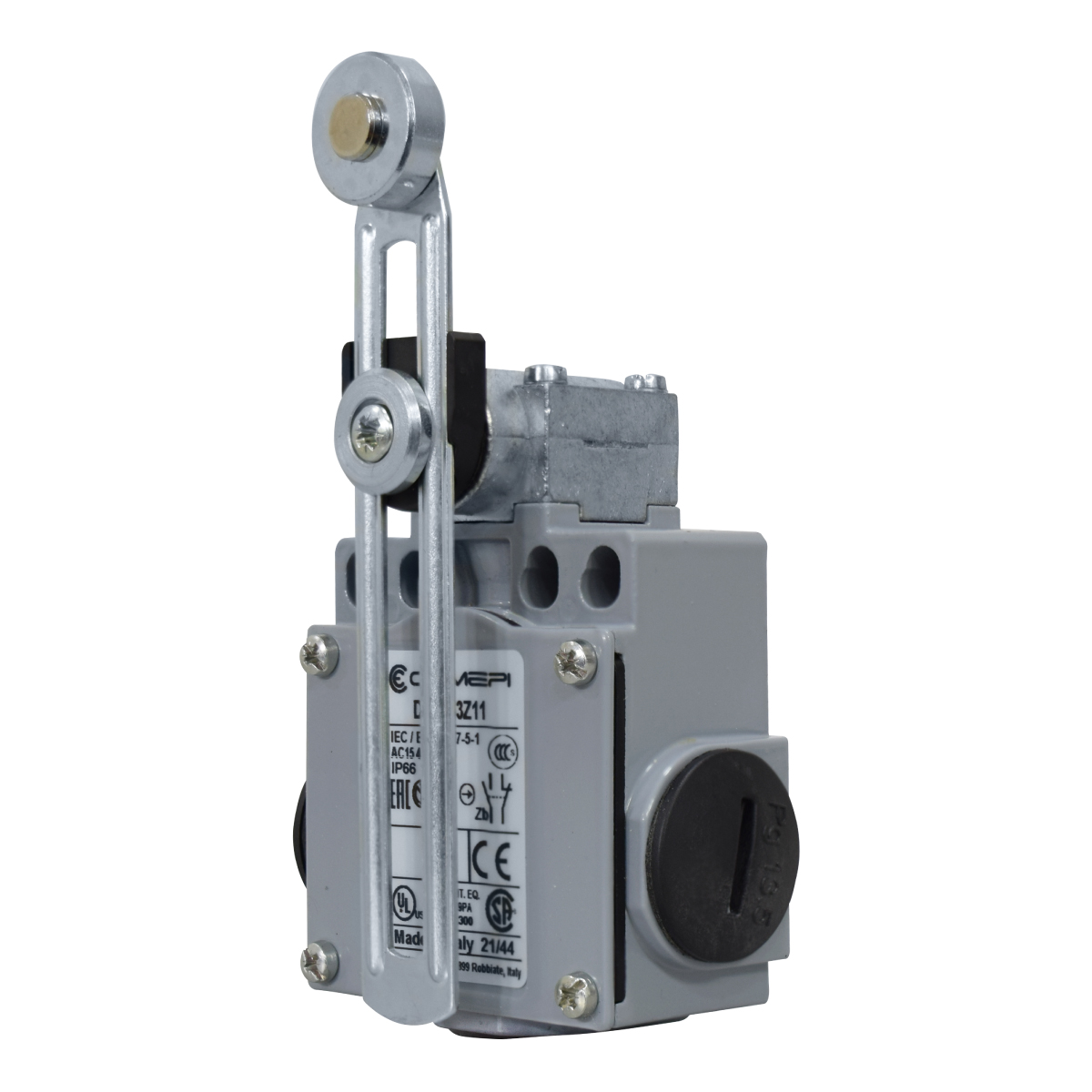

DM1F53Z11

DM1F53Z11
Actuator type: Metal lever + metal roller
Adjustable actuator: Yes
Protection degree: IP66

 COP115,668
Sin Stock

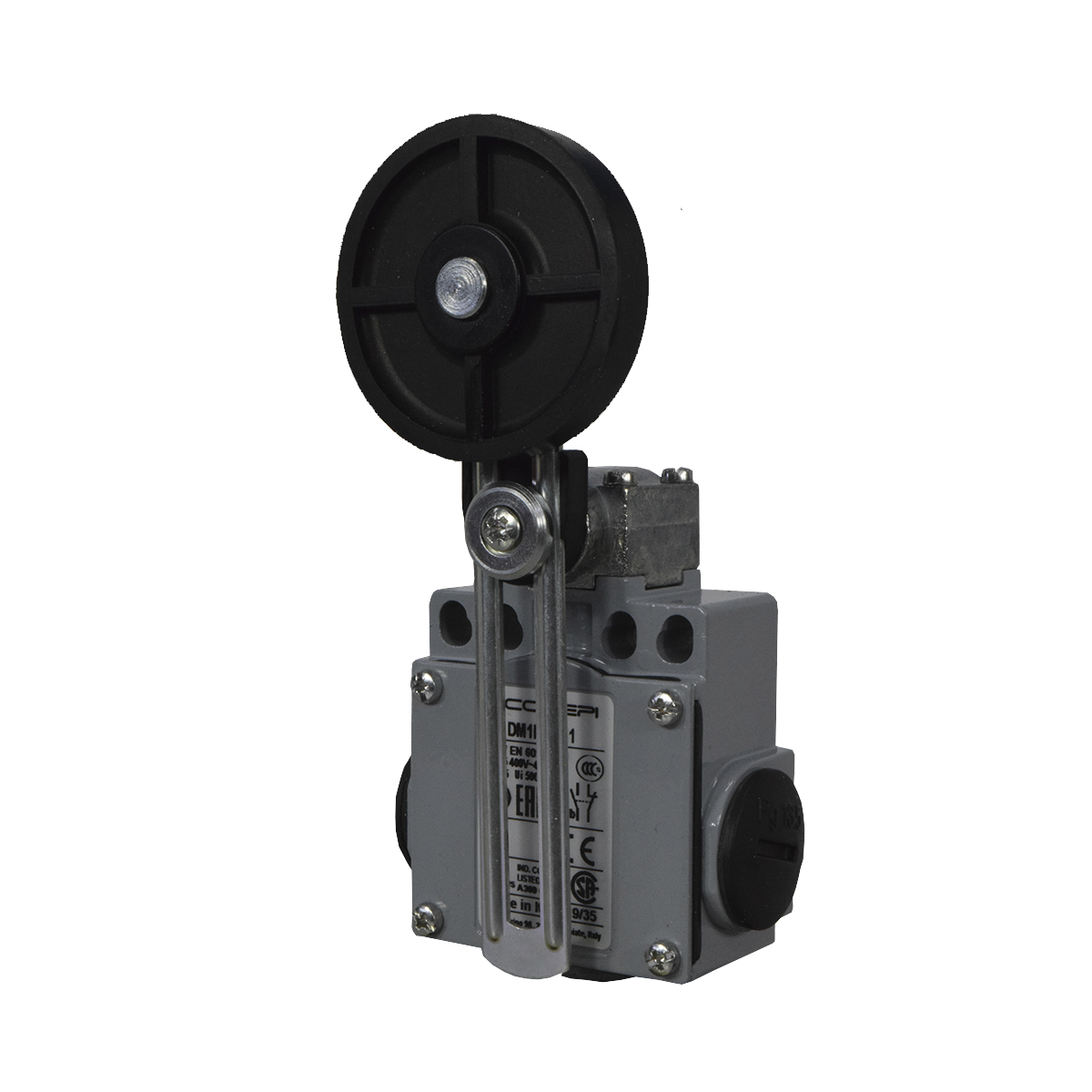

DM1F52Z11

DM1F52Z11
Actuator type: Metal lever + large rubber roller
Adjustable actuator: Yes
Protection degree: IP65

 COP107,100
Sin Stock

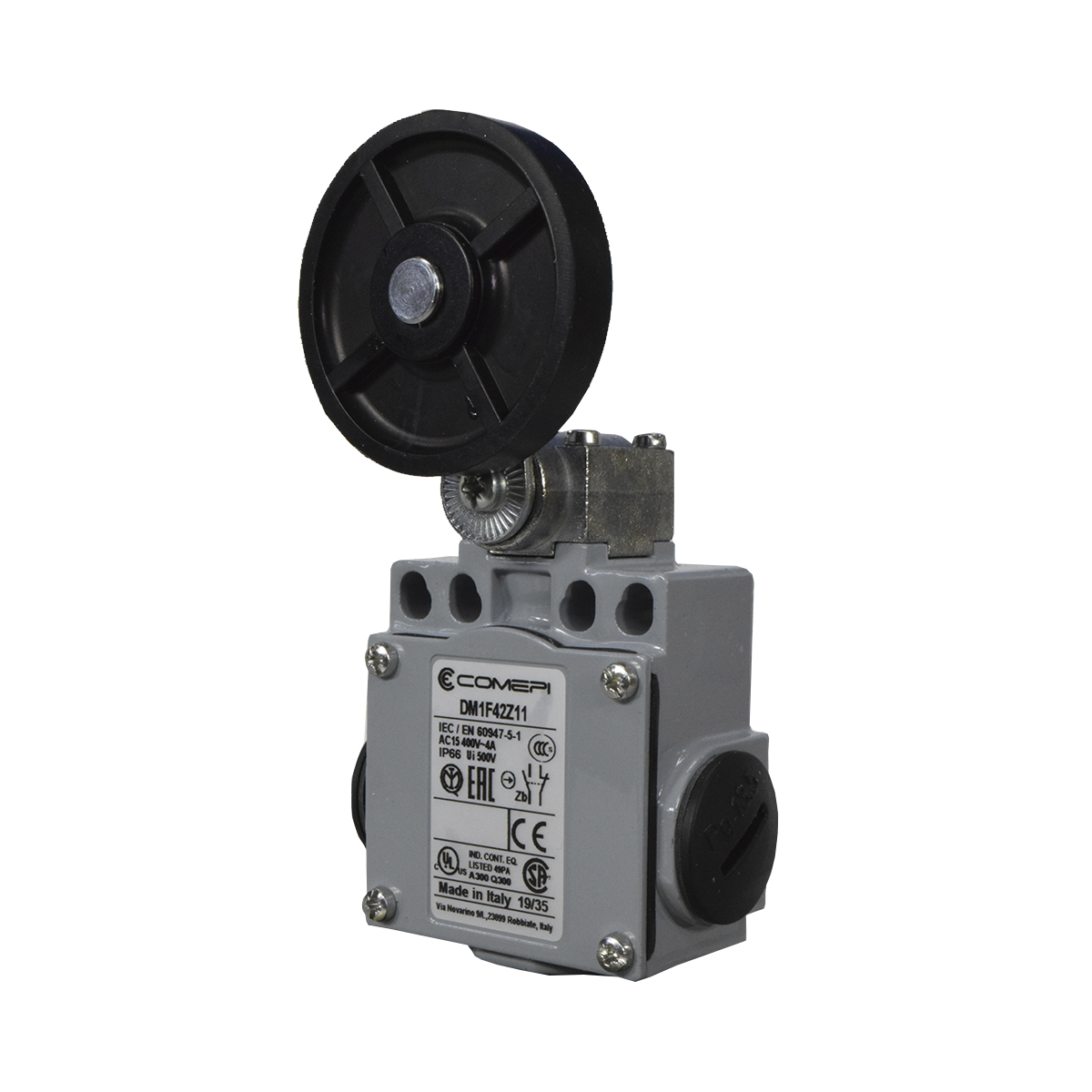

DM1F42Z11

DM1F42Z11
Actuator type: Metal lever + large rubber roller
Adjustable actuator: No
Protection degree: IP66

 COP128,520
Sin Stock

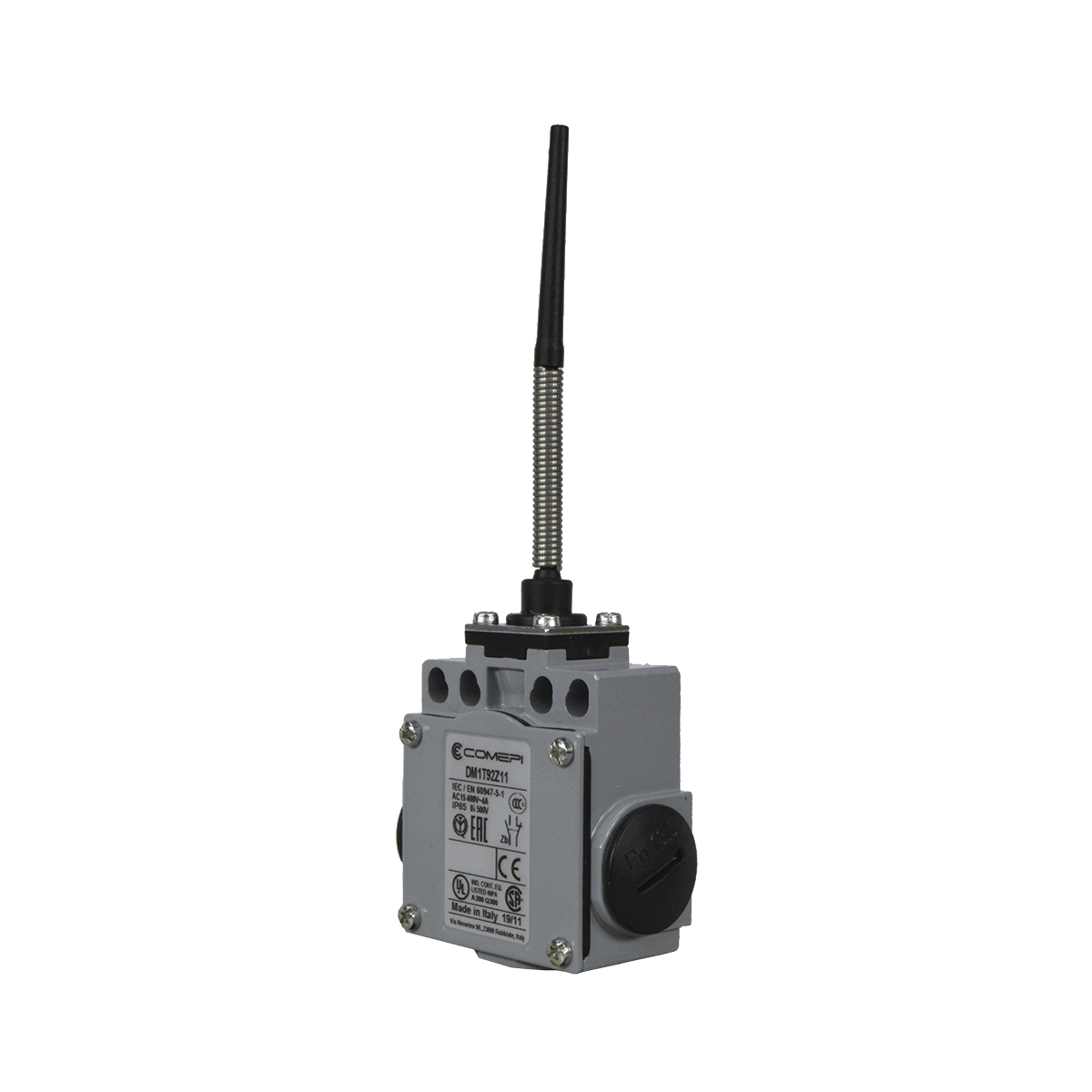

DM1T92Z11

DM1T92Z11
Actuator type: Plastic rod + metal spring
Adjustable actuator: No
Protection degree: IP65

 COP95,676
Sin Stock

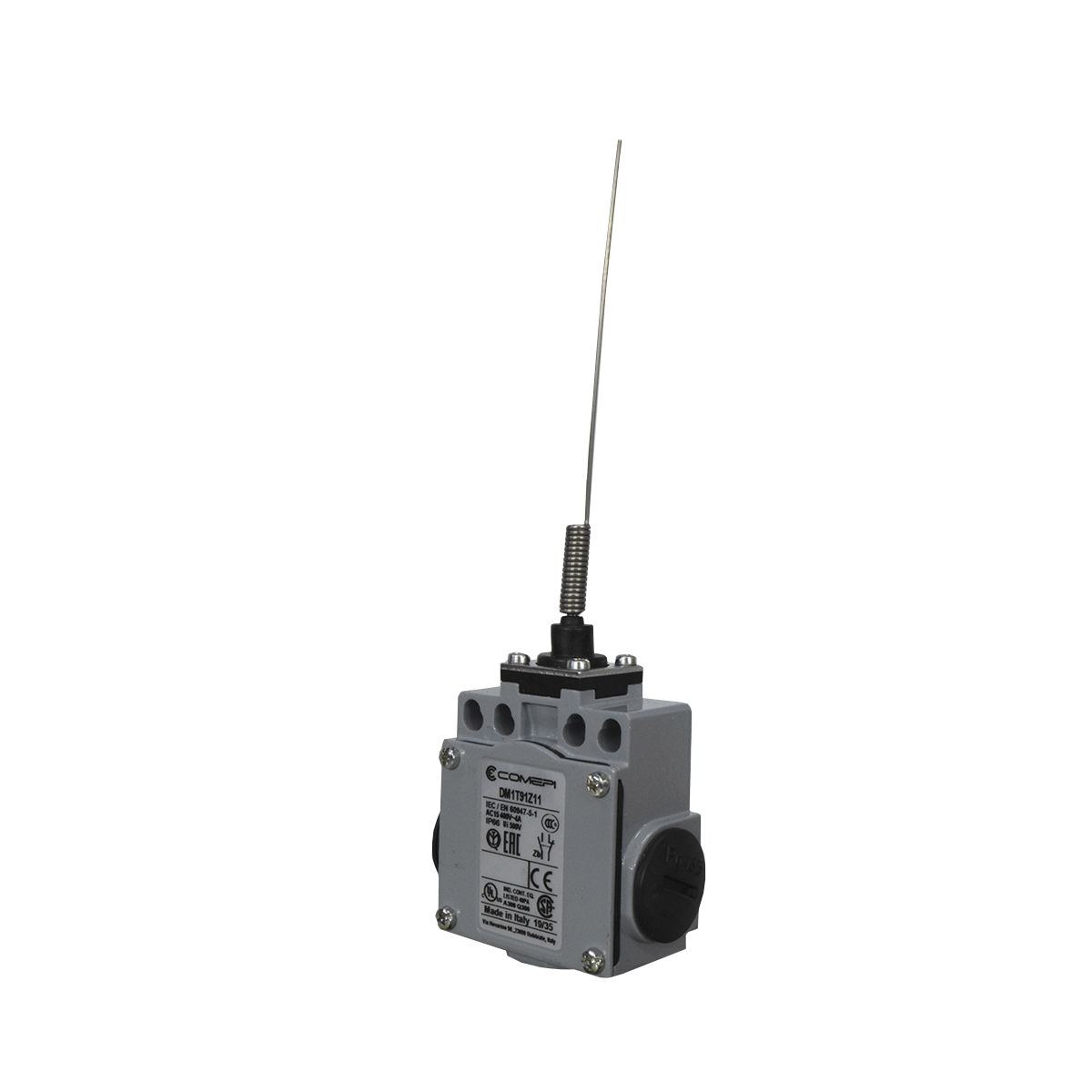

DM1T91Z11

DM1T91Z11
Actuator type: Metal rod + metal spring
Adjustable actuator: No
Protection degree: IP66

 COP85,680
Sin Stock

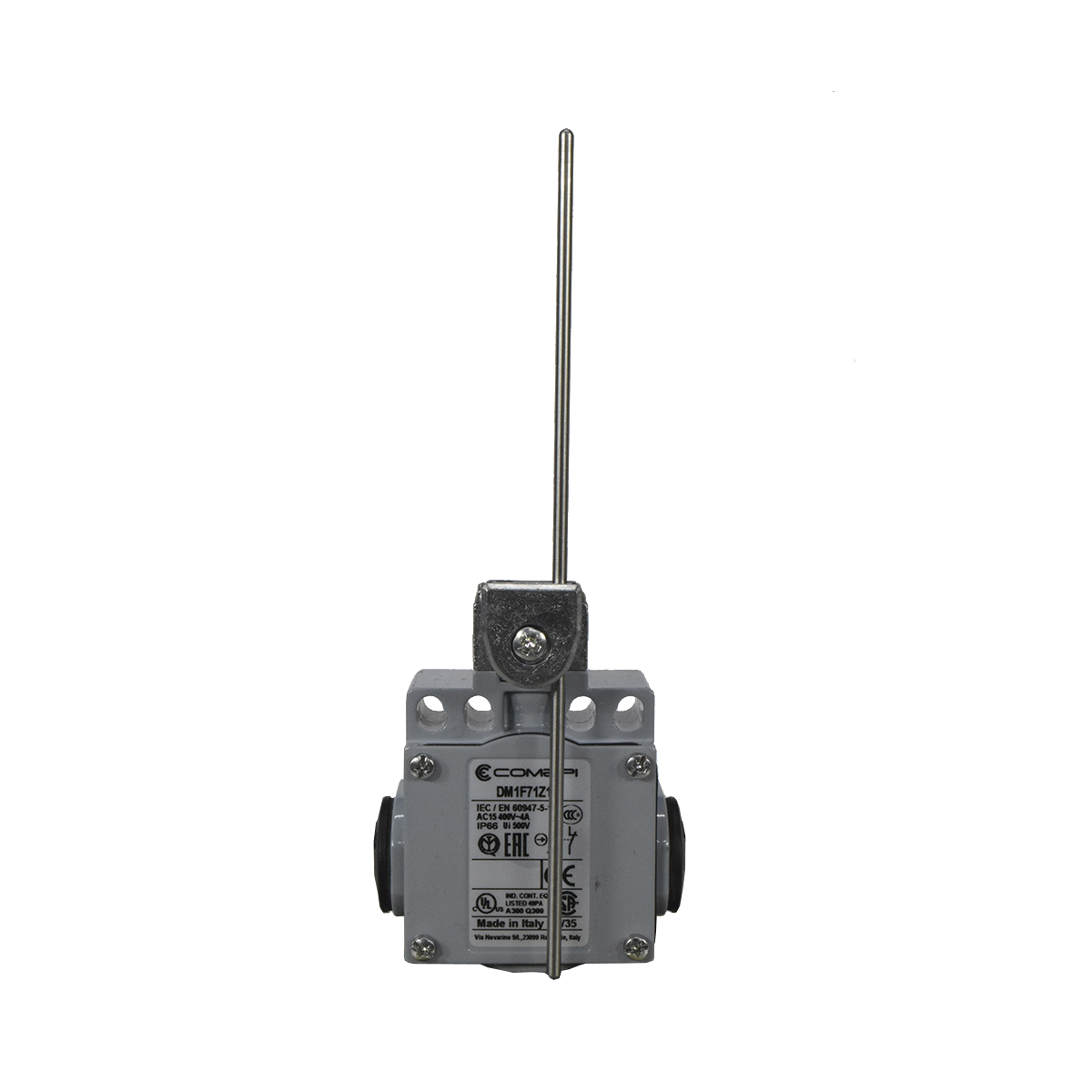

DM1F71Z11

DM1F71Z11
Actuator type: Metal rod
Adjustable actuator: Yes
Protection degree: IP66

 COP112,098
Sin Stock

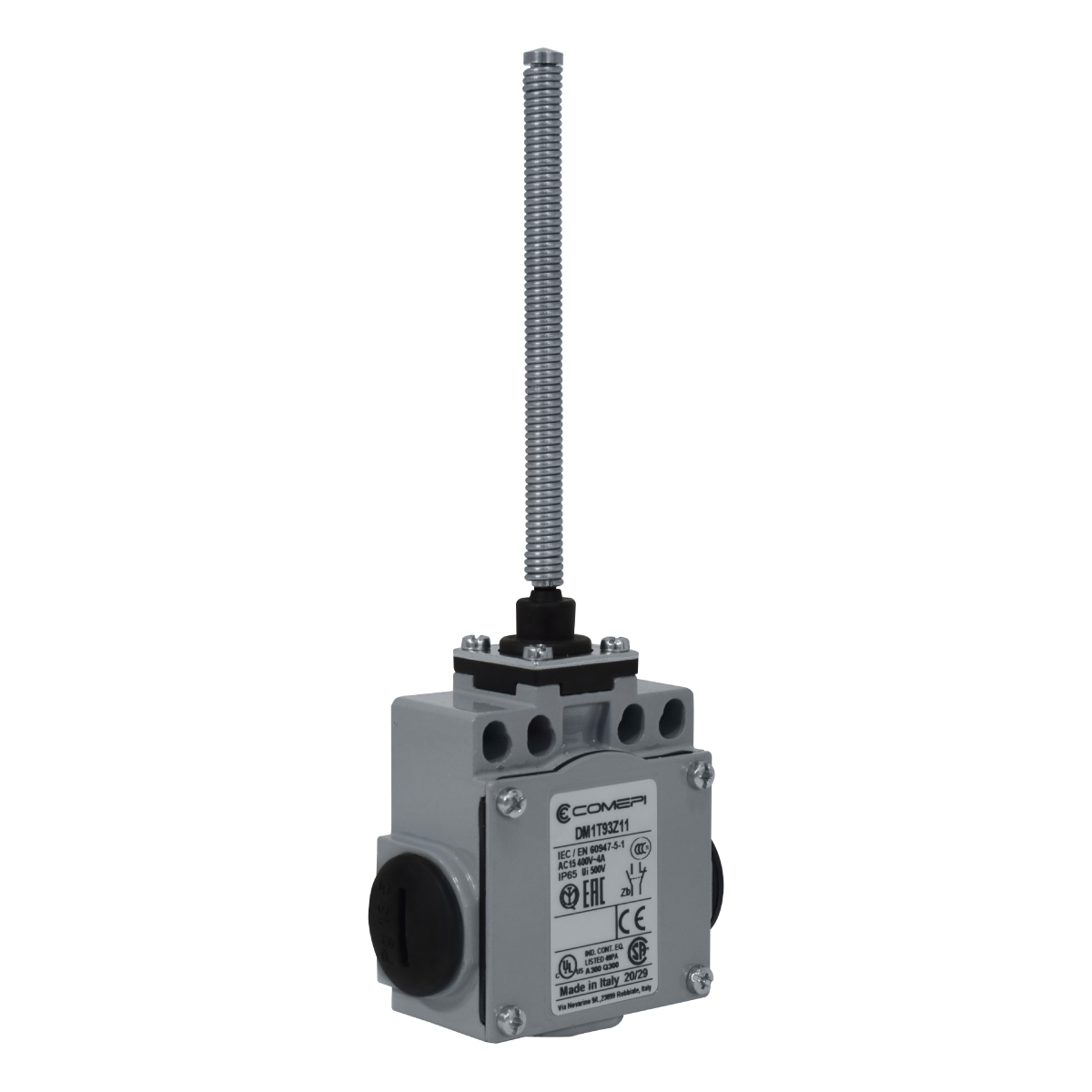

DM1T93Z11

DM1T93Z11
Actuator type: Metal spring
Adjustable actuator: No
Protection degree: IP65

 COP97,104
Sin Stock
