AP3T series limit switches

AP3T series limit switches

Certifications:

In stock







Body materialThermoplastic UV-V0 reinforced with epoxy resin
Contact configuratoin1NO + 1NC
Contact typeSnap-action
Contact ratingAC: 10A / 24V | 6A / 120V | 4A / 400V
DC: 6A / 24V | 0,55A / 125V | 0,4A / 250V
Protection degreeIP65
Cable gland entries1 x PG11 (cable gland not included)

Downloads

Comepi - Manuales y Fichas Técnicas
pdf
Comepi - Finales de carrera serie AP - Datasheets
(Size: 1.1 MB)



sku Summary Unit Price Qty

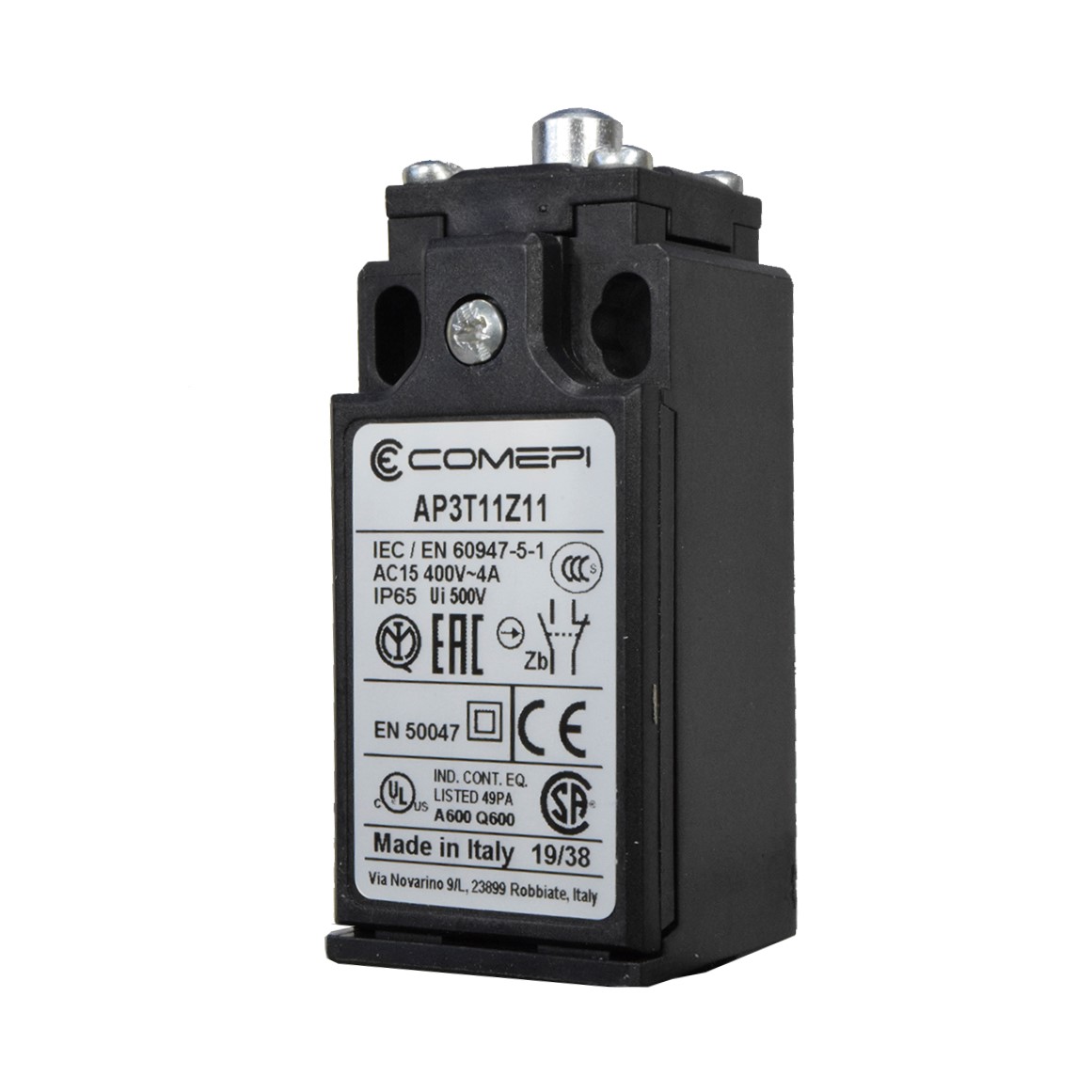

AP3T11Z11

AP3T11Z11
Actuator type: Plunger
Adjustable actuator: No

 COP49,980
Sin Stock

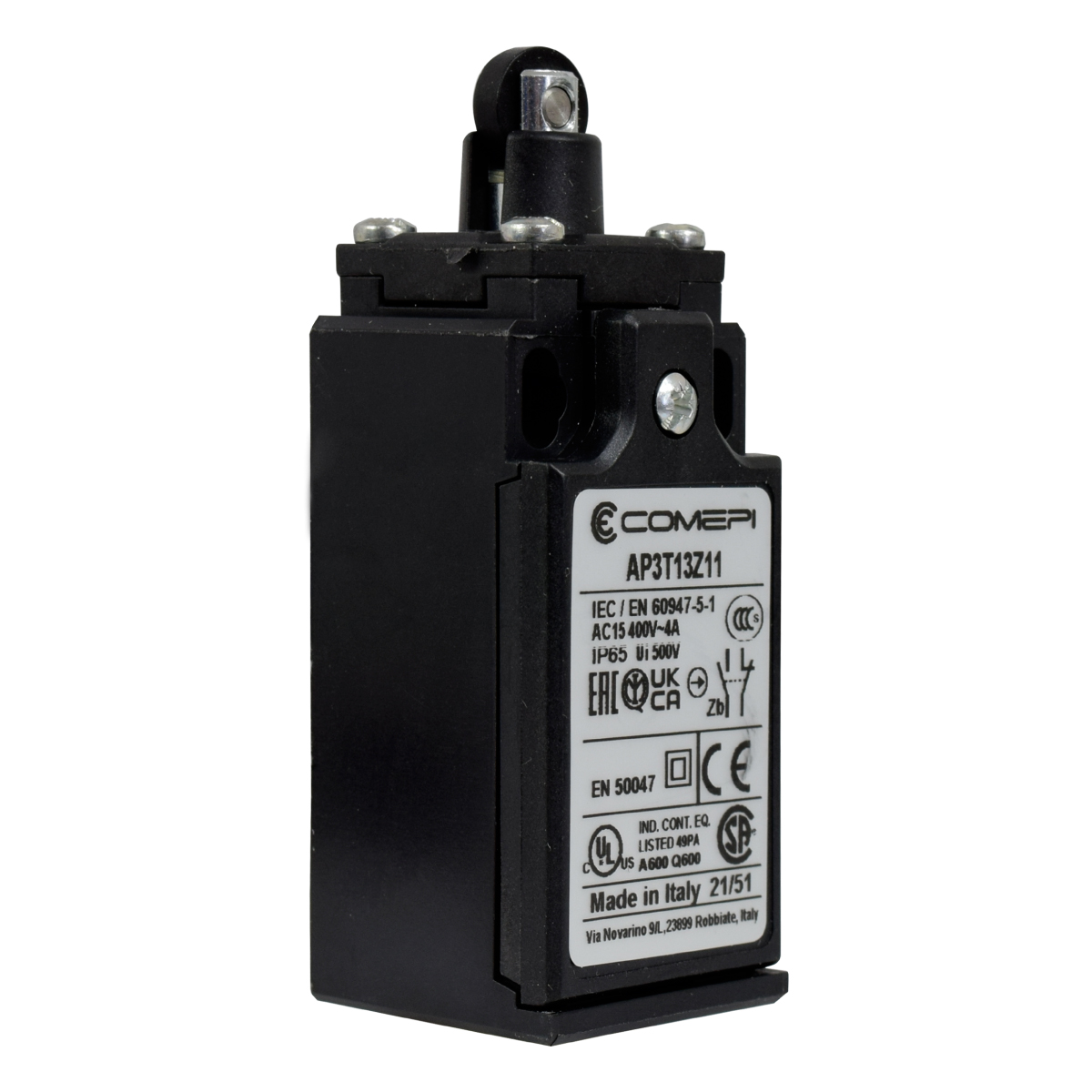

AP3T13Z11

AP3T13Z11
Actuator type: Plunger + plastic roller
Adjustable actuator: No

 COP57,120
Sin Stock

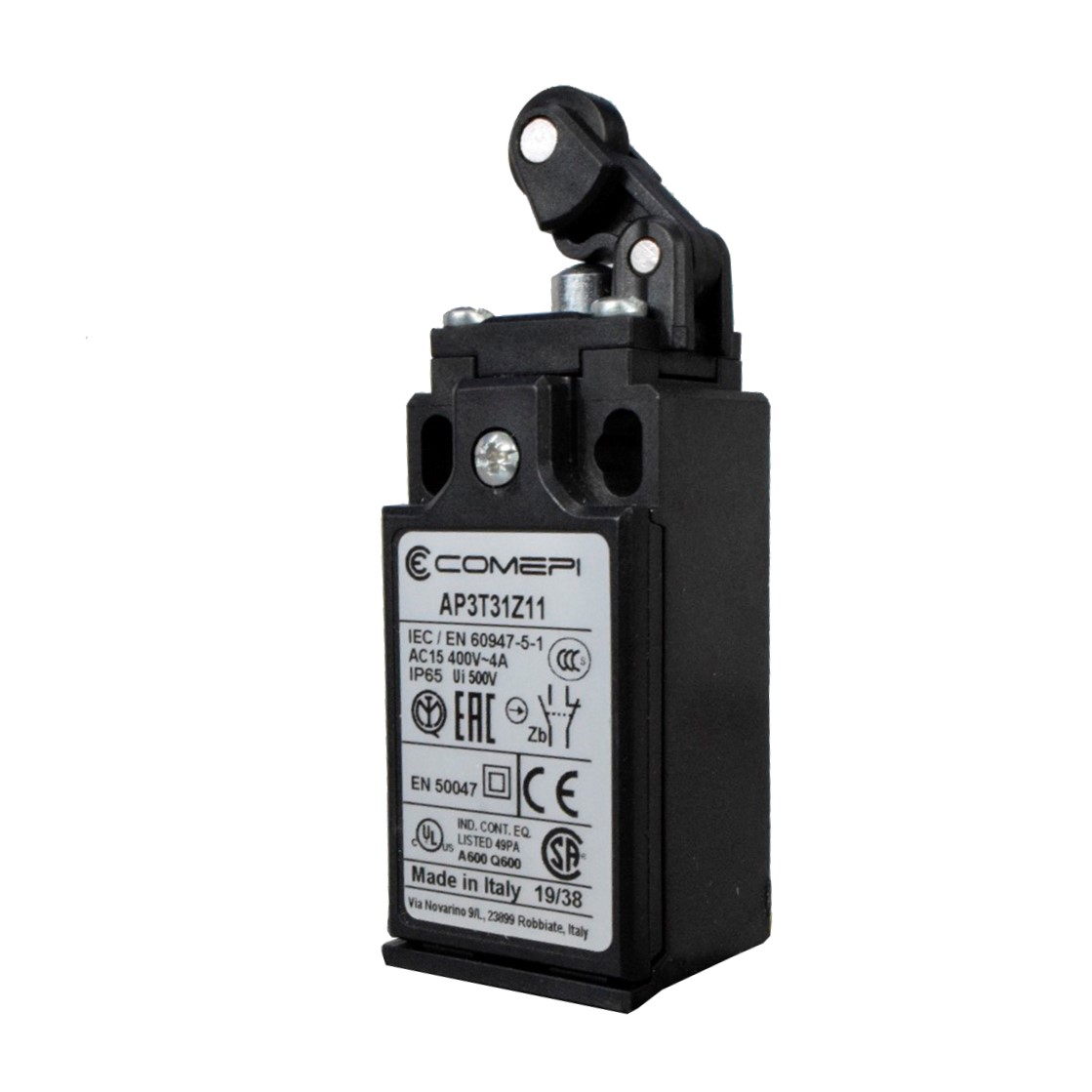

AP3T31Z11

AP3T31Z11
Actuator type: Plastic lever + plastic roller (Right)
Adjustable actuator: No

 COP58,548
Sin Stock

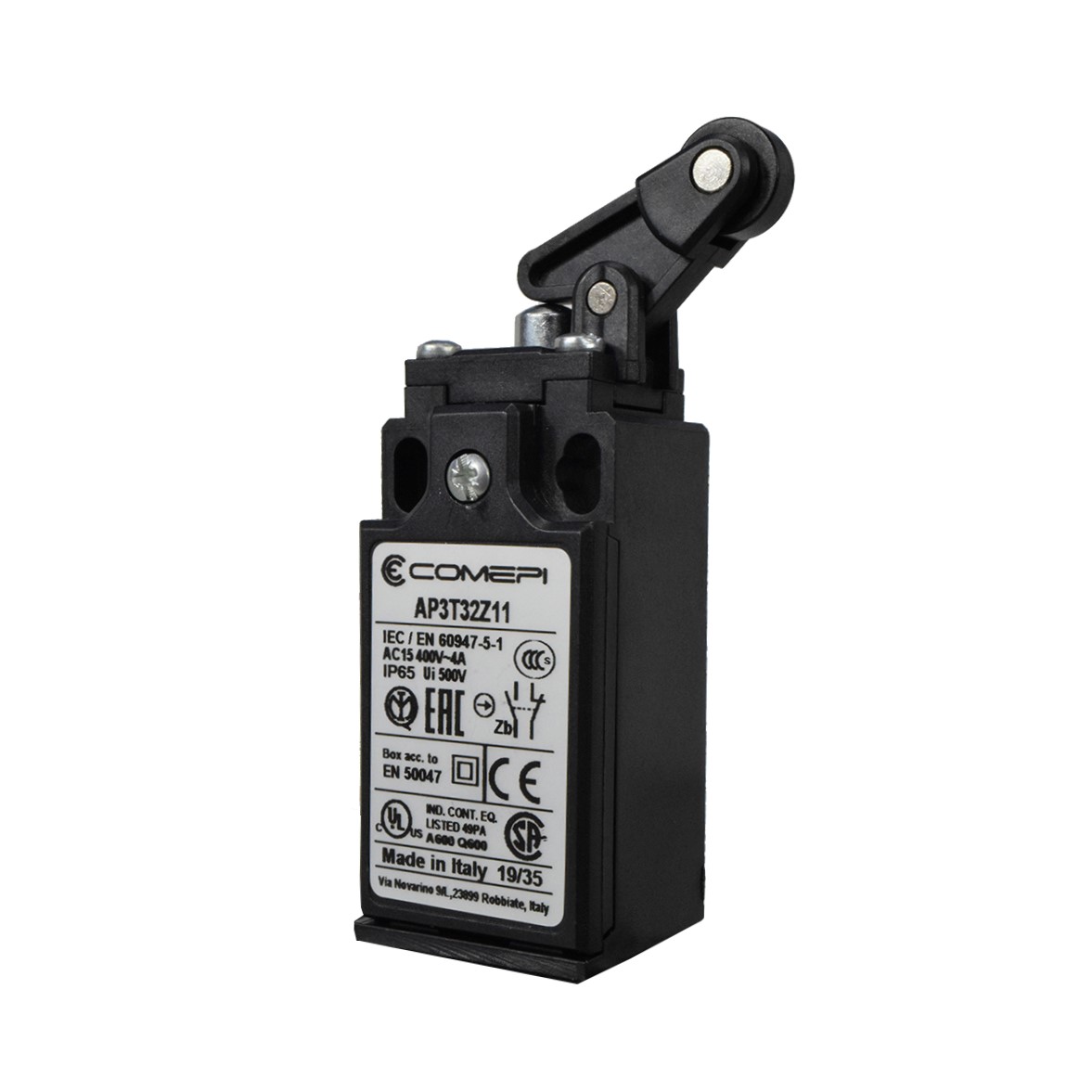

AP3T32Z11

AP3T32Z11
Actuator type: Plastic lever + plastic roller (Left)
Adjustable actuator: No

 COP60,690
Sin Stock

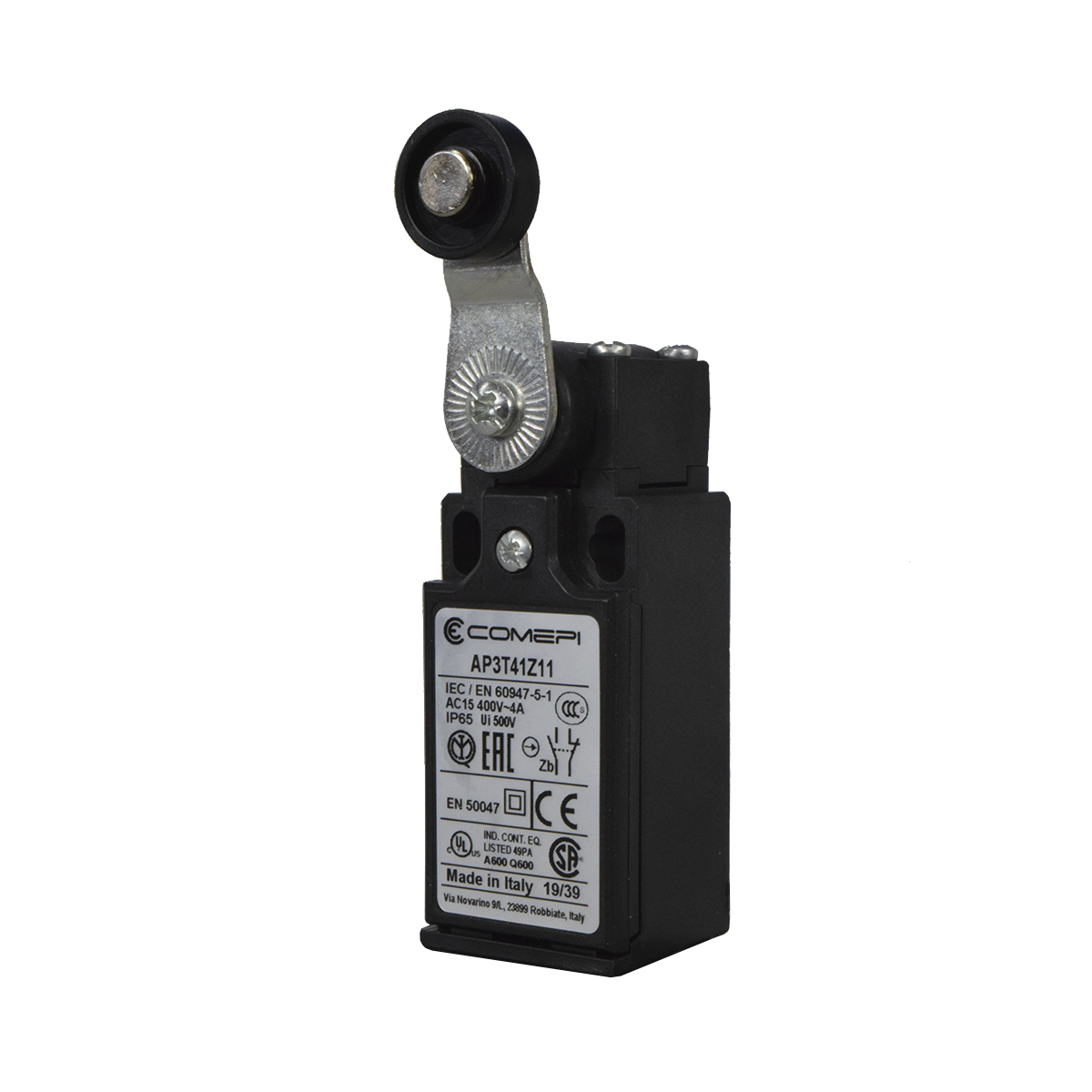

AP3T41Z11

AP3T41Z11
Actuator type: Metal lever + plastic roller
Adjustable actuator: No

 COP61,404
Sin Stock

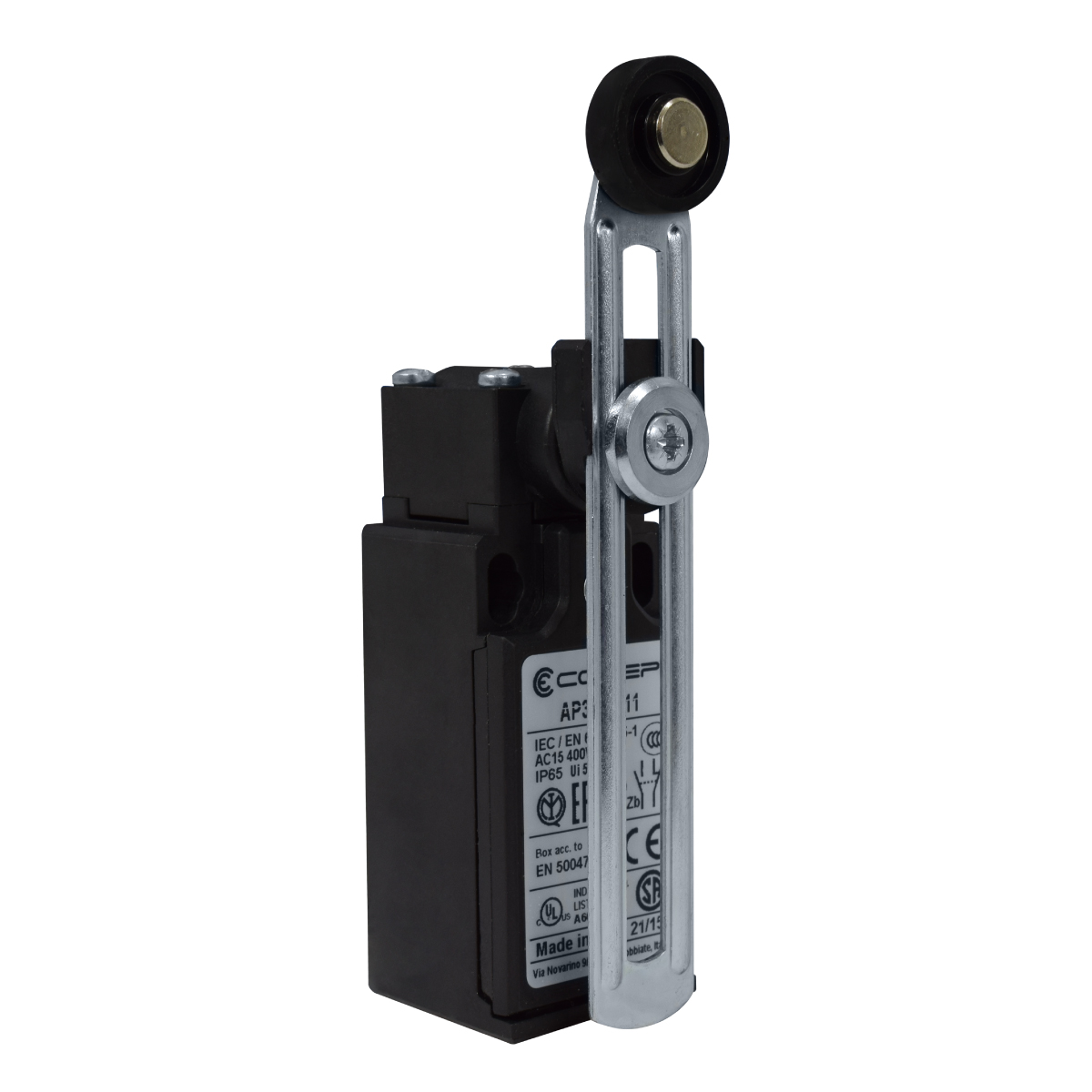

AP3T51Z11

AP3T51Z11
Actuator type: Metal lever + plastic roller
Adjustable actuator: Yes

 COP64,260
Sin Stock

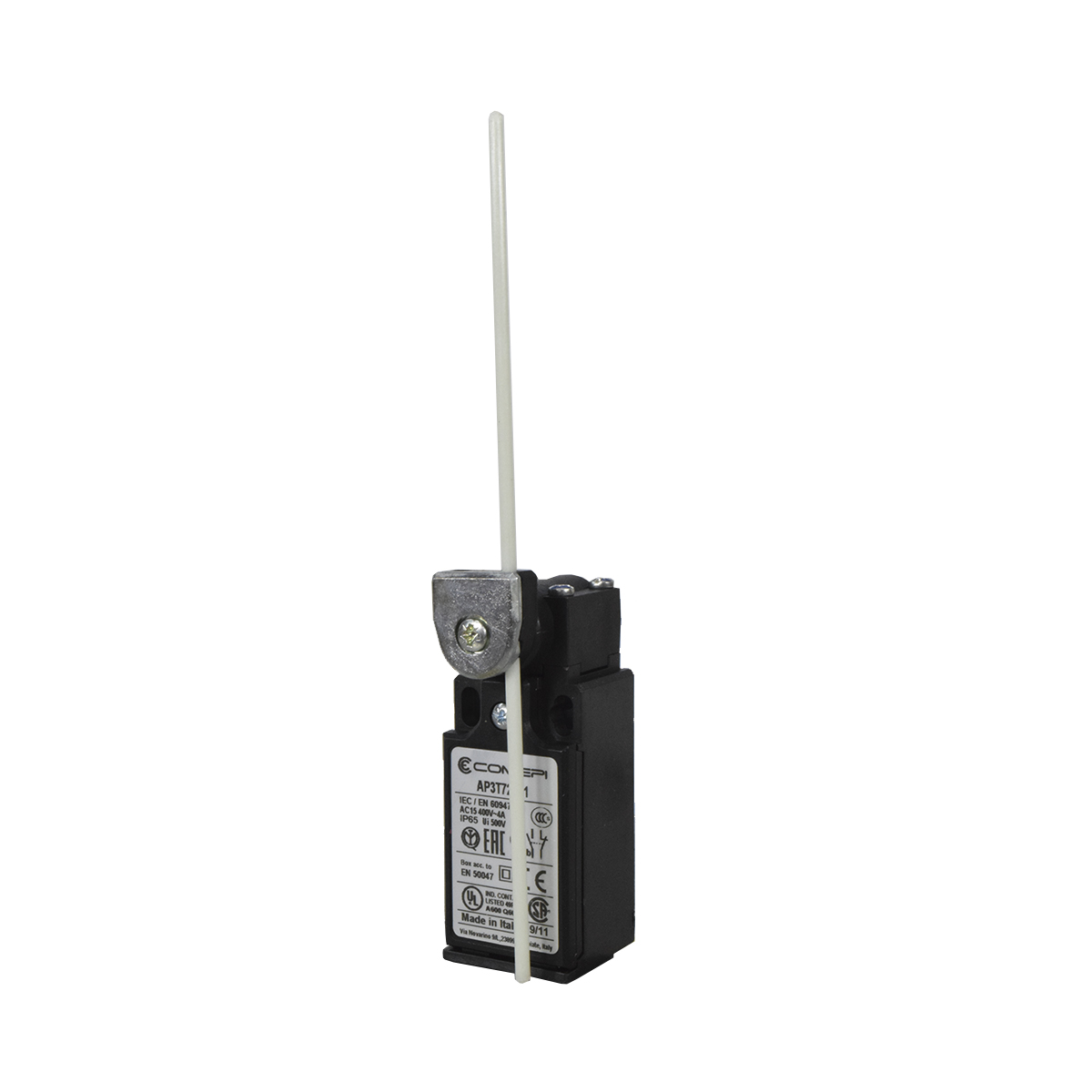

AP3T72Z11

AP3T72Z11
Actuator type: Plastic rod
Adjustable actuator: Yes

 COP64,974
Sin Stock

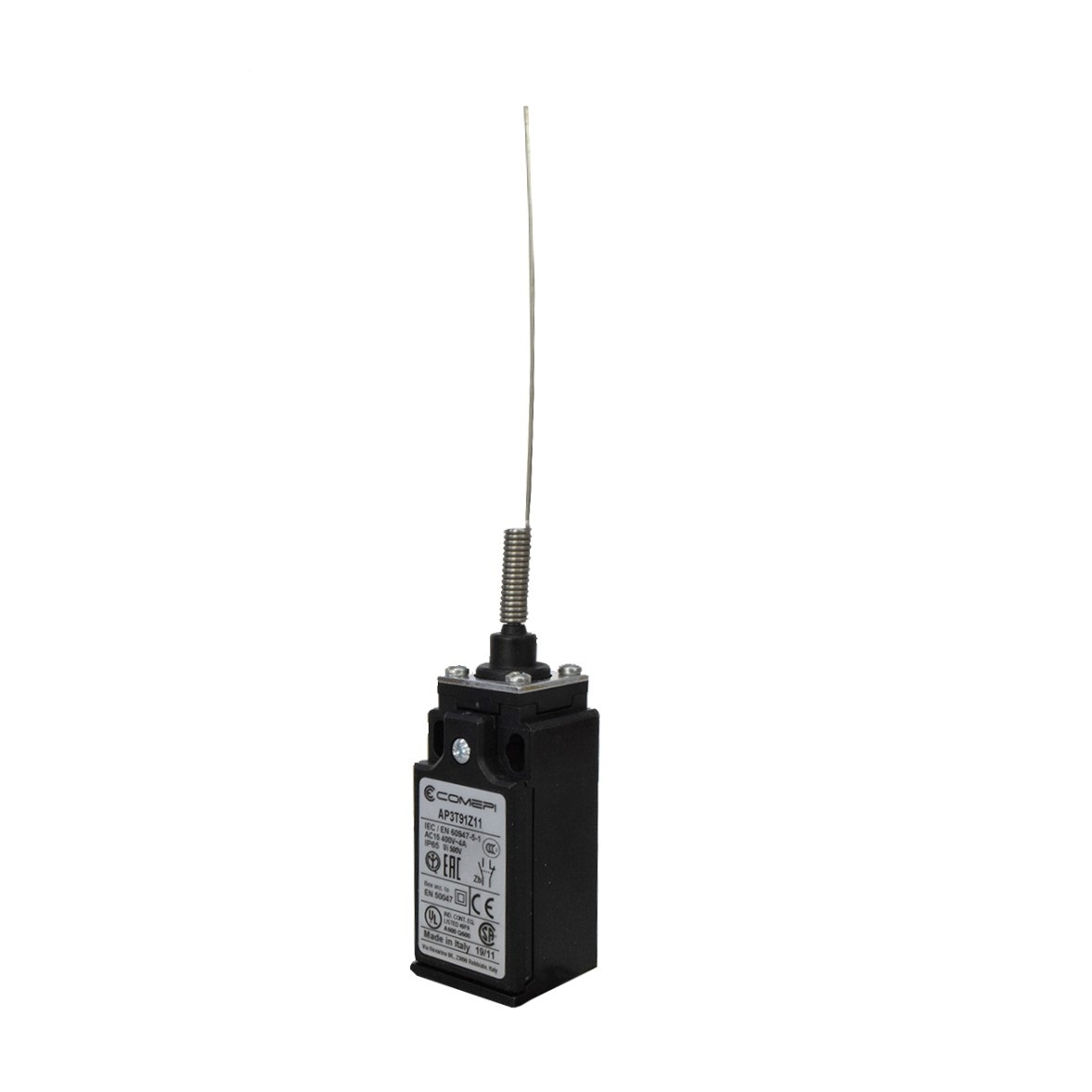

AP3T91Z11

AP3T91Z11
Actuator type: Metal rod + metal spring
Adjustable actuator: No

 COP55,763
Sin Stock
