Safety limit switches for rope without reset SDM1 series

Safety limit switches for rope without reset SDM1 series

Certifications:

In stock







Body materialAluminum
Maximum rope length6m in direct connection and 12m with fixing supports
Contact ratingAC: 10A / 24V | 6A / 120V | 4A / 230V
DC: 6A / 24V | 0,55A / 120V | 0,27A / 230V
Cable gland entries3 x PG13.5 (cable glands not included)
ConformityIEC/EN 60947-5-1
Protection degreeIP66

Downloads

Comepi - Manuales y Fichas Técnicas
pdf
Comepi - Safety limit switches for rope - Catalogue
(Size: 1.5 MB)
pdf
Comepi - SDM1K9000X11 - Datasheets
(Size: 3.7 MB)
pdf
Comepi - SDM1K96X11 - Datasheets
(Size: 3.5 MB)



sku Summary Unit Price Qty

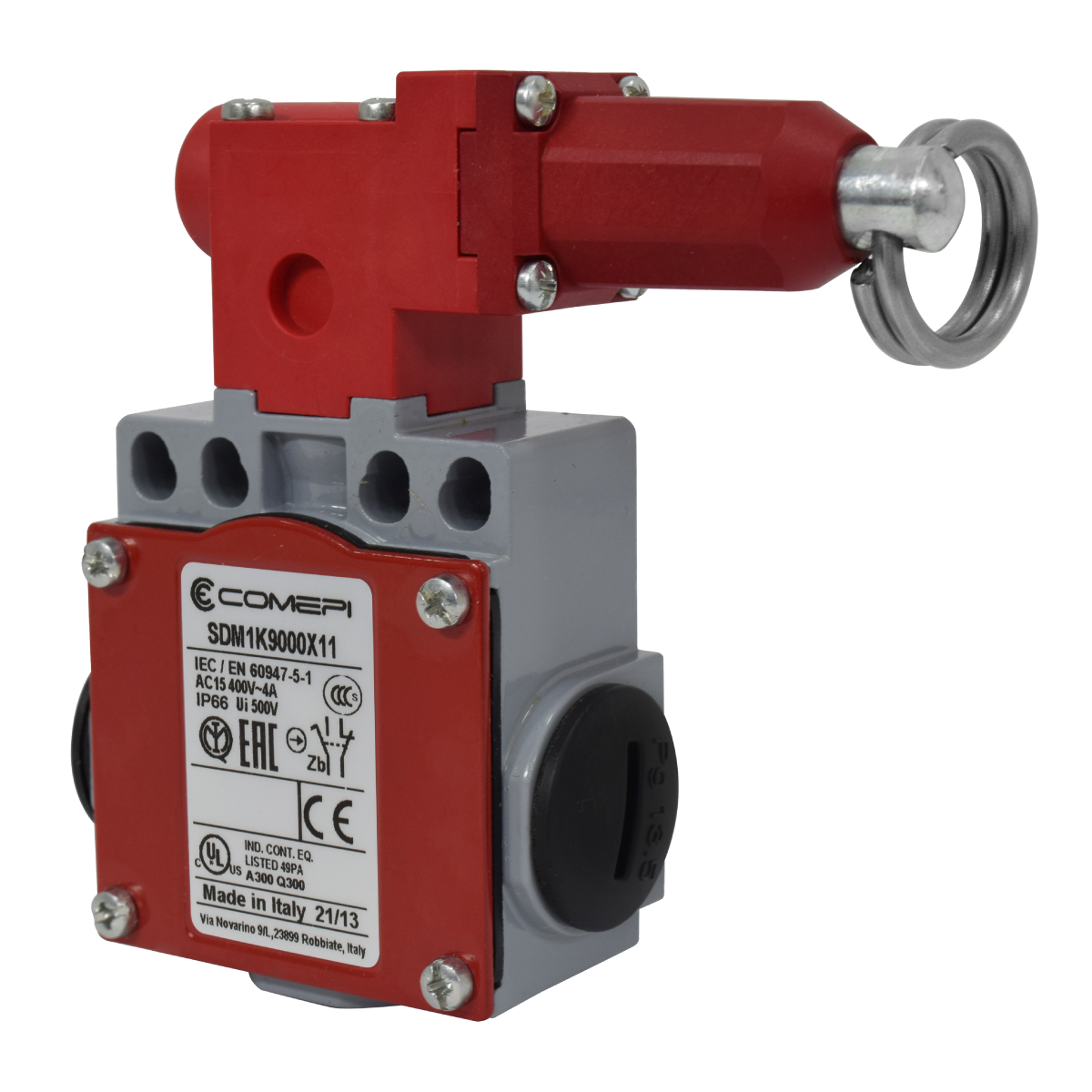

SDM1K9000X11

SDM1K9000X11
Head direction: Right 90°
Recomended force: 95N
Auxiliary contacts: 1NO + 1NC

 COP214,200
Sin Stock

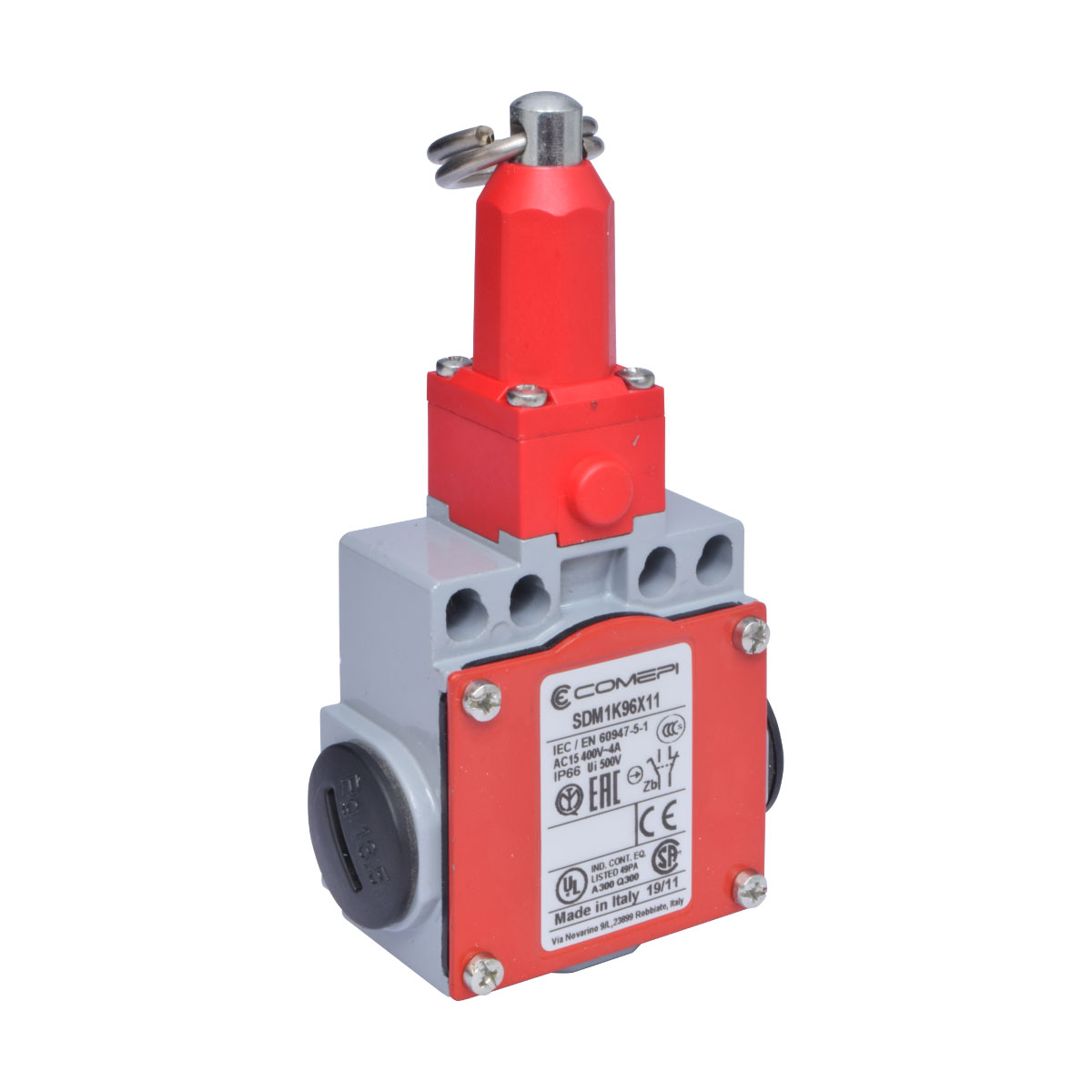

SDM1K96X11

SDM1K96X11
Head direction: Straight adjustable
Recomended force: 90N
Auxiliary contacts: 1NO + 1NC

 COP142,800
Sin Stock
