Ref: S3SF-S3/5/7 series selector switches

Name: S3SF-S3/5/7 series selector switches
Brand: Autonics
SKU: Selectores de muletilla serie S3SF-S3/5/7
Price: 32130 COP
Availability: OutOfStock

S3SF-S3/5/7 series selector switches

Certifications:

In stock

Specifications

Downloads

Especificaciones

Operation type	Maintained or with center return 2 or 3 position short lever
Operation degree	45° left - 45° right
Color type	White mark
Contact block	Contact A (NO) or 2NO
Type of contact block	Singular type
Capacity of contact block	110VAC /10A, 250VAC/6A
Base type	Plastic base
Protection	IP52
Temperature of work	-15°C a 55°C

Downloads

Autonics - Manuales y Fichas Técnicas

Autonics - S3SF - Catalogue

(Size: 6.5 MB)

Autonics - S3SF - Datasheet

(Size: 2 MB)

Autonics - S3SF - Manual

(Size: 695.1 KB)

sku	Summary	Unit Price	Qty

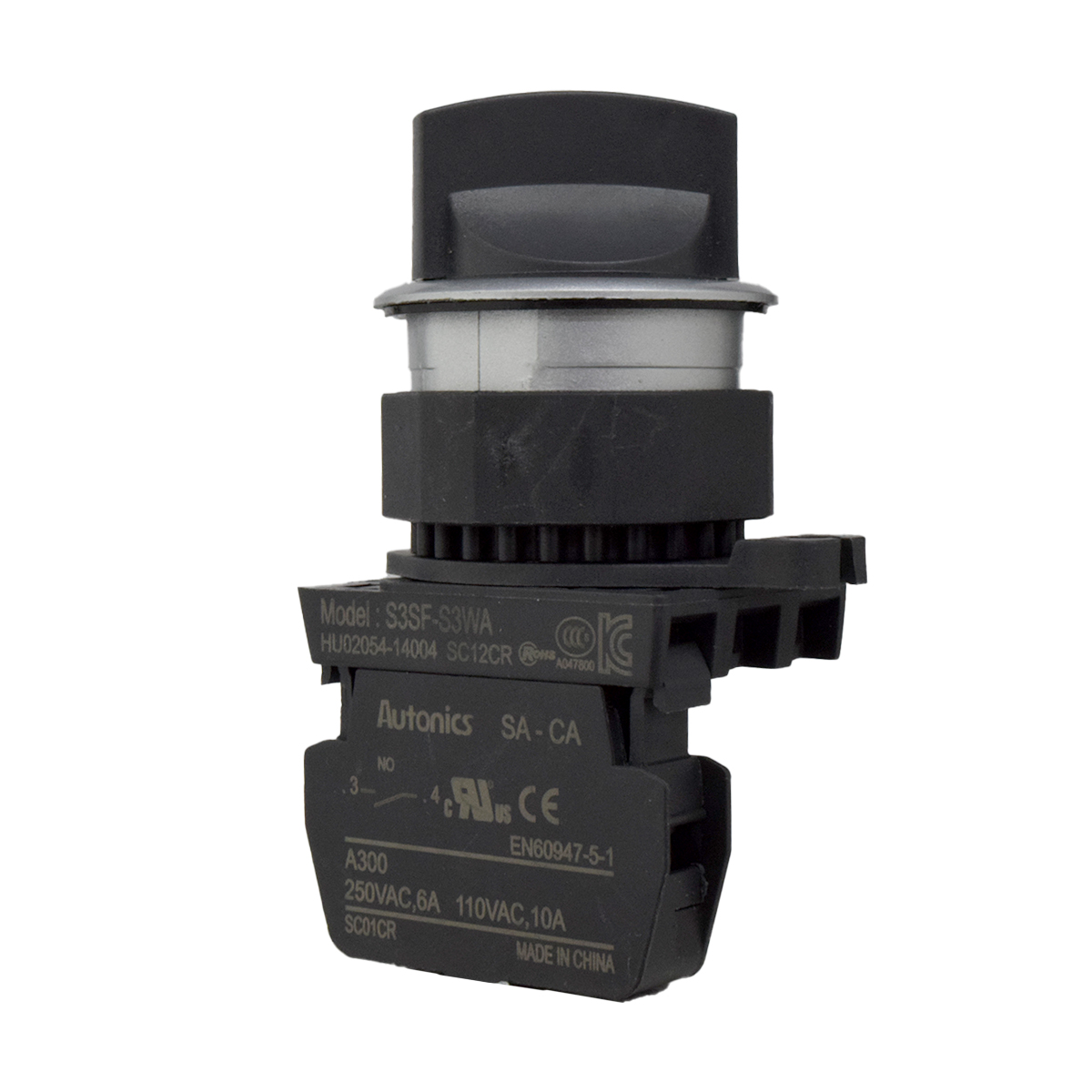

S3SF-S3WA	S3SF-S3WA Type: 2 position selector switches Drilling diameter: ø 30mm Indicator color: Black Positions: 2 Auxiliary contacts: 1NO Protection degree: IP52 Base type: Plastic base	COP32,130	Sin Stock

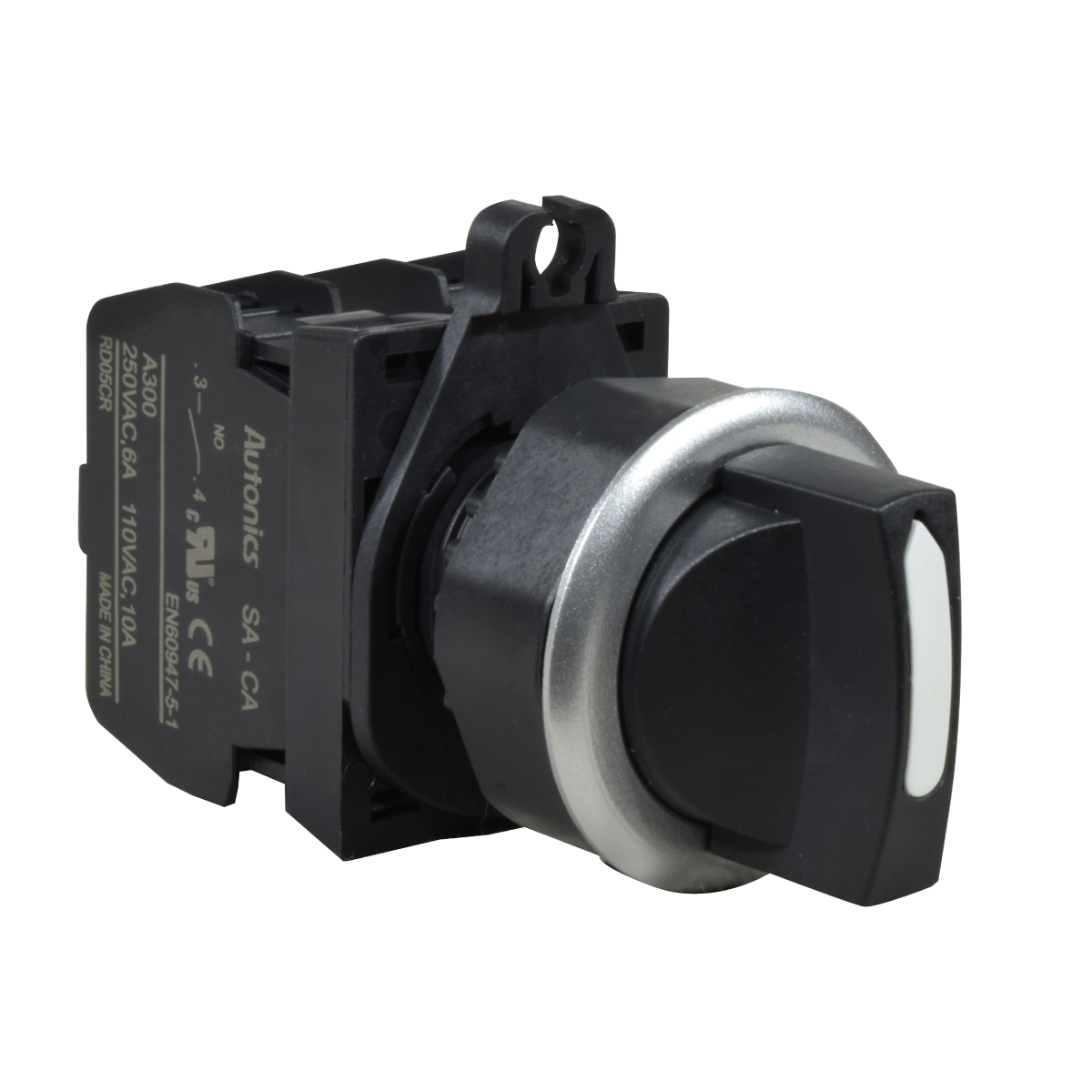

S3SF-S5W2A	S3SF-S5W2A Type: 3 position selector switches Drilling diameter: ø 30mm Indicator color: Black Positions: 3 Auxiliary contacts: 2NO Protection degree: IP52 Base type: Plastic base	COP42,840	Sin Stock

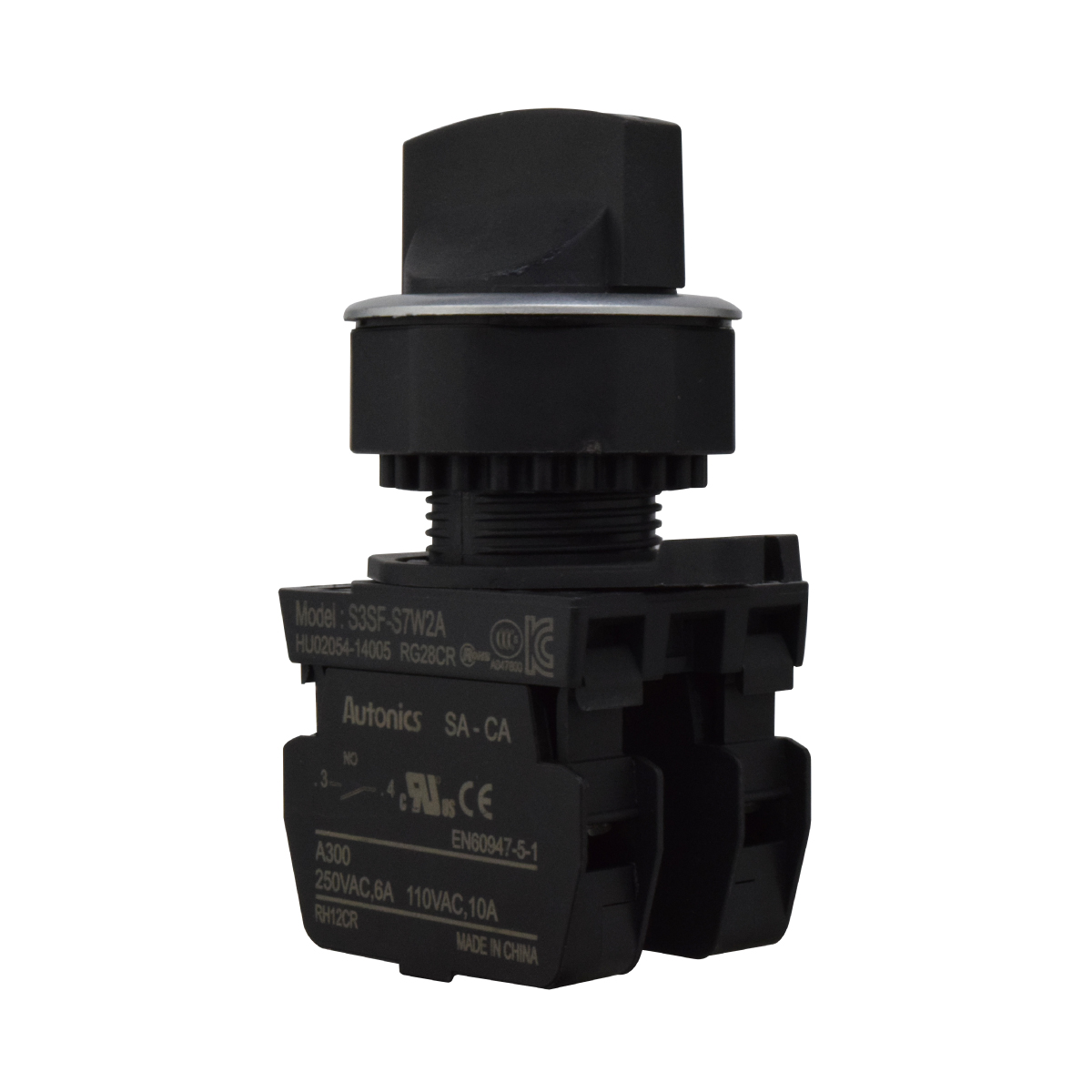

S3SF-S7W2A	S3SF-S7W2A Type: 3 position selector switches Drilling diameter: ø 30mm Indicator color: Black Positions: 3 Auxiliary contacts: 2NO Protection degree: IP52 Base type: Plastic base	COP44,268	Sin Stock
