Ref: WS series screw terminal blocks

Name: WS series screw terminal blocks
Brand: Degson
SKU: Borneras atornillables serie WS
Price: 1 COP
Availability: OutOfStock

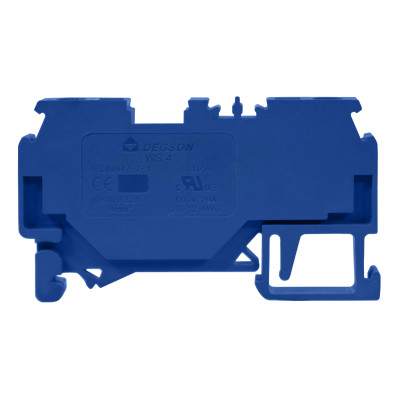

WS series screw terminal blocks

In stock

Specifications

Downloads

Type of terminal board	Standard or ground terminal block
Body material	PA(V-2) (Polyamide)
Cable Gauge Range	4mm² to 10mm² (28 - 8AWG)
Isolation voltage	600VAC
Rated current	15A to 50A (depend of reference)
Color of terminal blocks	Gray - Blue - Yellow-Green (depend of reference)
Screw type	Standard screw
Normativity	According with EN-60947-7-1 and UL1059

Degson - Manuales y Fichas Técnicas

Degson - 35885 - Datasheet

(Size: 141.6 KB)
