TAIS CUBE series DIN rail mounting brackets

TAIS CUBE series DIN rail mounting brackets

Certifications:

In stock



Boxes sizes2 - 3 - 4 - 5 - 6 - 7
Number of panel3 - 4 - 5

Downloads

Palazzoli - Manuales y Fichas Técnicas
pdf
Palazzoli - Serie Tais - Catalogo
(Size: 1.9 MB)
pdf
Palazzoli - TAIS CUBE - Catalogue
(Size: 576.5 KB)
pdf
Palazzoli - TAIS CUBE - Catalogue 2
(Size: 1.5 MB)



sku Summary Unit Price Qty

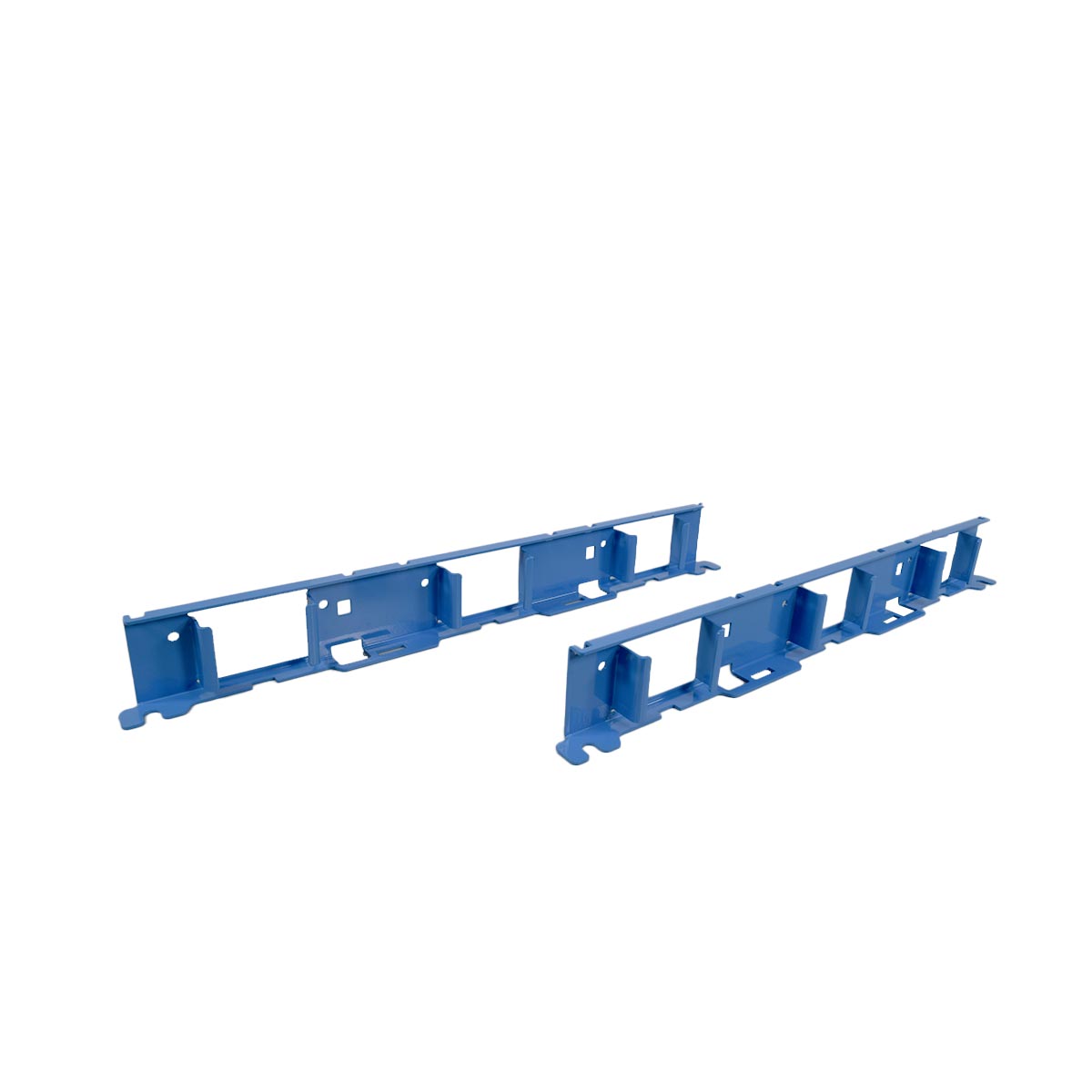

550562

550562
Series: TAIS CUBE
Type: Rail mounting brackets
Box size: 2
Number of panels: 3

 COP139,087
Sin Stock

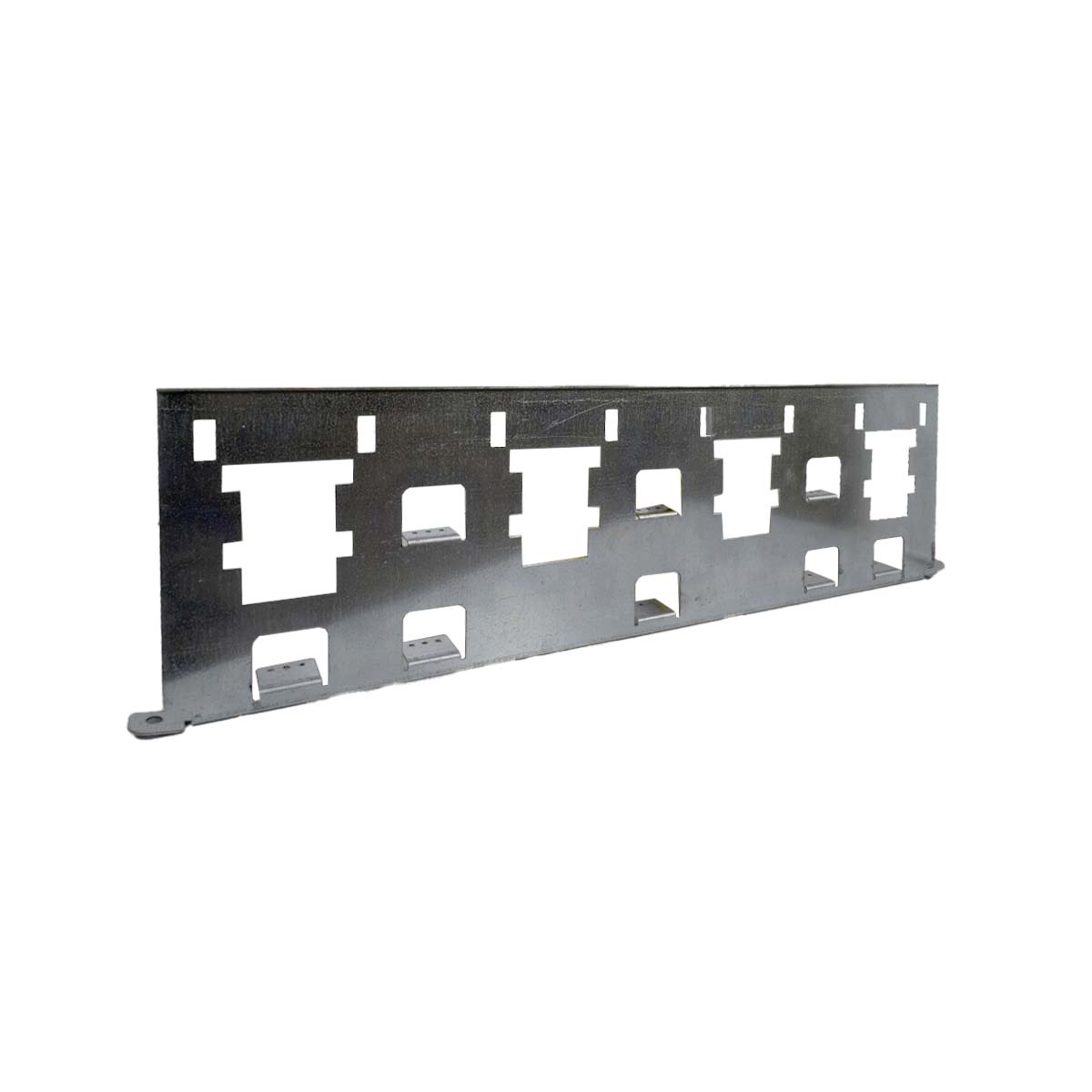

550564

550564
Series: TAIS CUBE
Type: Rail mounting brackets
Box size: 4 - 5
Number of panels: 4

 COP225,124
Sin Stock

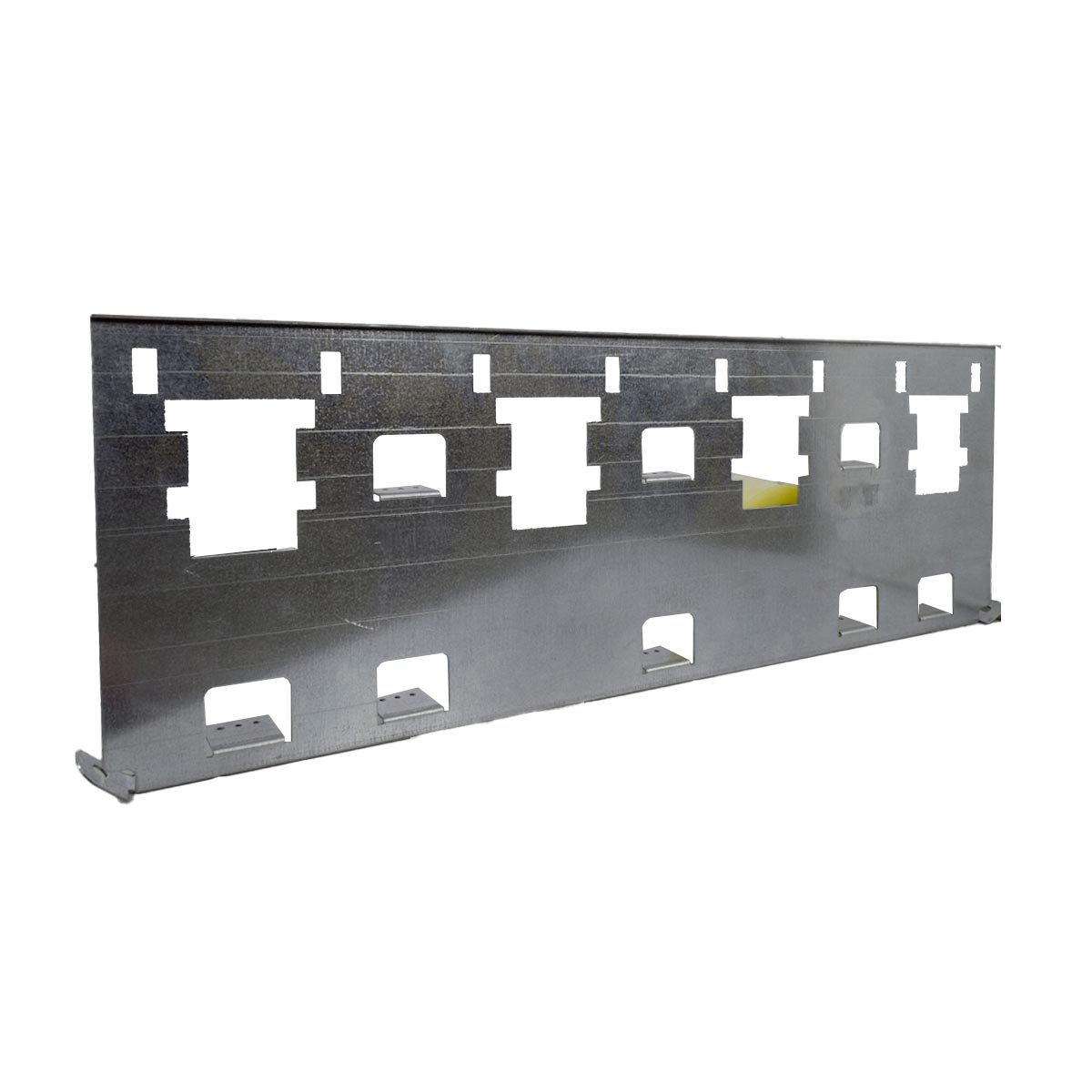

550565

550565
Series: TAIS CUBE
Type: Rail mounting brackets
Box size: 5
Number of panels: 4

 COP112,384
Sin Stock
550563

550563
Series: TAIS CUBE
Type: Rail mounting brackets
Box size: 3
Number of panels: 3

 COP169,432
Sin Stock
550566

550566
Series: TAIS CUBE
Type: Rail mounting brackets
Box size: 6
Number of panels: 5

 COP317,230
Sin Stock

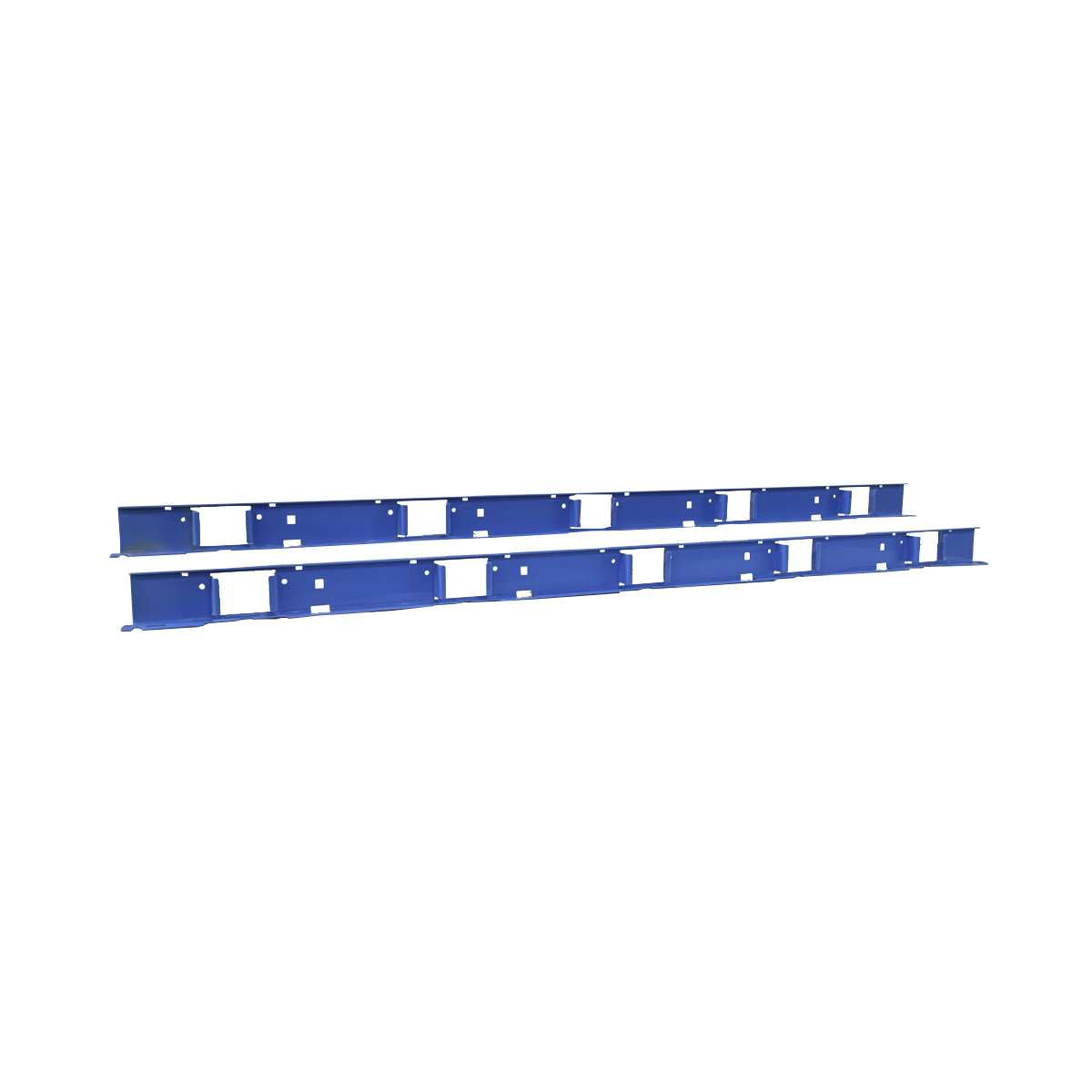

550567

550567
Series: TAIS CUBE
Type: Rail mounting brackets
Box size: 7
Number of panels: 5

 COP473,810
Sin Stock
