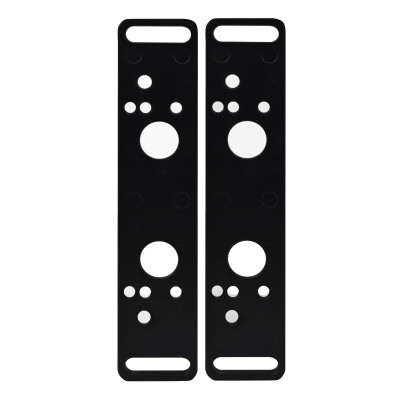

SPH series couple support for complentary hinges

SPH series couple support for complentary hinges

Certifications:

In stock


Operating temperature-20 to 80 ° C

Downloads

Comepi - Manuales y Fichas Técnicas
pdf
Comepi - Bases para bisagras - Datasheet
(Size: 410.9 KB)



sku Summary Unit Price Qty
SPH-FX1

SPH-FX1
Type: Couple support for mechanical hinges
Dimensions: 30 x 128 x 5mm

 COP102,102
Sin Stock
SPH-FX2

SPH-FX2
Type: Couple support for mechanical hinges
Dimensions: 30 x 88 x 5mm

 COP81,682
Sin Stock
