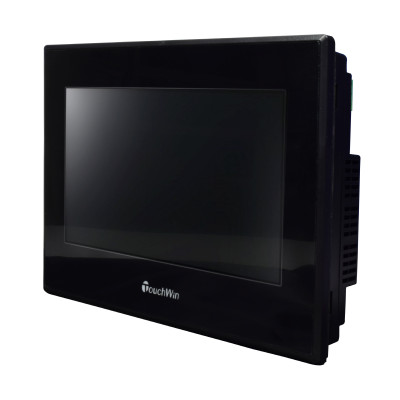

ZG series HMI + PLC

ZG series HMI + PLC

Certifications:

In stock





















Power supply24VDC
Display typeTFT LCD, LED backlight
Color16 millions of true colors
Touch screen 4-wire resistor touch screen
User program capacity128KB
Processing time0,05 us
I/O connectorTerminal block
InputsNPN 24VDC (Optocoupled insulation)
Data Register (D)11.548 (words)
Internal coils (M)11.008 points
Timers (T)704
Counters (C )704
FlashROM Registers (FD)8.144 (words)
Programming modeInstruction, ladder
ClockReal time clock
ProtectionIP65
Programming PLC softwareXDPro included
Programming softwareTouchWin included
CommunicationsRS232 / RS485
Communication protocolsModBus, Free protocol

Downloads

Touchwin - Manuales y Fichas Técnicas
pdf
Touchwin - ZG - Manual
(Size: 2.3 MB)
Touchwin Software
pdf
Touchwin Instruction manual
(Size: 915.8 KB)
Manual de usuario para programación y manejo de la herramienta Touchwin.
zip
Touchwin v2.d3k
(Size: 38.5 MB)
Software para programación de HMI's Serie ZG y TG.
7z
Touchwin v2.E5
(Size: 99 MB)
Software para programación de HMI's Serie ZG y TG.
Xinje Software
zip
Touchwin-Programmer software
(Size: 60.4 MB)
Software para programación de HMI's serie ZG y TG.



sku Summary Unit Price Qty
68192

ZG3-30R
Digital inputs: 16 NPN
Digital outputs: 14 relay
Interface type: Touch
Display size: 7"
Display type: 16M colors

 COP1,930,775
Sin Stock
68194

ZG3-30T
Digital inputs: 16 NPN
Digital outputs: 14 NPN
Interface type: Touch
Display size: 7"
Display type: 16M colors

 COP2,130,100
Sin Stock
68191

ZG3-20R-4
Digital inputs: 10 NPN
Digital outputs: 10 relay
Interface type: Touch
Display size: 4,3"
Display type: 16M colors

 COP1,606,500
Sin Stock
68193

ZG3-20T-4
Digital inputs: 10 NPN
Digital outputs: 10 NPN
Interface type: Touch
Display size: 4,3"
Display type: 16M colors

 COP1,458,345
Sin Stock
