Ref: PT series panel thermostat

Name: PT series panel thermostat
Brand: Plastim
SKU: Termostatos para tablero serie PT
Price: 44268 COP
Availability: OutOfStock

PT series panel thermostat

In stock

Specifications

Downloads

Temperature range	0 - 60°C
Output type	SPDT relay or SPST relay (depend of model)
Contact capacity	15A a 110VAC / 10A a 250VAC
Mounting	DIN rail
Features	Heating, Cooling, Heating and cooling (depend of model)
Operation temperature	-25 a 80°C
Protection	IP20
Size	PTHT, PTVT (H 61 x W 34 x D 38mm) PTHVT (H 65 x W 59 x D 42mm)

Plastim - Manuales y Fichas Técnicas

Plastim - PT - Datasheets

(Size: 188.1 KB)

sku	Summary	Unit Price	Qty

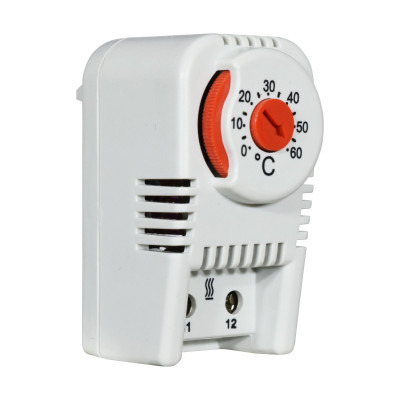

PTHT	PTHT Temperature range: 0 - 60°C Operation modes: Heater Control outputs: 1 SPST relay Contact capacity: 10A / 250VAC,15A / 110VAC	COP44,268	Sin Stock
PTVT	PTVT Temperature range: 0 - 60°C Operation modes: Cooler Control outputs: 1 SPST relay Contact capacity: 10A / 250VAC,15A / 110VAC	COP45,696	Sin Stock

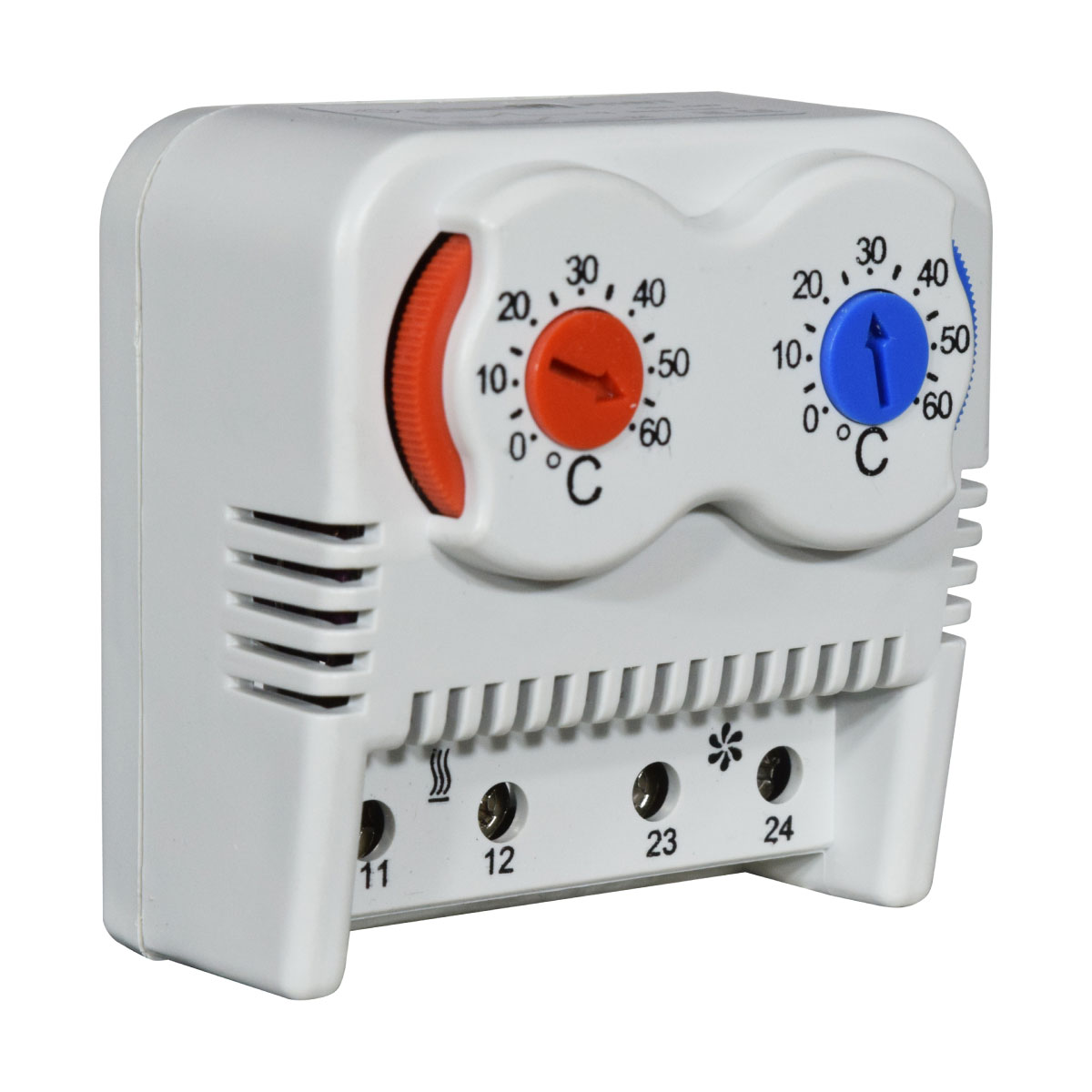

PTHVT	PTHVT Temperature range: 0 - 60°C Operation modes: Heater + cooler Control outputs: 1 SPDT relay Contact capacity: 10A / 250VAC,15A / 110VAC	COP67,116	Sin Stock
