TX4M digital temperature controllers

TX4M digital temperature controllers

Certifications:

In stock













Power supply100 - 230VAC / DC
DisplayLED
Control modeON-OFF, P, PI, PD, PID
RTD input typePt100, Pt500, Pt1000, Ni100, PtC1K, NTC10K
TC input typeK, J, S, R, L, T
Analog current inputs0 - 20mA / 4 - 20mA
Sampling period50ms
Contact capacity3A a 250VAC / 30VDC
SSR output20mA at 12VDC (depend of reference)
ProtectionIP50 (frontal panel)
SizeH 72 x W 72 x D 51 mm
Programming SoftwareDAQ Master (free to download)

Downloads

Autonics Software
link
Autonics - DAQMaster 4.0.1.5883 32 bits - Software
link
Autonics - DAQMaster 4.0.1.5883 64 bits - Software
Autonics - Manuales y Fichas Técnicas
pdf
Autonics - TX - Catalogue
(Size: 2.7 MB)
pdf
Autonics - TX - Manual
(Size: 1 MB)
pdf
Autonics - TX - Technical Description
(Size: 850.8 KB)



sku Summary Unit Price Qty

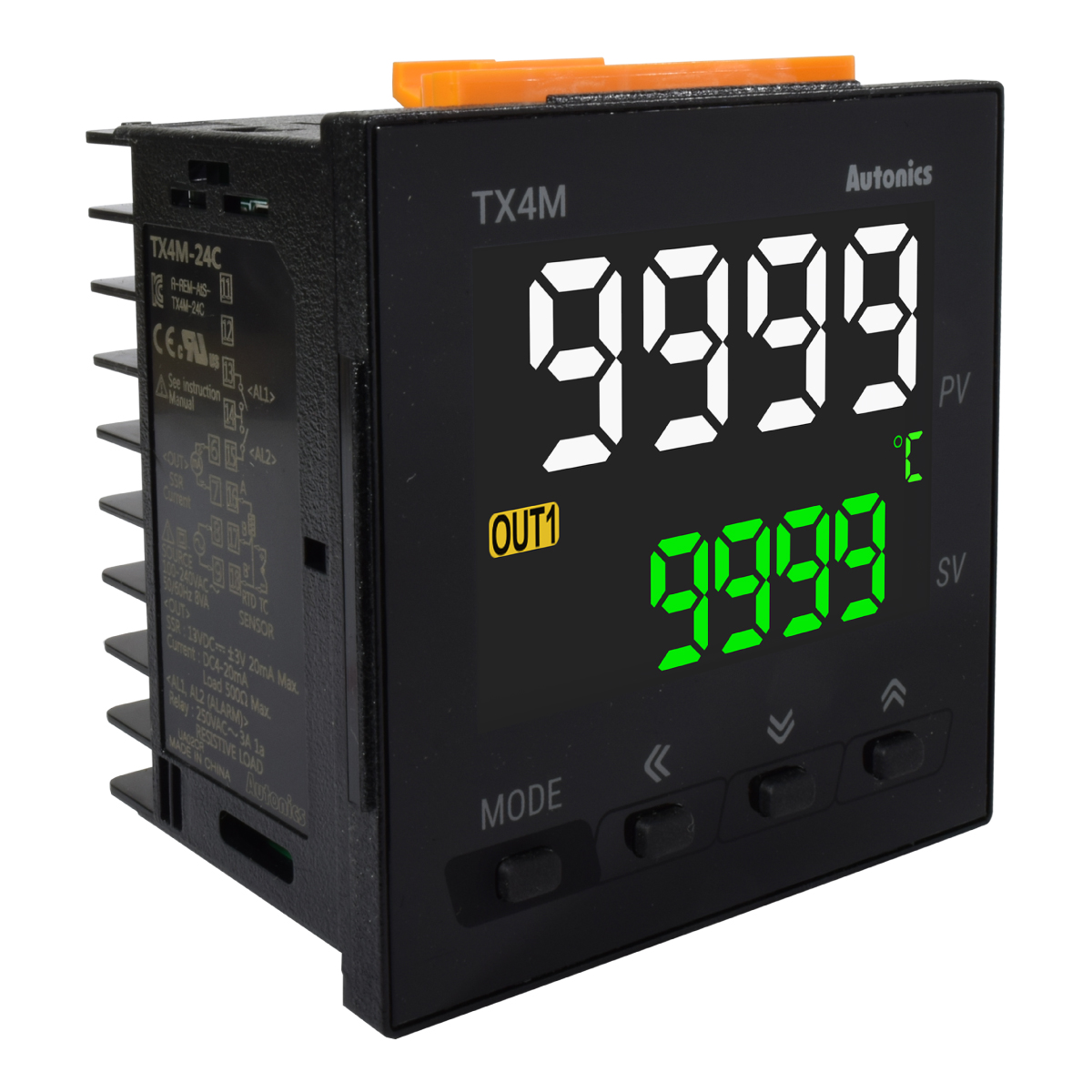

TX4M-24C

TX4M-24C
Series: TX4M
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Control outputs: 1 SSR or 1 current
Auxiliar digital outputs: 2 SPST relay
Number of setpoints: 1
Control type: ON-OFF, P, PI, PD, PID
Dimensions: H 72 x W 72mm

 COP526,218
Sin Stock

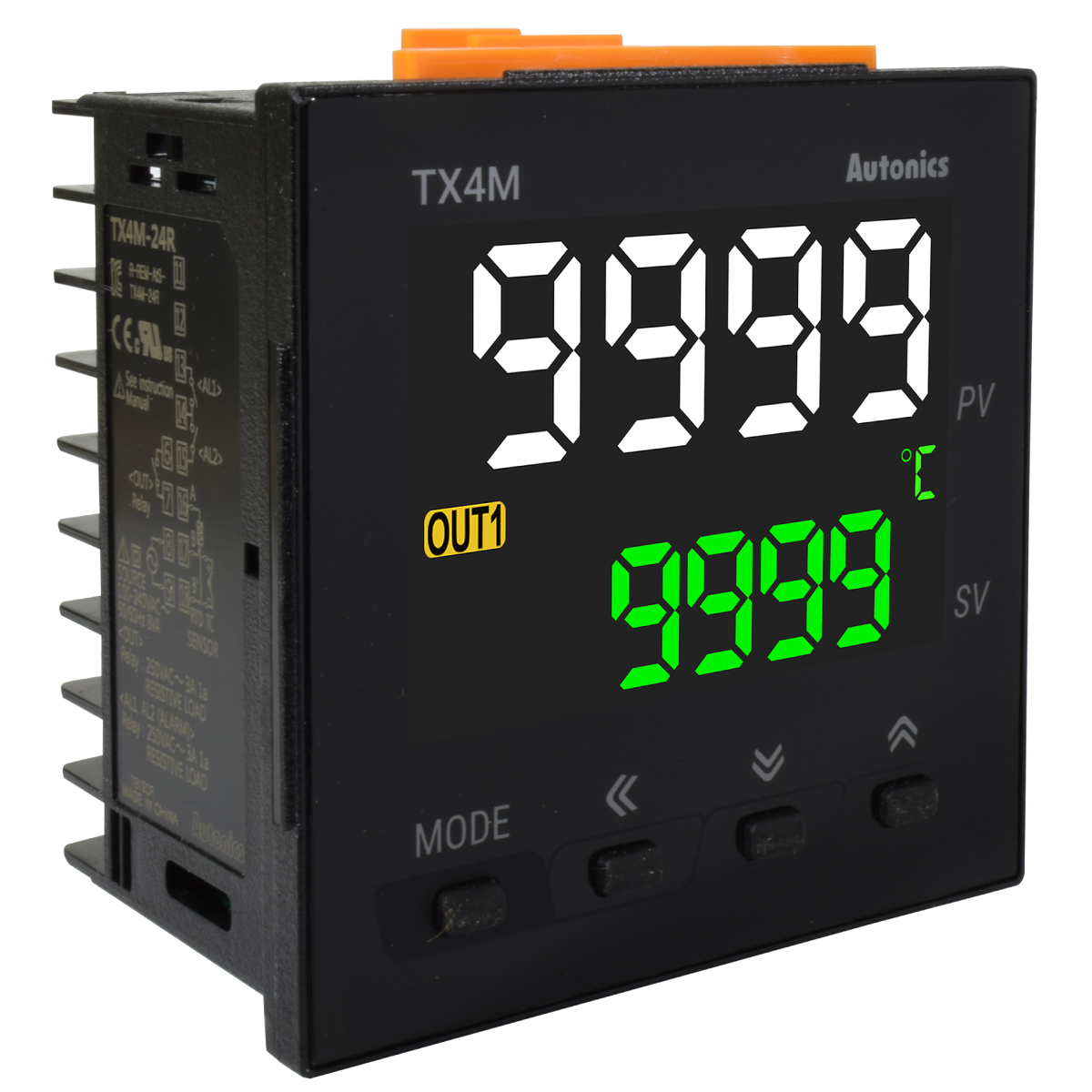

TX4M-24R

TX4M-24R
Series: TX4M
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Control outputs: 1 SPST relay
Auxiliar digital outputs: 2 SPST relay
Number of setpoints: 1
Control type: ON-OFF, P, PI, PD, PID
Dimensions: H 72 x W 72mm

 COP514,080
Sin Stock

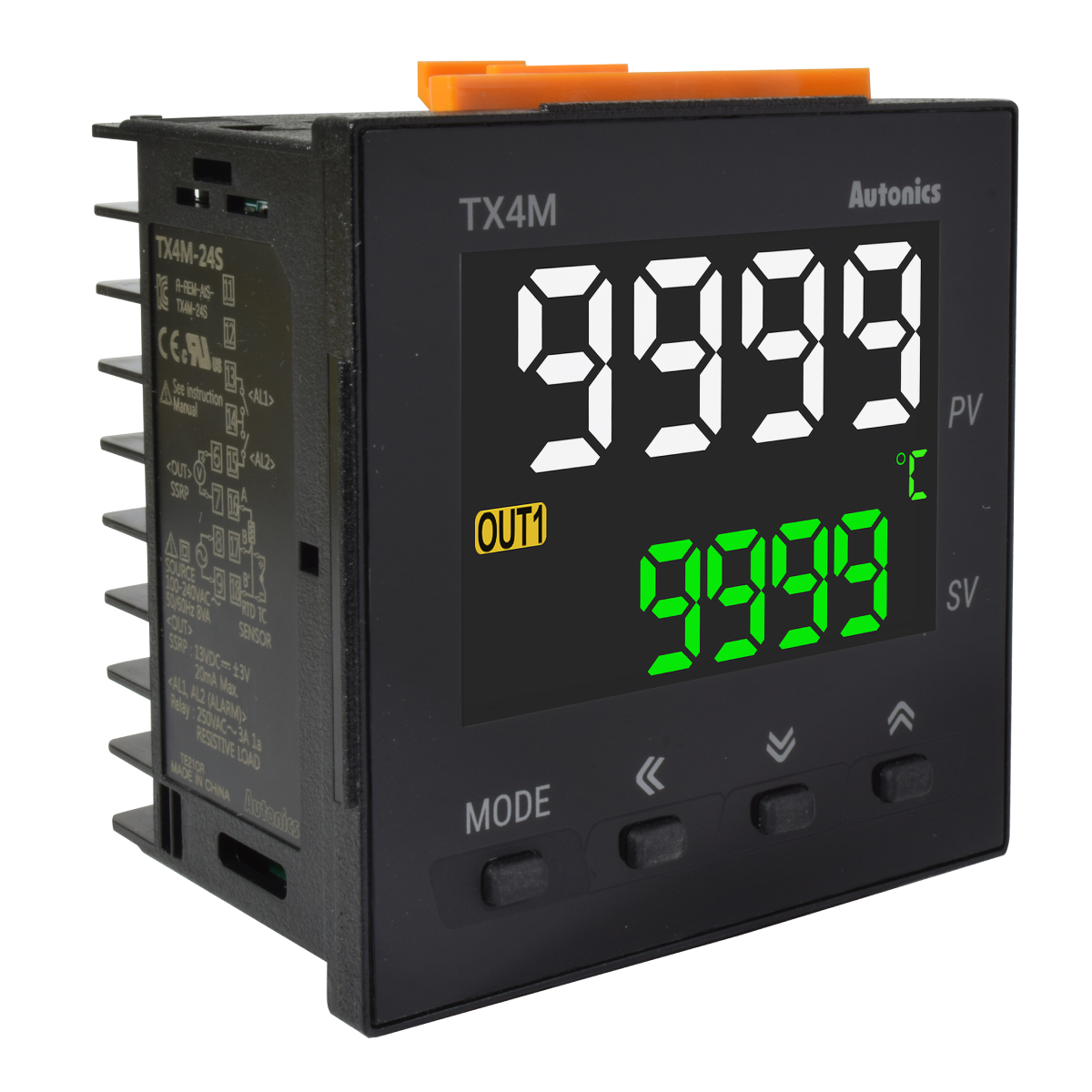

TX4M-24S

TX4M-24S
Series: TX4M
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Control outputs: 1 SSR
Auxiliar digital outputs: 2 SPST relay
Number of setpoints: 1
Control type: ON-OFF, P, PI, PD, PID
Dimensions: H 72 x W 72mm

 COP526,218
Sin Stock
